ADR-1 Reader for RAD-60 Dosimeters

ADR-1 Reader for RAD-60 Dosimeters
Item Number :
343-605

ADR-1 Reader for RAD-60 Dosimeters.

Details

Open Section I: Dosimeters, Monitors, Meters, Check Source & Lead Cases(PDF) to view related products. (Opens in a new tab)

ADR-1 Reader for RAD-60 Dosimeters.

Connects to any PC with a serial port using Windows 95™ or greater.

With the ADR-1 Reader for RAD-60 Dosimeters the user can:

• Change Dosimeter Settings.

• Perform Calibration.

• Assign Dosimeters.

• Assign a User ID and Name.

Features:

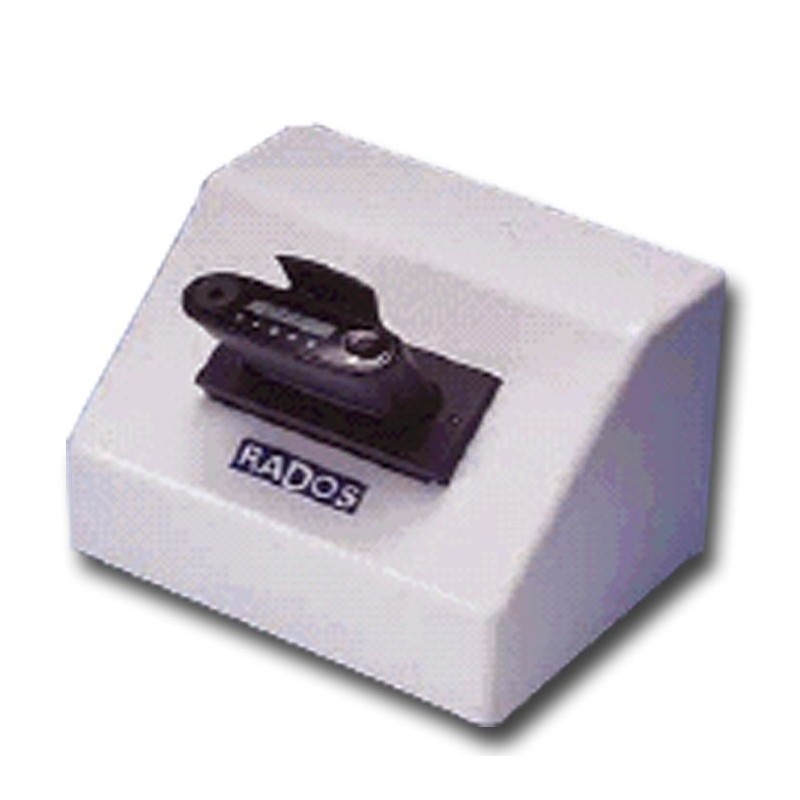

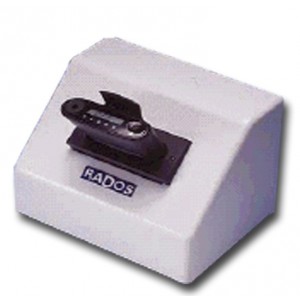

The ADR-1 dosimeter reader head is a robust, yet compact, noncontact dosimeter reader for the RAD-60 dosimeters.

• Compatible with RAD-60 series electronic dosimeters

• Indicator LED for dosimeter communication

• Desktop and wall mounting as standard

• Delivered with Rs-232 cable and universal input

• Voltage DC power supply

• Networkable

• Badge reader, security gate interface

• Stand alone emergency mode with data memory

• The Reader connects to any PC via 9 Pin Serial port.

ADR-1 Reader for RAD-60 Dosimeters Includes:

• ADR-1 Reader

• Configuration Software

• Manual

Specifications:
Dimensions:
5.9” W x 4.5” H x 4.5" D (15 x 11.5 x11.5 cm)
Weight: 4.2 lb (1.9 kg)
Power Supply: +12 VDC, max. 200mA
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Operating Humidity: 90% RH (non-condensing)
