CT / PET Table Insert for GE, with Foam Rubber Edging, and Magnification and Density Rods
683-310
CT / PET Table Insert for GE, with Foam Rubber Edging, and Magnification and Density Rods
CT / PET Table Insert for GE, with Foam Rubber Edging, and Magnification and Density Rods
CT / PET Table Insert for GE, with Foam Rubber Edging, and Magnification and Density Rods
The ideal CT Image for radiation therapy treatment planning should have the patient on a flat table, magnification indicators, and density markers.

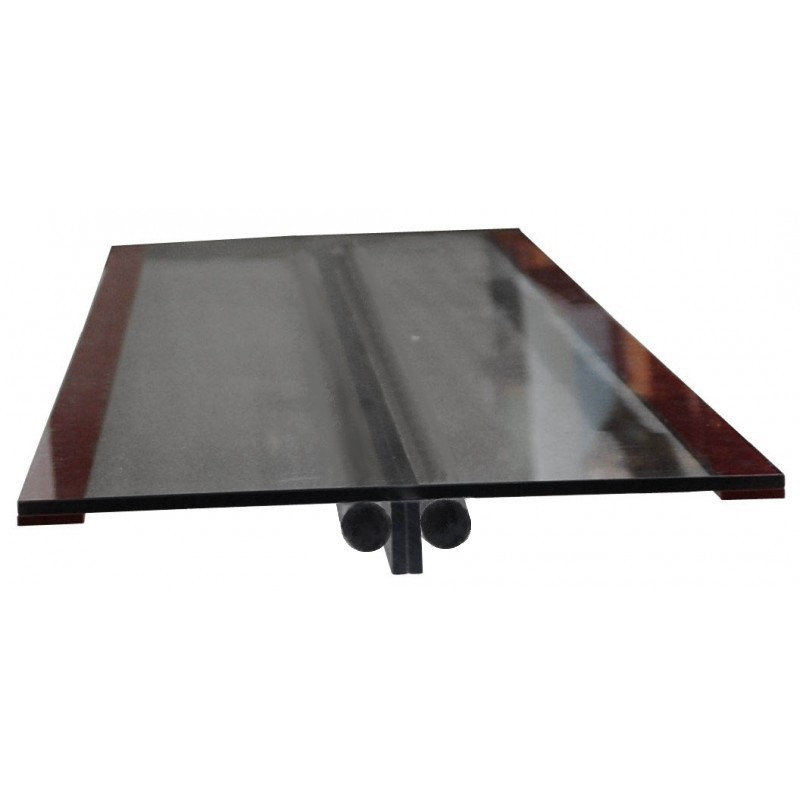

The Radiation Products Design CT/PET Table Insert is made of 3/8" (0.97 cm) clear polycarbonate. The insert measures 84" (213.5 cm) long and the width is custom made to fit the CT or PET Table. A center support runs the length of the insert to prevent any sag.
The CT/PET Table Insert with foam rubber edges will sit on top of the edges of the curved CT bed.
Magnification and Density Rods
The bottom of the CT/PET Table Insert has two 1/8" (3.31 mm) diameter aluminum rods, spaced 30 cm apart that run the length of the insert and are used for magnification measurements.
A 1" (2.54 cm) diameter polystyrene rod and a 1" (2.54 cm) diameter acrylic rod are placed on either side of the center support. Both these rods run 72" (183 cm) along the bottom of the insert. These rods provide a reference for density checks.
Specifications
Table Density:
Polycarbonate: 1.2 g/cm3
Rod Density:
Acrylic: 1.185 g/cm3
Polystyrene: 1.05 g/cm3
Size: 84" L x 3/8" T (213.4 x 0.97 cm)
Weight: 55 lb (25 kg)
Order Processing Information
• Provide contact information, name, phone number and email
• Prior to manufacturing an information sheet requesting dimensions will be sent to the contact to fill out
• Information sheet is also located under the documents tab for this product
