Electron Mini-Cone, 4.5cm Inside Diameter, 45 Degree

Electron Mini-Cone, 4.5cm Inside Diameter, 45 Degree
Electron Mini-Cone, 4.5cm Inside Diameter, 45 Degree
Item Number :
895-44545

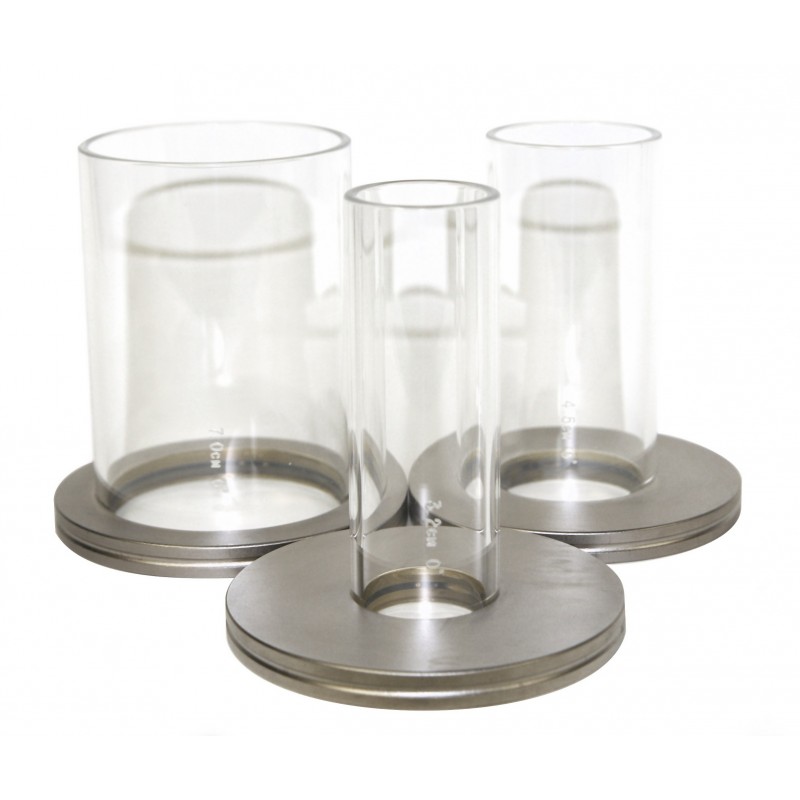

Electron Mini-Cone, 4.5 cm Inside Diameter, 45°.

Details

Electron Mini-Cone, 4.5 cm Inside Diameter, 45°.

The Electron Mini-Cones are made of 0.32 cm clear acrylic tubing and affixed to a 0.96 cm thick x 10.2 cm diameter nickel chrome brass ring base.  The Electron Mini-Cones are available in diameters of 1.9 cm, 3.2 cm, 4.5 cm, 5.7 cm and 7.0 cm and can have angles of 15°, 30°, 45°, and 0° on the bottom of the Electron Mini-Cone.


Specifications
Energy Range:  6 MeV to 12 MeV, Transmission at 12 MeV is less than 5% outside of cone
Brass Density:  8.515 g/cm3
Acrylic Density:  1.18 g/cm3

Electron Mini-Cone
Base:
  0.96 cm (3/8") Thick x 10.2 cm (4") Diameter Brass Ring
Material:  0.32 cm (1/8") Clear Acrylic
Sterilization:  Gas - Sterrad NX-100
