Siemens Mevatron 6
713-236

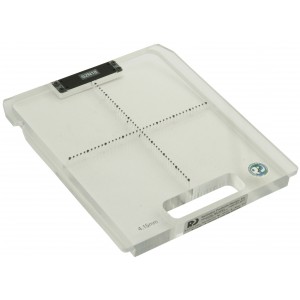

Siemens Mevatron 6 Graticule for Wedge Slot
Siemens Mevatron 6 Graticule for Wedge Slot
Siemens Mevatron 6 Graticule for Wedge Slot
The Accelerator Localizing Cross Trays have divergent tungsten pins 1/16" and 3/32" in diameter x 1/2" long (0.16 and 0.24 x 1.27 cm). They are spaced 1 cm apart in four quadrants at isocenter. Every fifth pin is 3/32" (0.24 cm) diameter, which makes for easy counting. The small dots prevent any obscuring of the film viewing, yet allow easy measurements.
Information Needed To Order
• Machine Manufacturer and Model
• Type of Coding
• Target to bottom of wedge tray slot in centimeters
• Contact Information
Specifications
Acrylic Tray Density: 1.185 g/cm3
Note: Localizing Cross Trays can be manufactured for any accelerator.
