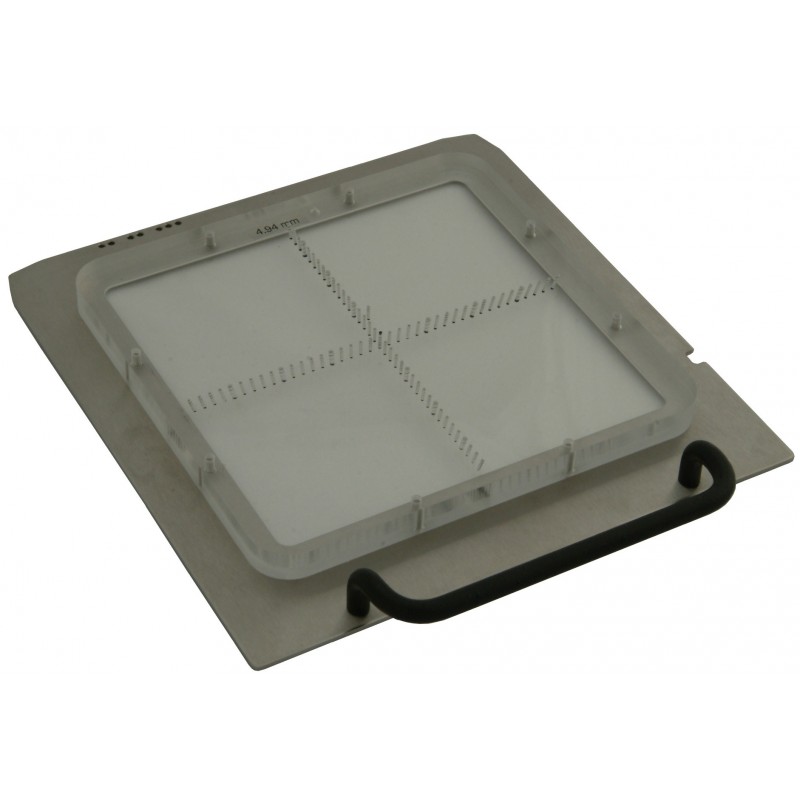

Varian MLC with Optical Coding 30 x 30 cm

Varian MLC with Optical Coding 30 x 30 cm
Varian MLC with Optical Coding 30 x 30 cm
Item Number :
713-121

Varian (MLC) Graticule, for Wedge Slot with Optical Coding and a Field Size of 30 x 30 cm.

Details

Open Section M: Imaging, Film, Graticules, Densitometers, Anatomical Drawings(PDF) to view related products. (Opens in a new tab)

Varian (MLC) Graticule, for Wedge Slot with Optical Coding and a Field Size of 30 x 30 cm.
Distance: 57.6 cm

The Accelerator Localizing Cross Trays have divergent tungsten pins 1/16" and 3/32" in diameter x 1/2" long (0.16 and 0.24 x 1.27 cm).  They are spaced 1 cm apart in four quadrants at isocenter.  Every fifth pin is 3/32" (0.24 cm) diameter, which makes for easy counting.  The small dots prevent any obscuring of the film viewing, yet allow easy measurements. The acrylic graticule fits into the metal tray so the graticule will not shift off center even if bumped.

Information Needed To Order
•  Machine Manufacturer and Model
•  Type of Coding
•  Target to bottom of wedge tray slot in centimeters
•  Contact Information

Specifications
Acrylic Tray Density:  1.185 g/cm3

Graticules for other Varian machines are available.  Please provide contact information when placing and order.
