Acrylic Phantom

Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

Acrylic Phantom.

The standard chamber hole will fit the following chambers:
Capintec - PR-06G
PTW - 23333 / 233633 / 30001 / 30010 / 30002 / 30011 / 30004, 30012, 30006 / 30013
Bicron - NE2571, 2505/3 A or B
Nuclear Associates - 30-351, 30-352 and 30-361

Chamber holes other than the standard are available upon request.  Please specify chamber to be used in phantom.  To accommodate a 2nd chamber, one of the 1” plates can be machined to fit the chamber.

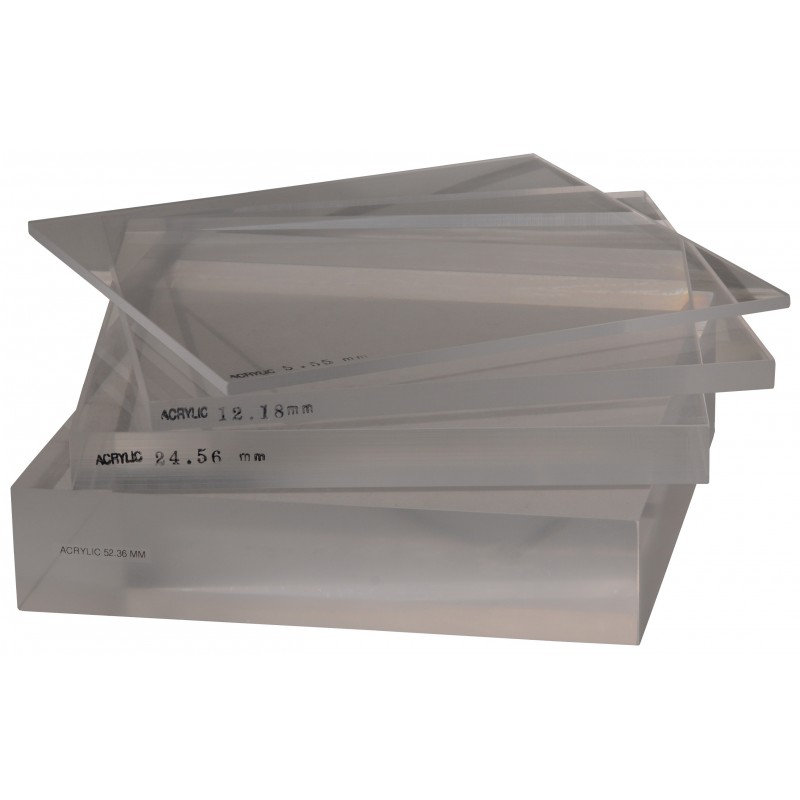

The Acrylic Phantom consists of:
(1) 1/32” (0.80 mm) x 25 cm sq acrylic sheet

(1) 1/16” (1.57 mm) x 25 cm sq acrylic sheet

(1) 1/8” (3.43 mm) x 25 cm sq acrylic sheet

(1) 1/4” (6.30 mm) x 25 cm sq acrylic sheet

(1) 1/2” (12.7 mm) x 25 cm sq acrylic sheet

(8) 1” (25 mm) x 25 cm sq acrylic sheet

(1) 1” (25 mm) x 25 cm sq with farmer chamber hole

Markings
All of the Acrylic Sheets are marked “ACRYLIC” and state the material thickness with a special black ink that is etched into the acrylic.

Specifications
Material:  Clear acrylic
Density:  1.17 to 1.20 g/cm3
Size:   25 cm sq x approx. 25 cm T.
