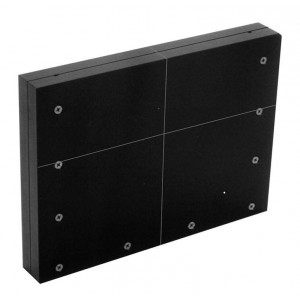

Black Acrylic, Film Dosimetry Cassette, 30 x 30cm

Black Acrylic, Film Dosimetry Cassette, 30 x 30cm
Black Acrylic, Film Dosimetry Cassette, 30 x 30cm
Item Number :
623-030

Black Acrylic, Film Dosimetry Cassette, 30 x 30 cm.

Details

On sale On sale while
supplies last
$200.00

Black Acrylic, Film Dosimetry Cassette, 30 x 30 cm.

The two piece, Film Dosimetry Cassette keeps the edge of the film at the surface of the cassette.  A light hole at the bottom marks the film orientation.

To insert film loosen screws 1/2 turn and slide film in.  The film will stop at the stoppers between the two pieces.  The edge of the film should be flush with top edge of the cassette.  Tighten the screws.  To remove film, loosen screws, turn the cassette over and the film will slide out.

The Film Dosimetry Cassette is light sealed with rubber tubing on 3 sides.  The film entry side must be covered with black tape to prevent light exposure.

The Film Dosimetry Cassette can be used in any plane:  parallel, perpendicular or angled.

Scribing is available upon request.  Custom thicknesses are available upon request.

Specifications
Density:  1.17 to 1.20 g/cm3
Size:  30 W x 30 L x 2.4 cm Thick
Film Size:  8” x 10”
