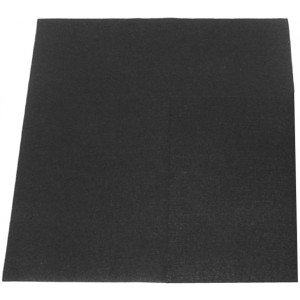

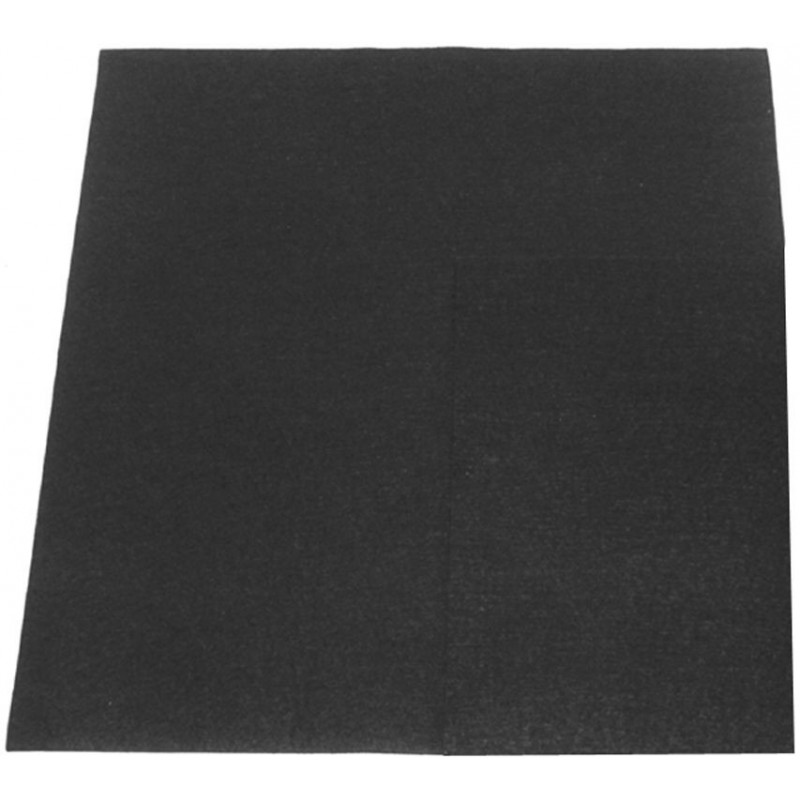

Lead Intensifying Screen for Radiotherapy 10" x 12" x .005" T

Lead Intensifying Screen for Radiotherapy 10" x 12" x .005" T
Lead Intensifying Screen for Radiotherapy 10" x 12" x .005" T
Item Number :
114-205

Lead Intensifying Screen for Radiotherapy 10" x 12" x .005" T

Details

On sale On sale while
supplies last
$17.00

Lead Intensifying Screens for Radiotherapy

Lead Intensifying Screens are primarily used to intensify the radiographic image.  They are generally used in pairs by placing the x-ray film between the bare lead surfaces of the screens. Each screen surface is protected with a semitransparent coating, which must be peeled off prior to use.  For maintaining long-lasting screens it is highly recommended that a cassette be used.

Specifications:
Screen Size: 10" x 12"
Screen Thickness: 0.13 mm (.005")
Weight: 4 oz (0.1 kg)

Screen Recommendation
  Energy                    Front                    Rear
Cobalt 60             0.25 mm (.010")     0.13 mm (.005")
4 MeV - 6 MeV      0.50 mm (.020")     0.25 mm (.010")
10 MeV - Up         1.00 mm (.040")     0.50 mm (.020")

For Screen Installation (Item 112-050) and Screen Cutting (Item 114-930) Contact RPDinc.
