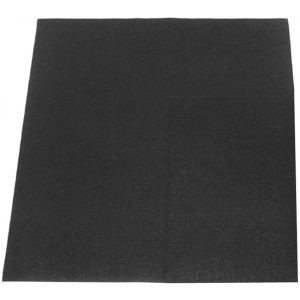

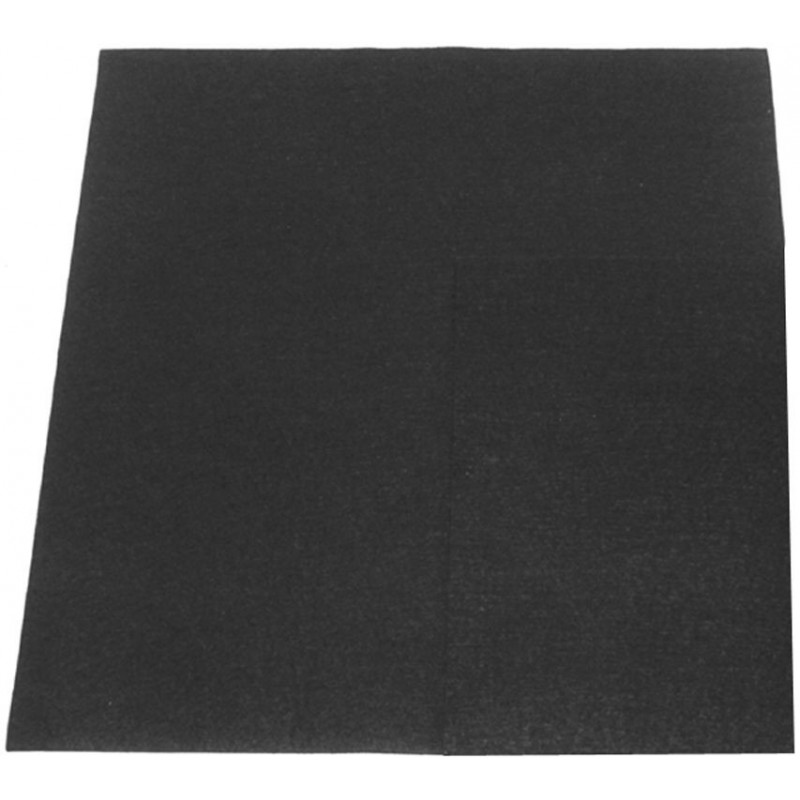

Lead Intensifying Screen for Radiotherapy, 14" x 17" x .005" T
114-705
Lead Intensifying Screen for Radiotherapy, 14" x 17" x .005" T
Lead Intensifying Screen for Radiotherapy, 14" x 17" x .005" T
Lead Intensifying Screens for Radiotherapy
Lead Intensifying Screens are primarily used to intensify the radiographic image. They are generally used in pairs by placing the x-ray film between the bare lead surfaces of the screens. Each screen surface is protected with a semitransparent coating, which must be peeled off prior to use. For maintaining long-lasting screens it is highly recommended that a cassette be used.
Specifications:
Screen Size: 14" x 17"
Screen Thickness: 0.13 mm (.005")
Weight: 7 oz (0.2 kg)
Screen Recommendation
Energy Front Rear
Cobalt 60 0.25 mm (.010") 0.13 mm (.005")
4 MeV - 6 MeV 0.50 mm (.020") 0.25 mm (.010")
10 MeV - Up 1.00 mm (.040") 0.50 mm (.020")
For Screen Installation (Item 112-050) and Screen Cutting (Item 114-930) Contact RPDinc.
