Leveling Plate, 27 Inch Wide, for the 27.75 Inch Wide Hydraulic Scissor Lift Table

Leveling Plate, 27 Inch Wide, for the 27.75 Inch Wide Hydraulic Scissor Lift Table
Leveling Plate, 27 Inch Wide, for the 27.75 Inch Wide Hydraulic Scissor Lift Table
Item Number :
693-3627

Leveling Plate, 27" Wide, for the 27.75" Wide Hydraulic Scissor Lift Table.

Details

Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

Leveling Plate, 27" Wide, for the 27.75" Wide Hydraulic Scissor Lift Table.

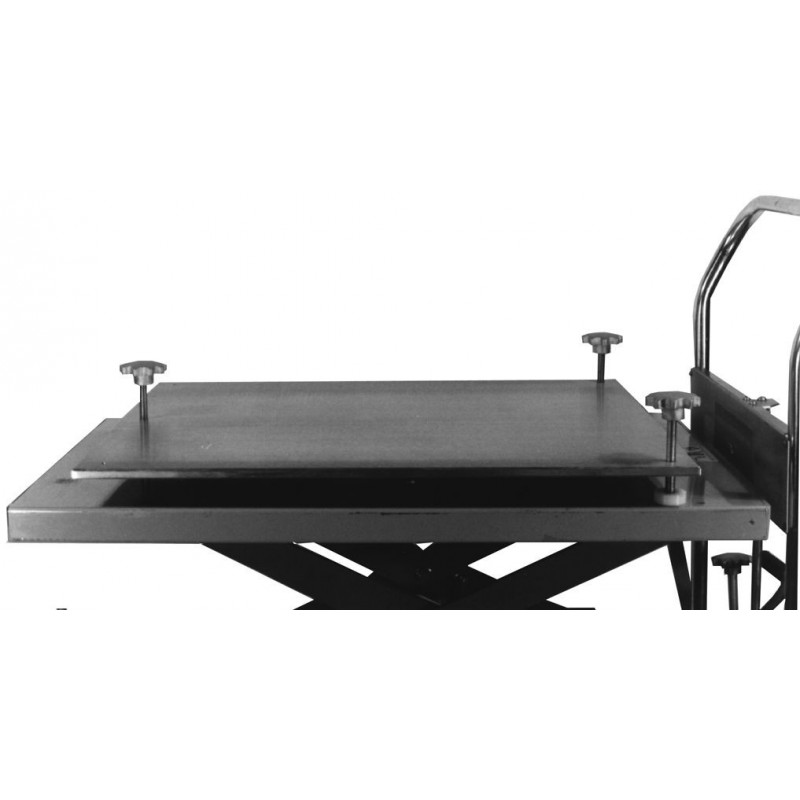

The aluminum leveling plate utilizes three leveling points with location pads that fit into the pre-drilled holes on the platform of the hydraulic-scissors lift table.  The three hand adjustable threaded leveling legs go through the holes in the leveling plate and rest inside the location pads.

Included with the leveling plate is a pair of rubber feet for added stabilization.  These feet will go through the tapped holes on either side of the third leg of the leveling plate.

Specifications
Height Adjustment:
  1/2" to 3 3/4"
Plate Size:  27” W x 35 7/8" L x 1/2" T
Weight:  60 lb (27.27 kg)
Finish:  White polyurethane enamel
