Multi Density Holder Insert Only, for ISIS Phantom Cube

Multi Density Holder Insert Only, for ISIS Phantom Cube
Item Number :
681-107

Multi Density Holder Insert Only, for ISIS Phantom Cube.

Details

Open Section U: Quality Assurance Devices, GARD, ISIS, Couch Cubes(PDF) to view related products. (Opens in a new tab)

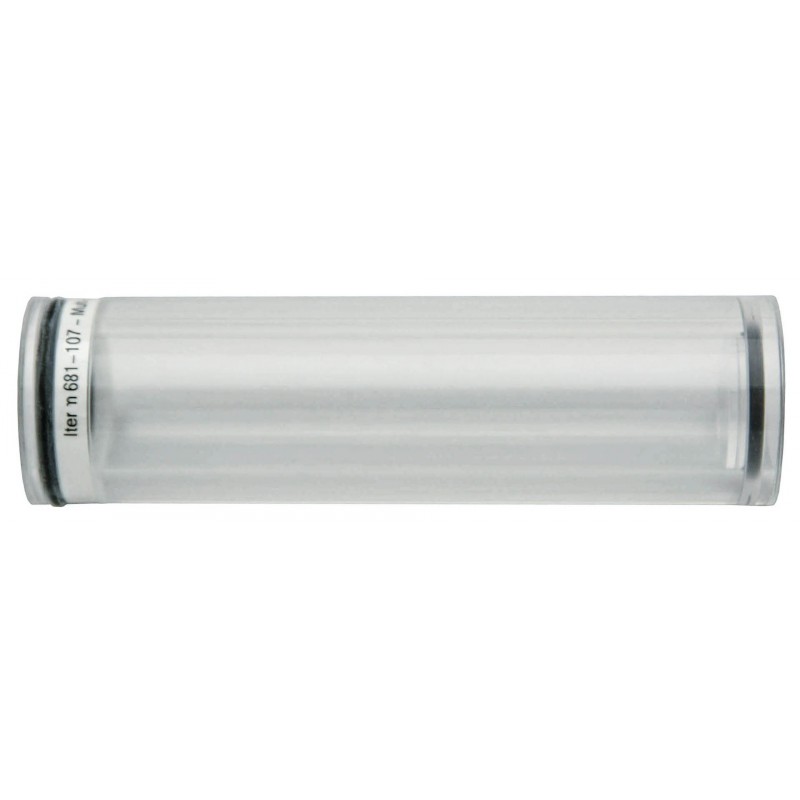

Multi Density Holder Insert Only, for ISIS Phantom Cube.

The Multi Density holder insert accommodates 8 density plugs (2.5 cm diameter x 1.5 cm thick).  An acrylic end plug and o-ring on each end of the insert holds the density plugs in place.  This insert is custom made.  The customer must specify density plug material needed and the order of placement in the insert when ordering.

• All inserts are 4 cm in diameter and 14 cm long.

• They are made of clear acrylic with a rubber o-ring at one end to keep the insert snug in the phantom cube.

• Each insert is labeled with the item number, description and density.

Density plugs are sold separately.

Item #

Density Plug

Physical Density

gm/cm³

Electron Density

cc x 10²³

Electron Density

Relative to H₂O

681-107

Insert, Multi-Density Holder Only

681-107-6

Lung Inhale

0.195 ± 0.20

.634

0.190

681-107-7

Lung Exhale

0.495 ± 0.020

1.632

0.489

681-107-8

Bone 800 mg/cc

1.609 ± 0.01

4.862

1.456

681-107-9

Water

1.008 ± 0.01

3.346

1.002

681-107-10

Adipose (Fat)

0.967 ± 0.01

3.170

0.949

681-107-11

Breast (50% Gland / 50% Adipose)

0.991 ± 0.01

3.261

0.976

681-107-12

Muscle

1.062 ± 0.01

3.483

1.043

681-107-13

Liver

1.071 ± 0.01

3.516

1.052

681-107-14

 *Trabecular Bone - 200 mg/cc

1.161 ± 0.01

3.730

1.117

681-107-15

 *Dense Bone - 1000 mg/cc

1.660 ± 0.01

5.243

1.570

681-107-16

 *Dense Bone - 1250 mg/cc

1.830 ± 0.01

5.718

1.712

681-107-17

 *Dense Bone - 1500 mg/cc

2.000 ± 0.01

6.209

1.859

681-107-18

*Dense Bone - 1750 mg/cc

2.170 ± 0.01

6.698

2.005

681-107-19

*Cortical Bone

1.930 ± 0.01

5.956

1.780

681-107-20

**Titanium

4.507 ± 0.01

12.475

3.735

681-107-21

***Aluminum

2.718 ± 0.01

-

 -

* All Bone references 10 mm diameter in H2O density plug.

** Titanium references 6 mm diameter in H2O density plug.

*** Aluminum references 9.5 mm diameter in H2O density plug.
