Needle Cylinder 25mm dia., Tandem Collet, Collar Clamp

Needle Cylinder 25mm dia., Tandem Collet, Collar Clamp

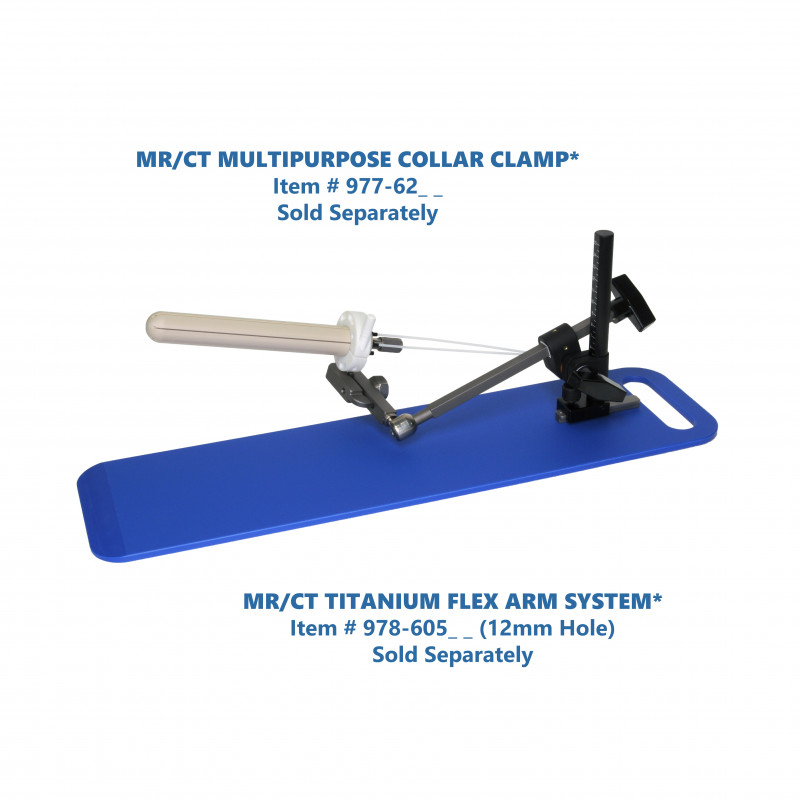

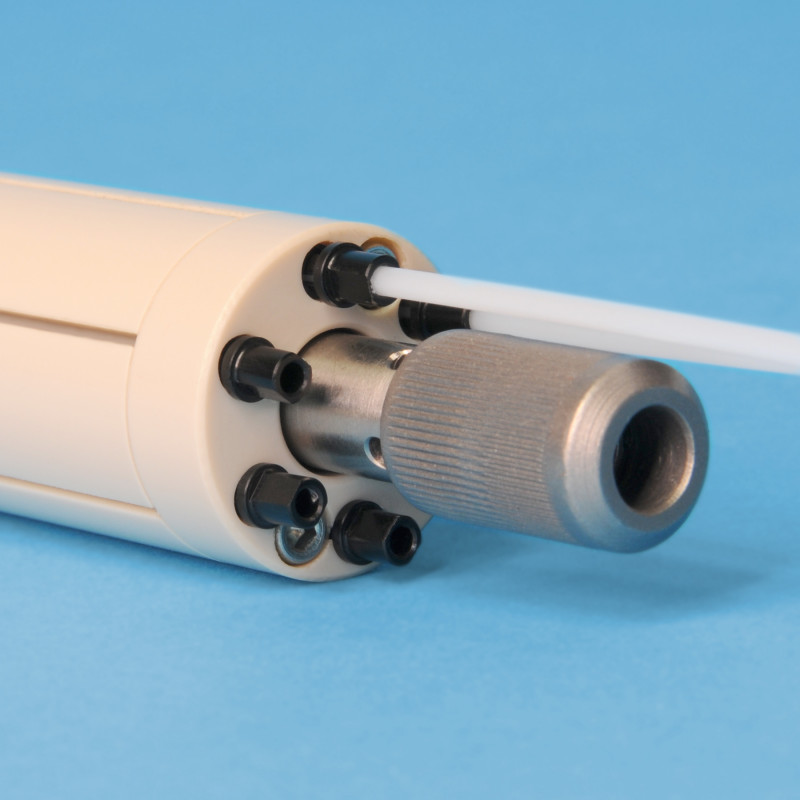

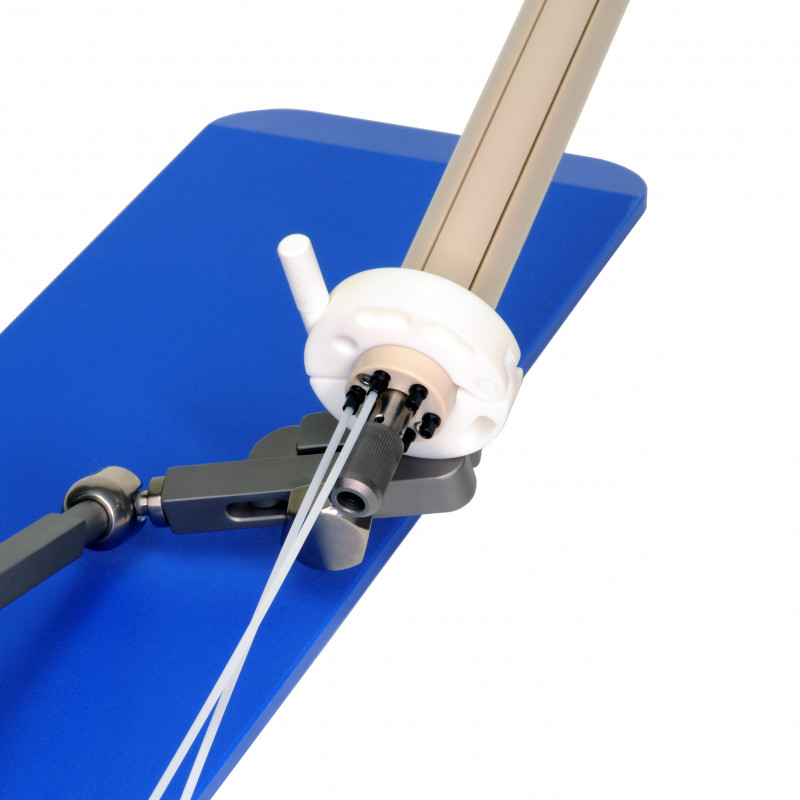

This PEEK Dome Needle/Cylinder Applicator type is used to treat a tumor mass in the vaginal frontal area with HDR. The applicator is available in a variety of outside diameters and features multiple needle slots in a diameter with easy locking needle collets. The needle slot allows access for steam sterilization. The tandem is held in place with a collet and nut assembly when used or a threaded Delrin plug can be screwed into the frontal end when not used. A Collar Clamp (See Chart) is used to support the cylinder during Treatment, MR or CT using the Titanium Flex Arm System (Item # 978-60517) or with Radiation Implant Briefs (See Chart) and Velcro®.

Includes:
Qty. 1 Needle Cylinder
Qty. 1 Tandem Collet
Qty. 1 Nut, for Tandem Collet
Qty. 6 15ga. Needle Collets
Qty. 1 Needle Collet Wrench
Qty. 1 Clamping Collar (Sized per applicator diameter)
Needles Sold Separately

Specifications
Material: FDA Compliant PEEK with Smooth Finish
Density: 1.31 g/cm3
Max Temperature Rating: 250° C, (482° F) Steam Autoclave, Using Open Slots for Sterilization
Tandem Hole Diameter: 6.63 mm (.261")
Tandem Hole Plug: Delrin, Item 977-070, Steam Autoclave 3 or 4 Minute cycles
Needle Collets 15ga.: Aluminum Anodized, Steam Autoclave 3 or 4 Minute cycles
Tandem Collet: Titanium, Steam Autoclave 3 or 4 Minute cycles
Tandem Collet Nut: Aluminum Anodized, Steam Autoclave 3 or 4 Minute cycles
Collar Clamp: Ertalyte (PET-P) (See Chart), Steam Autoclave 3 or 4 Minute cycles
MR Conditional: Product contains Aluminum and Titanium

Sizing
Sizing can be done using our Nylon Dilators with rounded and elliptical ends and a Depth Collar. Order Dilator and Depth Collar the same size as your applicator diameter. See Chart.

Accessories

Tandem Needle Hole Adapter (Item # 977-6802)

MR/CT Titanium Flex Arm System (Item # 978-605_ _)

Radiation Implant Briefs (Item # 970-05_)

White Velcro® Strapping (3/8", 25 yds) (Item # 977-600)

Other Sizes Available

Needle Cylinder 20mm dia., Tandem Collet, Collar Clamp (Item # 977-620)
Needle Cylinder 25mm dia., Tandem Collet, Collar Clamp (Item # 977-625)
Needle Cylinder 30mm dia., Tandem Collet, Collar Clamp (Item # 977-630)
Needle Cylinder 35mm dia., Tandem Collet, Collar Clamp (Item # 977-635)
Needle Cylinder 40mm dia., Tandem Collet, Collar Clamp (Item # 977-640)
