Plastic Water Calibration Check Phantom, Model 665-520

Plastic Water 15 cm Cube Calibration Check Phantom, for Wellhofer FC65-G, Photon Hole No Build-Up Cap, Electron Hole 1.5 cm Depth No Build-Up Cap.

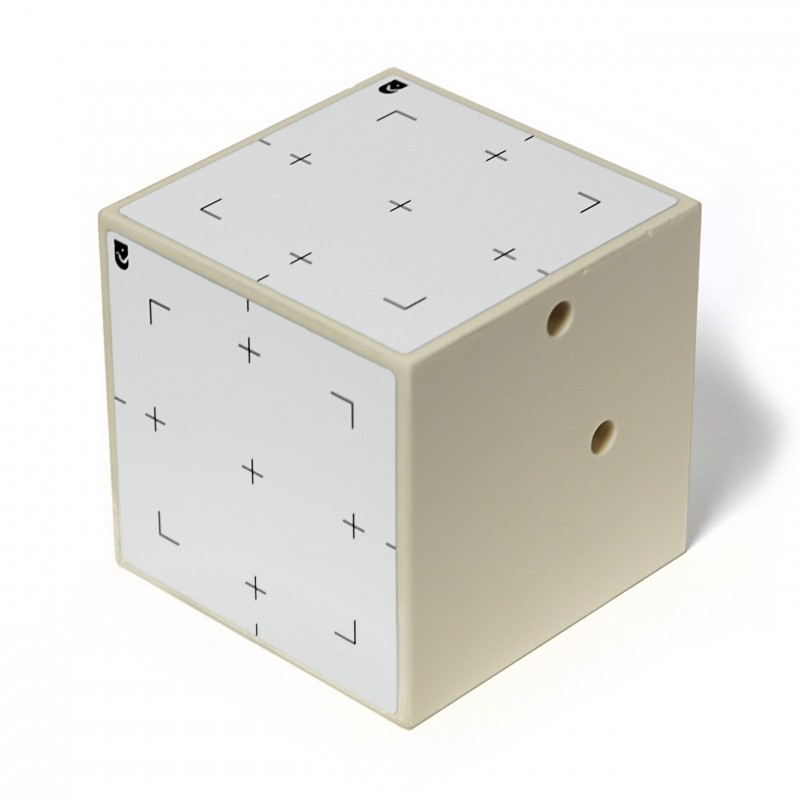

The calibration check phantoms are solid 15 cm cubes.  The photon hole is placed 5 cm from one side and therefore is 10 cm from the other side.  There are reticules on three sides of the cube defining a 10 cm² field.

• Photon measurements at 5 and 10 cm depth

• Electron measurements at 1 cm or 1.5 cm depth

• Compact and economical

The phantom cubes can be custom drilled to meet customer's specifications.  Please provide name and phone number of contact person.

Specifications
Chamber:  Wellhofer FC65-G
Photon Chamber Hole:  No Build-up Cap
Electron Chamber Hole:  1.5 cm Depth, No Build-up Cap
Acrylic Density: 1.03g/cm³
