Optional Remote Alarm Unit with 100 Foot Cable for Radiation Area Monitor, Model 7008 RT

Optional Remote Alarm Unit with 100 Foot Cable for Radiation Area Monitor, Model 7008 RT
Optional Remote Alarm Unit with 100 Foot Cable for Radiation Area Monitor, Model 7008 RT
Item Number :
337-111

Optional Remote Alarm Unit with 100 Foot Cable for Radiation Area Monitor, Model 7008 RT.

Note: This item is an accessory for Radiation Area Monitor, Model 7008 RT  (mcSV: Item # 337-109) (mR/h: Item # 337-110)

Details

Open Section I: Dosimeters, Monitors, Meters, Check Source & Lead Cases(PDF) to view related products. (Opens in a new tab)

Optional Remote Alarm Unit with 100 Foot Cable for Radiation Area Monitor, Model 7008 RT.

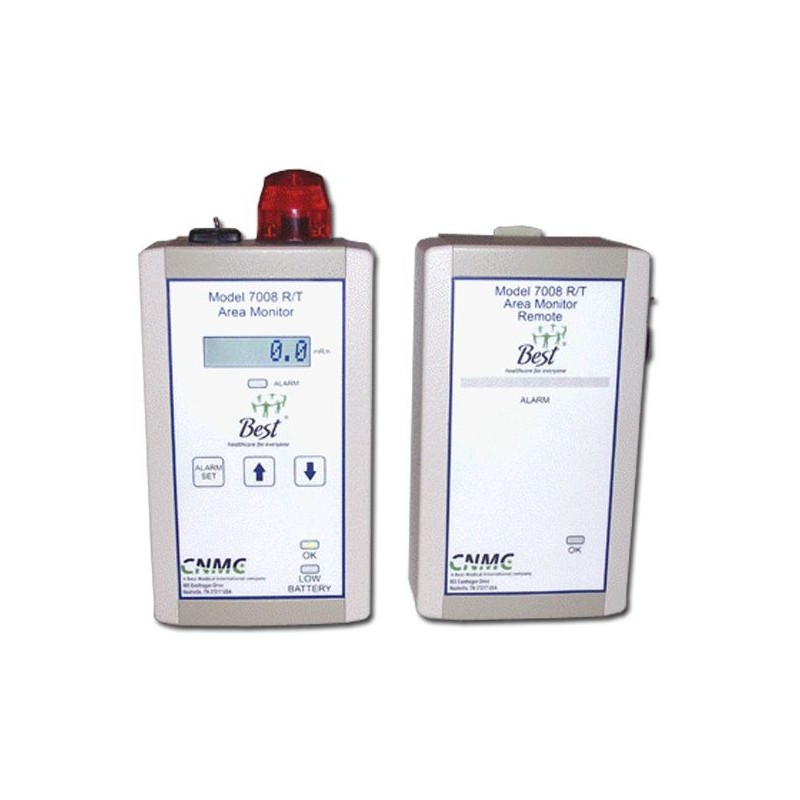

The optional Remote Alarm unit duplicates the alarm indication functions of the main unit.  It features a green status light, a red light for high alarm, and Sonalert for audible alarm with a disable switch.  Item 337-111 is supplied with a 100' (30.5 m) cable and Item 337-112 is supplied with a 50' (15.25 m) cable.  An optional 100' (30.5 m) cable is available if additional cable length is needed.

Specifications
Alarm:  Red lamp indicates, Sonalert provides audio for alarm and failure, toggle switch disables audio
Status OK:  Green light indicates correct monitor operation
Power:  95 – 230 VAC, 50/60 Hz, 12 VDC from main unit
Cable:  50' (15.25 m) or 100' (30.5 m) length cable
Dimensions:  7.6" x 4.5" x 2.7" (19.4 x 11.5 x 6.8 cm)
Weight:  1.0 lb (0.5 kg)



Note: This item is an accessory for Radiation Area Monitor, Model 7008 RT  (mcSV: Item # 337-109) (mR/h: Item # 337-110)
