Treatment Brassiere, Small, Right, Volume 300 milliliter
Features
- Basic library of 20 left and 20 right ipsilateral cups
- Applicable to most patients
- Repeatable ipsilateral breast shape and position throughout course of treatment
- Eliminates mammary folds.
- Reduces dose to lungs, heart and ribs
- Round cotton brassiere panel compresses contralateral breast and moves it as far as possible from beams

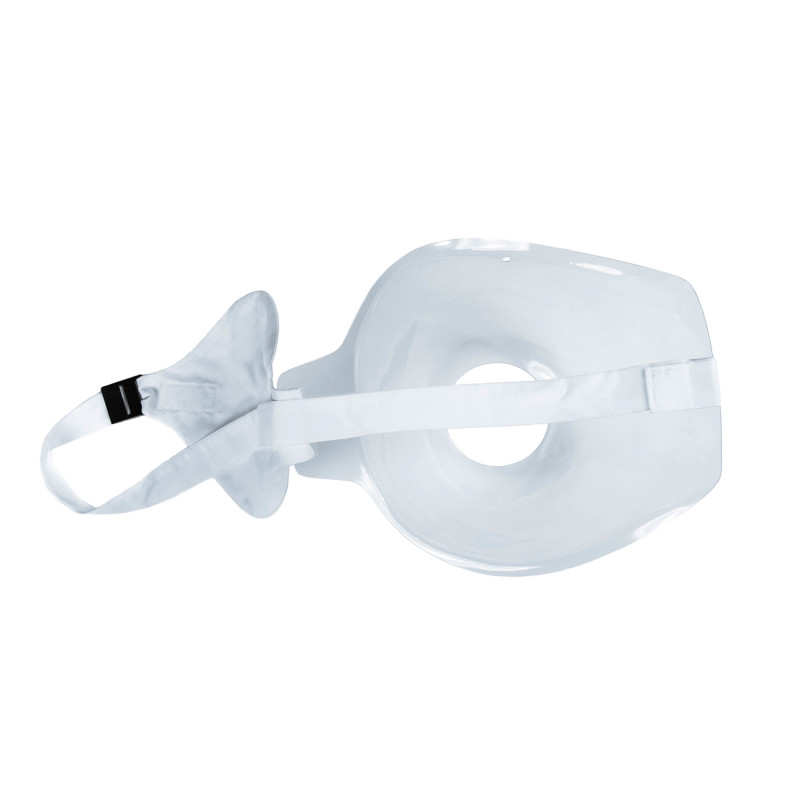

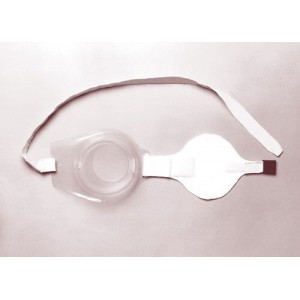

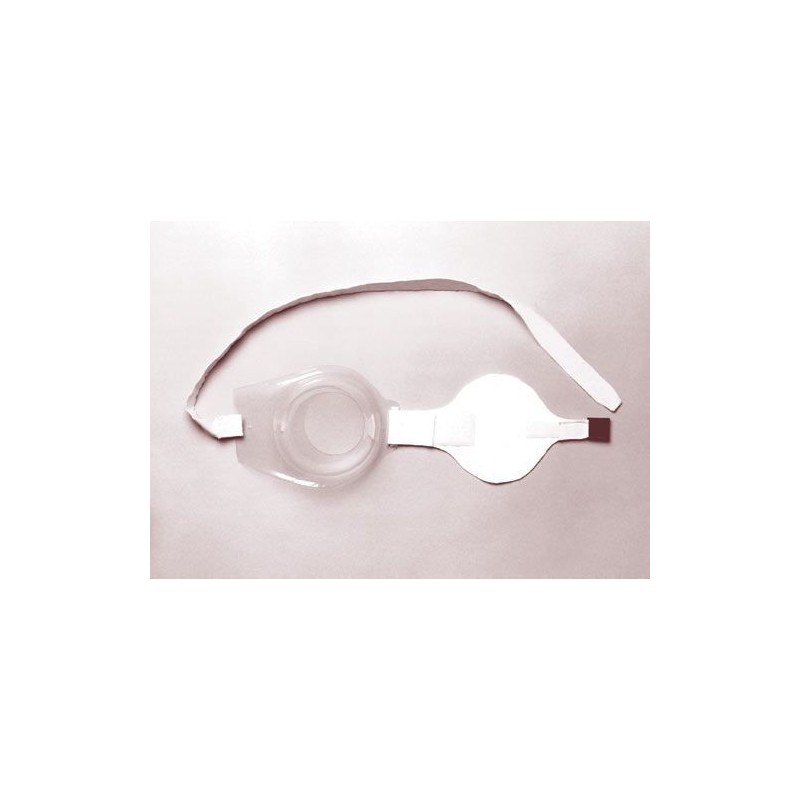

The Treatment Brassiere dependably delivers a more uniform dose every time. It reshapes the ipsilateral breast more favorably for radiation treatments and repositions the contralateral breast away from the beams. A full brassiere library of 40 cups is available in a portable caddy for convenient, organized fitting of nearly all patients.
Skin Dose
Data on increased skin dose due to the ipsilateral cup were submitted to the FDA. These data provided a comparison of skin dose increased by the Treatment Brassiere to the increase found for various thermoplastic positioning devices on the market. The skin dose due to the cup material (0.25 mm thick for small cups to about 0.63 mm thick for very large cups) was found to be substantially less than for other positioning devices. The FDS has issued a 510-(k) marketing clearance for the Treatment Brassiere.
Reduction of Unwanted Dose
The semi-rigid, transparent brassiere cups reshape the ipsilateral breasts to symmetrical forms which rise directly up from the chest wall. The volume of irradiated tissue decreases substantially by eliminating mammary folds, and the unwanted radiation to the contralateral breast, heart, lungs, and ribs is greatly reduced. The dose distribution in the breast becomes more uniform.
Repeatability of Position
The ipsilateral cup is positioned repeatably on the patient by markings made on the patient's skin through small holes at the medial, lateral, and superior aspects of the cup.
Increased Flexibility of Fitting By Truncation of Cups
A Pattern and then a cup are made of the reshaped breast, but the anterior portion of the cup is cut off. These truncated cups permit the fitting of breasts of moderately different volumes into the same cup, while maintaining full skin-sparing in the most sensitive area.
Contralateral Breast Shielding
The fabric covering which compresses the contralateral breast affords a base for a lead shield to reduce scatter dose. A 0.015 in. (0.38 mm) sheet of lead is easily formed by hand into a cup which can be placed over the breast when the patient is supine and which remains in place by gravity. The plies substantially reduce scatter dose to the contralateral breast. However, shielding must be used judiciously if primary beams pass through it.
Cup Selection
Cups are divided into four groups corresponding to small thoraxes (chest breadths from 27 to 32 cm), medium thoraxes (32 to 36 cm), large thoraxes (36 to 42 cm), and extra large thoraxes (over 42 cm).
The proper cup is selected for a new patient by measuring her chest breadth when supine and while wearing her clothing brassiere. This indicates the group from which the best fitting cup will be found. The clothing brassiere size is a rough guide to the first cup to be tried. Thereafter larger or smaller cups will be tested to find the best cup. (Note that there is poor correlation between the brassiere size and breast volume of a patient). L or R marks on cups, indicate left or right sides. Left and right cups are not interchangeable.
Sanitation
Although the possibility of cross-contamination is remote, it can be eliminated almost completely by lining cups with Saran wrap while the proper cup size is being selected.
Users have recommended that cups be dedicated to the same patient throughout the course of treatment, after which it is to be discarded. This eliminates further need for the Saran wrap, and there is no risk of cross contamination from cups.
A New Level of Quality Assurance
Planned breast treatments are essentially predictive. Every link in the chain connecting dose prescription to dose distribution must be accurate, or have only small, off-setting errors. However, a patient's dose distribution within the ipsilateral breast and thorax cannot be measured.
The treatment planning system, therapy machines, patient positioning, human performance, and many other factors cannot be checked as a whole, because there is no clinically-feasible method for comprehensive dose measurements within the ipsilateral breast and thorax.
The Treatment Brassiere serves another extremely important function, in addition to improving treatments. By standardizing breast contours and almost eliminating mobility during the course of treatment, it becomes possible to accurately represent the treated breast of a patient by a tissue-equivalent phantom breast. Consequently, it is possible to deliver a treatment to a phantom breast which will have the same dose distribution as if delivered to a patient's corresponding breast. However, only the phantom treatment can be measured in sufficient detail for evaluation.
Reproducing and Measuring the Breast Treatment of a Patient by a Phantom
The substitute patient consists of (1) a breast, which fits precisely into a cup which, in turn, has been molded about a reshaped ipsilateral patient breast; (2) a thorax; and (3) an adaptor section molded integrally with the breast. This section is required because the breast must be fitted to a phantom that is smaller than the patient. A line is scribed to distinguish the breast proper from the adaptor (which represents chest-wall tissue).
This assembly is a fully valid substitute for a patient, except for a relatively minor factor. The adaptor section cannot duplicate completely the contours of a patient, but this section represents tissue for which doses are to be minimized; the exact magnitude of these doses is not a critical issue.
The basic cup library consists of a gradation of breast volumes divided into four groups, based upon chest breadth. Total Quality Assurance may be implemented with any selected series of breast volumes, which are based upon the volumes of the breasts of individual patients.
Specifications
Patient Side: Right
Volume: 300 milliliter
Brassiere Size: Small, Chest Breadth 27 - 32 cm
*Approximate Cup Size: B / C
*Breast sizes (volumes correlate poorly with clothing brassiere cup sizes.
Small - Chest Breadth 27-32 cm |
Item # - Patient Left |
Item # - Patient Right |
Volume |
* Approx. Cup Size |
674-100SL-200 |
674-100SR-200 |
200 ml |
A / B |
674-100SL-300 |
674-100SR-300 |
300 ml |
B / C |
674-100SL-400 |
674-100SR-400 |
400 ml |
B / C |
674-100SL-500 |
674-100SR-500 |
500 ml |
C |
674-100SL-600 |
674-100SR-600 |
600 ml |
C / D |
Medium - Chest Breadth 32-36 cm |
Item # - Patient Left |
Item # - Patient Right |
Volume |
* Approx. Cup Size |
674-100ML-250 |
674-100MR-250 |
250 ml |
B |
674-100ML-500 |
674-100MR-500 |
500 ml |
C |
674-100ML-750 |
674-100MR-750 |
750 ml |
C / D |
674-100ML-1000 |
674-100MR-1000 |
1000 ml |
D / DD |
674-100ML-1250 |
674-100MR-1250 |
1250 ml |
DD |
Large - Chest Breadth 36-42 cm |
Item # - Patient Left |
Item # - Patient Right |
Volume |
* Approx. Cup Size |
674-100LL-500 |
674-100LR-500 |
500 ml |
C |
674-100LL-750 |
674-100LR-750 |
750 ml |
C / D |
674-100LL-1000 |
674-100LR-1000 |
1000 ml |
D / DD |
674-100LL-1250 |
674-100LR-1250 |
1250 ml |
DD |
674-100LL-1500 |
674-100LR-1500 |
1500 ml |
DD / DDD |
Extra Large - Chest Breadth 42 cm - Over |
Item # - Patient Left |
Item # - Patient Right |
Volume |
* Approx. Cup Size |
674-100XLL-1000 |
674-100XLR-1000 |
1000 ml |
D / DD |
674-100XLL-1500 |
674-100XLR-1500 |
1500 ml |
DD |
674-100XLL-2000 |
674-100XLR-2000 |
2000 ml |
DD / DDD |
674-100XLL-2500 |
674-100XLR-2500 |
2500 ml |
DDD |
674-100XLL-3000 |
674-100XLR-3000 |
3000 ml |
DDD |
Individual Treatment Brassieres must be ordered in combinations of at least 3 of the same or various sizes.
