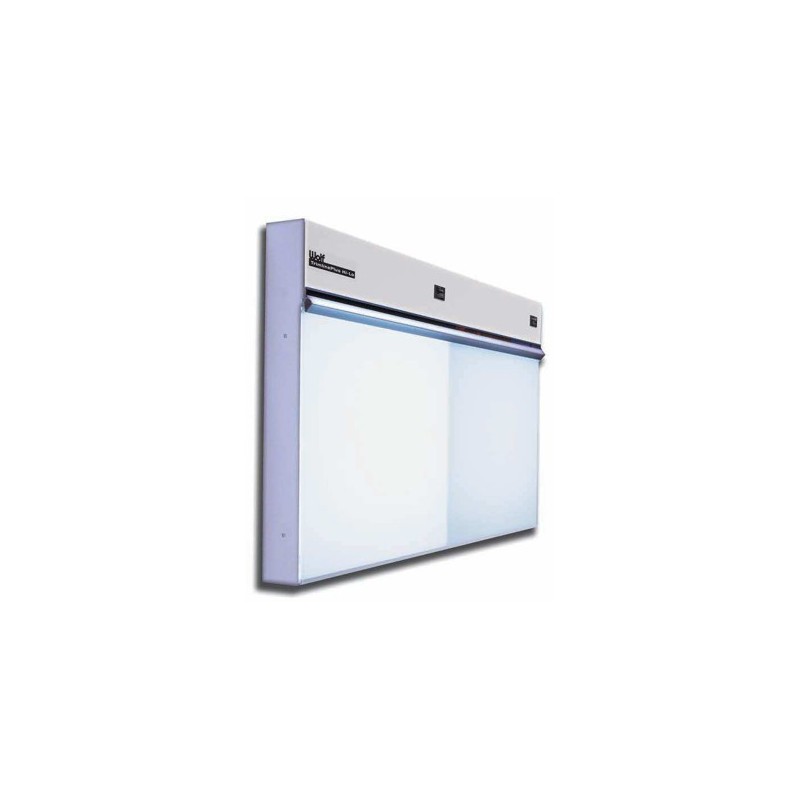

Trimline Plus Hi-Lo Illuminator, 3 over 3, Wall Mount

Features

• “E-Z”™ Bar for easy surface wall mounting
• Power: 120VAC, 60Hz

The Trimline Plus Hi-Lo™ provides two light intensities per each viewing area.  Simply press a button to change from high-intensity light (6 Bulbs, 7,250 Candela) to low intensity (4 Bulbs, 5,150 Candela).

The Trimline Plus Hi-Lo features a sleek 3.25" (8.3 cm) deep cabinet with a baked-on white polyester powder finish, a roller grip film retainer, an 8' (2.4 m) power cord with hospital grade plug.  Auto switches turn on the illuminator when a film is inserted. Cluster switches on 2-over- 2 units and up.

Mounting hardware is NOT included. Different wall surfaces require their own kind of mounting hardware. Use mounting hardware appropriate to your wall surface. For recessed wall mounting an optional recessing kit is available.

Specifications
Viewing Area:  42" x 34" (107.1 x 86.7 cm)
Dimensions:  42"W x 3.25"D x 44"H (107 x 8.3 x 112.2 cm)
Weight:  131 lbs. (60 kg)

Note:  Other Sizes Available

ISO 13485
