Large Water Phantom

Large Water Phantom
Large Water Phantom
Item Number :
691-140

Large Water Phantom

Details

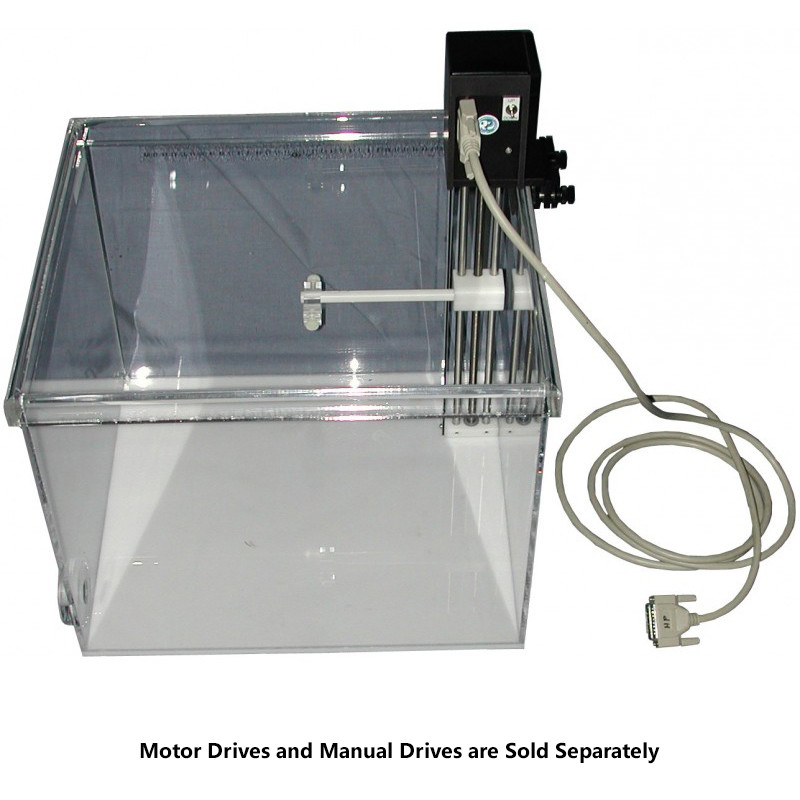

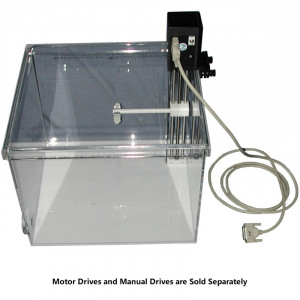

Large Water Phantom

The water phantom sides are 1/4" (0.635cm) thick clear acrylic a clear acrylic with a support rim around the top edge of tank.  The bottom is made from 3/8" (0.953cm) thick white acrylic for easy viewing of the chamber and cross hair shadows.  The water phantom has a drain valve assembly with tank plug and 5 foot (1.5m) drain hose.  Two sides of the water phantom have ±16cm scales with millimeter markings.  Also included is a separate 46cm aluminum depth scale with millimeter markings.  The depth scale rod has a flat at end to allow for easy positioning to active area.  RPD also offers water proof chamber sheaths with or without chamber tips. (Items 691-030, 691-032 and 691-033 each sold separately)



Note: Remember to subtract 1mm from depth reading when using the 46cm aluminum depth scale to measure water depth on the active chamber area of a waterproof style chambers.


Features

• White acrylic base for easy viewing

• Two sides of tank have ±16cm scales with millimeter markings

• 46cm aluminum depth scale

• Chamber support rod w/scribing, 1/2"Diameter (1.27 cm)

• Acrylic holder for a Farmer Style Chamber

• Drain valve assembly with tank plug and 5 foot (1.5m) drain hose

• Chamber Support Rod

• 5' (1.5 m) drain hose with hose connection



Drive System Options - Sold Separately

Motor Drive System 115 VAC (Item # 691-060)

Motor Drive System 230 VAC (Item # 691-061)

Manual Drive Unit for Water Phantoms (Item # 691-000)


Specifications

Inside Dimensions:  40 cm x 45 cm x 38 cm D
Gallons:  16.5
Weight:  16.5 lb (7.5 kg)
Weight When Full:  Approximately 132 lb (60 kg)
