X-Ray Plate Glass, Leaded Glass

X-Ray Plate Glass, Leaded Glass
X-Ray Plate Glass, Leaded Glass
Item Number :
3500

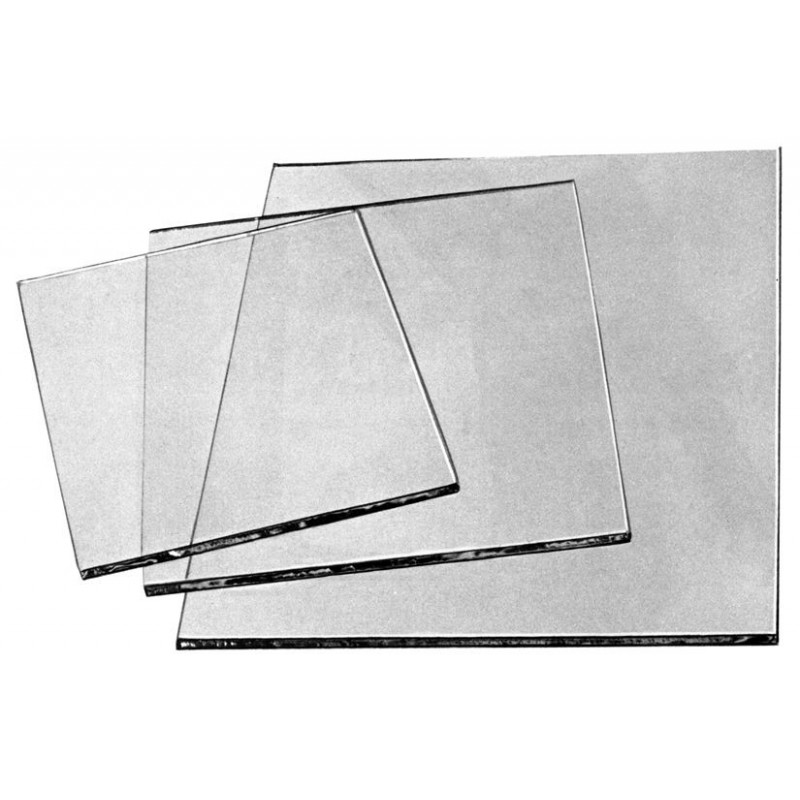

X-Ray Plate Glass, Leaded Glass.

Details

X-Ray Plate Glass, Leaded Glass.

Standard Sizes:

12 x 12" (30.48 cm x 30.48 cm)

12 x 24" (30.48 cm x 60.96 cm)

18 x 24" (45.72 cm x 60.96 cm)

18 x 48" (45.72 cm x 121.92 cm)

24 x 24" (60.96 cm x 60.96 cm)

24 x 30" (60.96 cm x 76.20 cm)

24 x 36" (60.96 cm x 91.44 cm)

24 x 48" (60.96 cm x 121.92 cm)

32 x 40" (81.28 cm x 101.6 cm)

36 x 48" (91.44 cm x 121.92 cm)

36 x 60" (91.44 cm x 152.4 cm)

36 x 72" (91.44 cm x 182.88 cm)

36 x 84" (91.44 cm x 213.36 cm)

48 x 48" (121.92 cm x 121.92 cm)

48 x 60" (121.92 cm x 152.4 cm)

48 x 72" (121.92 cm x 182.88 cm)

48 x 84" (121.92 cm x 213.36 cm)

48 x 96" (121.92 cm x 243.84 cm)

72 x 96" (182.88 cm x 243.84 cm)

Custom sizes must be ordered in a quantity of 10 or more.


Thickness:  1/4”, 1/2”, 3/4”
Lead Equivalency at 100 KV (Nominal):  2.0 mm, 3.7 mm, 5.7 mm
Density (g/cm3):  4.8

Thickness:
3/4”, 1”
Lead Equivalency at 100 KV (Nominal):  7.7 mm, 10 mm
Density (g/cm3):  6.2

Thickness (mm)

6.35 mm

12.7 mm

19.05 mm

19.05 mm

25.4 mm

Thickness (in)

¼”

½”

¾”

¾”

1”

Lead Equivalency at 100 KV (Nominal)

2.0 mm

3.7 mm

5.7 mm

7.7 mm

10 mm

Density (gm/cm³)

4.8

6.2



Please state the following when placing an order:

1: Size of Material*

2: Radiation Level to be Shielded

3: Lead Equivalency

4: Dimensions and Tolerences

5: Optional Polished Edges

6: Quantity


* Custom sizes must be ordered in a quantity of 10 or more.
