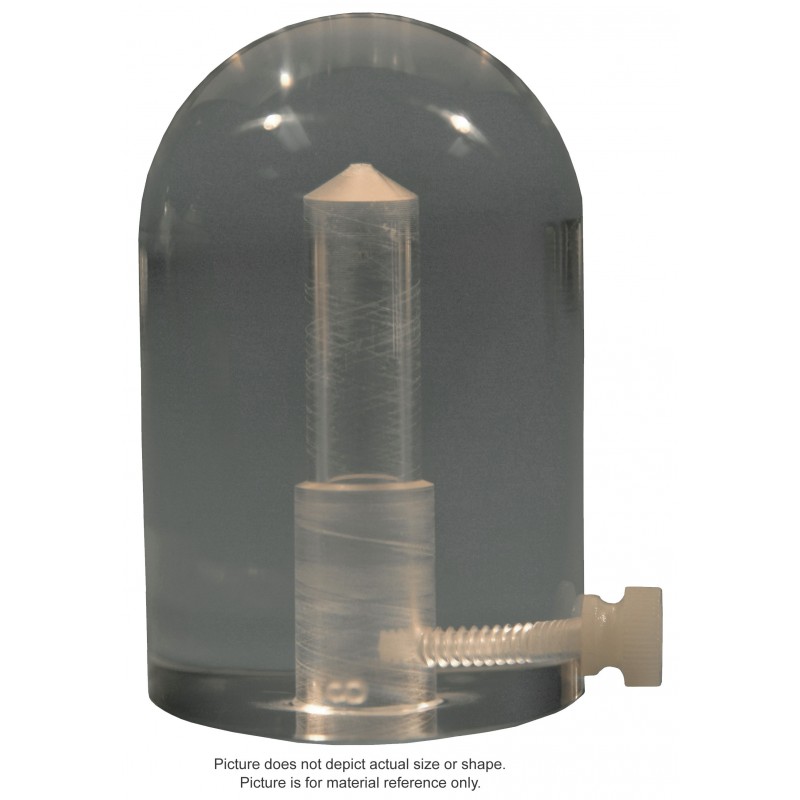

4MV Acrylic Build-Up Cap - 0.6cc Farmer Style Chamber

4MV Acrylic Build-Up Cap - 0.6cc Farmer Style Chamber
4MV Acrylic Build-Up Cap - 0.6cc Farmer Style Chamber
Item Number :
661-404

4MV Acrylic Build-Up Cap - 0.6cc Farmer Style Chamber

Details

Open section Q-Cables_Chambers_Accessories(PDF) to view related products. (Opens in a new tab)

Acrylic Density: 1.185 g/cm3
Energy:
4MV

D-Max in Water: 11 mm
Acrylic Wall (mm): 9.28
Acrylic Wall (inches): 0.365

Note: At energies above 10 MV metal Build-Up Caps may become slightly activated, please check and take appropriate precautions.

Fits the following chambers: 0.6 cc Farmer Style Chamber Without Build-Up Cap, PTW, 23333, 233633, 30001, 30010, 30002, 30011, 30004, 30012, 30006, 30013, NEL 2505/3 (A or B), NE 2571 (A), NE 2581 (A), Exradin A-19, RMI 448, Nuclear Associates 30-351, Capintec PR06-G, Victoreen 580-006
