Acrylic Calibration Check Phantom, Model 665-622

Acrylic Calibration Check Phantom, Model 665-622
Item Number :
665-622

Acrylic 15 cm Cube Calibration Check Phantom, for 0.6cc Farmer Chamber, Photon Hole with Build-Up Cap, Electron Hole 1.5 cm Depth No Build-Up Cap.

Details

Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

Acrylic 15 cm Cube Calibration Check Phantom, for 0.6cc Farmer Chamber, Photon Hole with Build-Up Cap, Electron Hole 1.5 cm Depth No Build-Up Cap.

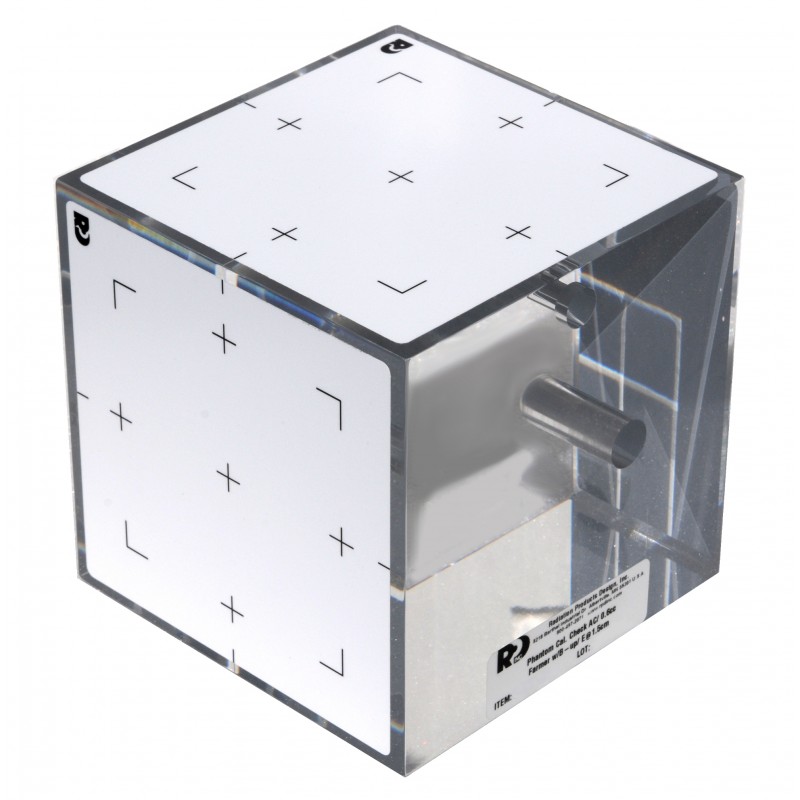

The calibration check phantoms are solid 15 cm cubes.  The photon hole is placed 5 cm from one side and therefore is 10 cm from the other side.  There are reticules on three sides of the cube defining a 10 cm2 field.

• Photon measurements at 5 and 10 cm depth

• Electron measurements at 1 cm or 1.5 cm depth

• Compact and economical

The phantom cubes can be custom drilled to meet customer's specifications.  Please provide name and phone number of contact person.

Specifications
Chamber:
  0.6cc Farmer Style Chamber
Compatible Chamber Model #’s:
  Capintec PR-06C, PR-06G
Photon Chamber Hole:  With Build-up Cap
Electron Chamber Hole:  1.5 cm Depth, No Build-up Cap
Acrylic Density:
1.185g/cm3
