Acrylic Calibration Check Phantom, Model 665-760

Acrylic Calibration Check Phantom, Model 665-760
Item Number :
665-760

Acrylic 15 cm Cube Calibration Check Phantom, for 0.6cc Farmer Chamber, Photon Hole No Build-Up Cap, Electron Hole 1.5 cm Depth No Build-Up Cap.

Details

Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

Acrylic 15 cm Cube Calibration Check Phantom, for 0.6cc Farmer Chamber, Photon Hole No Build-Up Cap, Electron Hole 1.5 cm Depth No Build-Up Cap.

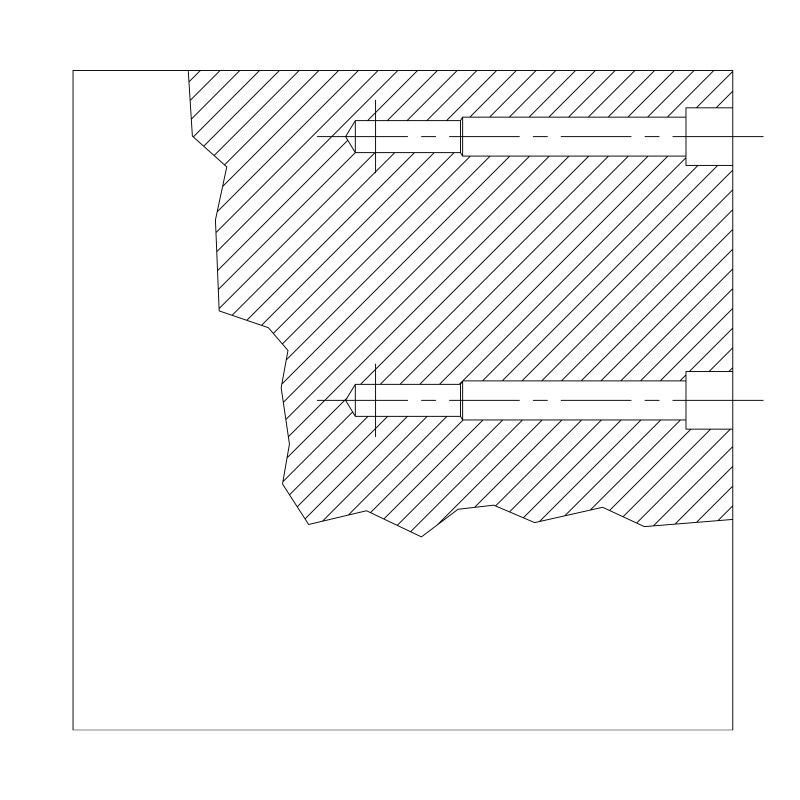

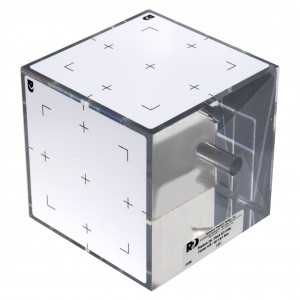

The calibration check phantoms are solid 15 cm cubes.  The photon hole is placed 5 cm from one side and therefore is 10 cm from the other side.  There are reticules on three sides of the cube defining a 10 cm2 field.

• Photon measurements at 5 and 10 cm depth

• Electron measurements at 1 cm or 1.5 cm depth

• Compact and economical

The phantom cubes can be custom drilled to meet customer's specifications.  Please provide name and phone number of contact person.

Specifications
Chamber:
  0.6cc Farmer Style Chamber
Compatible Chamber Model #’s:
  ALL - PTW, Nuclear Associates, Fluke, Bicron NE, Capintec, RMI, and Exradin A19 Farmer Style Chambers
Photon Chamber Hole:
  No Build-up Cap
Electron Chamber Hole:  1.5 cm Depth, No Build-up Cap
Acrylic Density:
1.185g/cm3
