Adapter for the CIVCO Lok-Bar

Open Section U: Quality Assurance Devices, GARD, ISIS, Couch Cubes(PDF) to view related products. (Opens in a new tab)

Adapter for the CIVCO Lok-Bar.

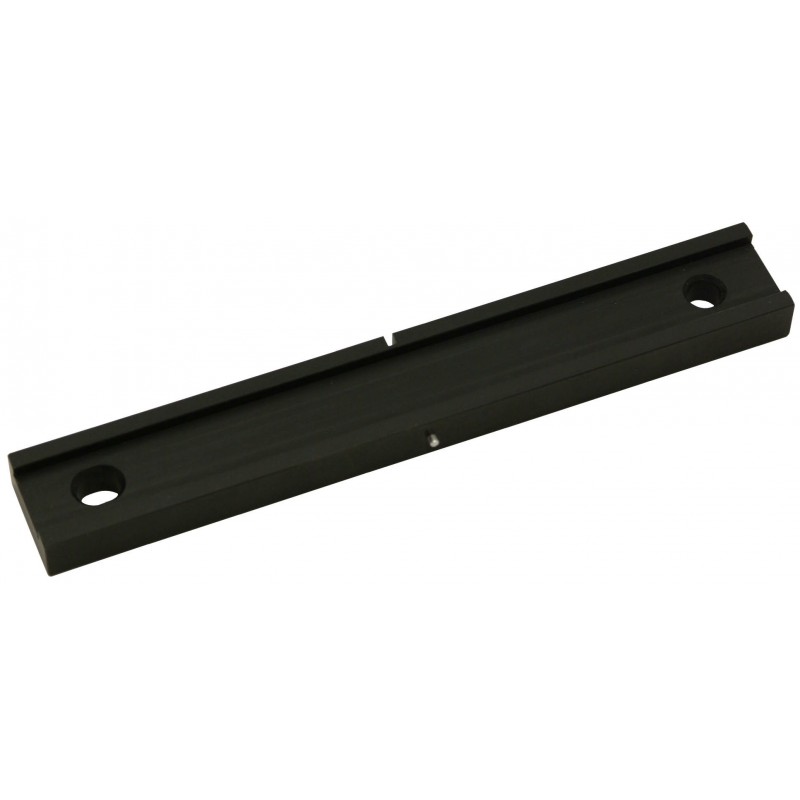

The Adapter for the CIVCO Lok-Bar is designed to be used on the CIVCO Lok-Bar to allow using the ISIS QA-1 Alignment Bar (681-150) and/or the Leveling Platform (681-159) with the CIVCO Lok-Bar.  The Adapter has a circular hole on one side and an oval hole on the other which fit on the Lok-Bar pins.  The underside of the Adapter has a cutout groove so it hugs the Lok-Bar which allows the Adapter to sit on the couch top, so it is not just sitting on top of the Lok-Bar.  The Adapter has an alignment pin and a pin cutout to allow the Alignment Bar and/or Leveling Platform to fit to the Adapter.  The centers of the Adapter's Lok-Bar pin holes are 1" (2.54 cm) from the ends of the Adapter.

Specifications
Adapter Size:  1 5/8" W x 11" L x 3/4" Thick (4.13 x 27.94 x 2 cm)
