Angular / Rectangular Lead Block 40 deg Left 6cm x 17.8cm x 6cm High

Angular / Rectangular Lead Block 40 deg Left 6cm x 17.8cm x 6cm High
Angular / Rectangular Lead Block 40 deg Left 6cm x 17.8cm x 6cm High
Item Number :
518-126

Angle/Rectangular Lead Block 40 deg Left 6cm x 17.8cm x 6cm High

Details

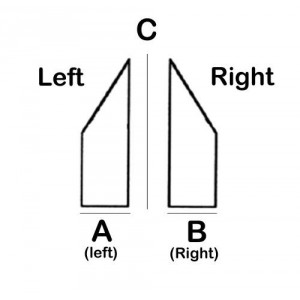

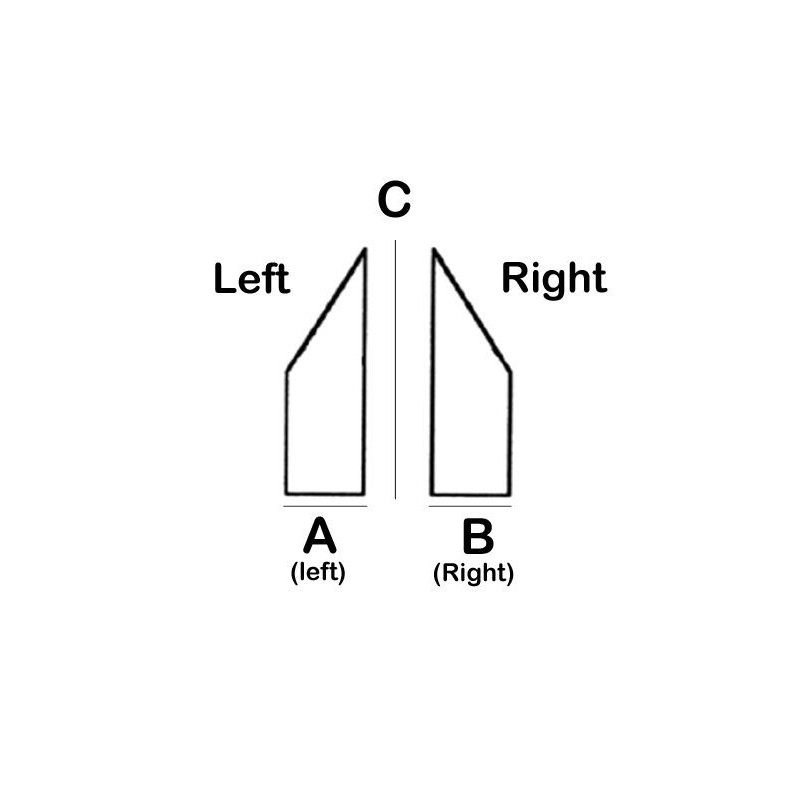

This Left Angled Rectangular lead block is 6cm wide, 17.8cm long, and 6cm thick.

We offer a large assortment of Lead Shielding Blocks for cobalt and linear accelerators. Blocks are made of gravity cast antimonial lead resulting in harder blocks that resist scratching and corner breakage. All surfaces are machined flat, square and smooth and are finished with a tough polyurethane paint. The bottom of each block is covered with thick vinyl to minimize scratching of the surface on which they are placed.
Blocks for use with a treatment tray can be studded with stainless steel bolts. The protruding stud of each block has a wing nut which secures the block to the treatment tray. This is necessary for rotational and angular treatments.

Specifications:

Shape: Angled Rectangular

Thickness: 6cm

Custom sizes are also available.

All Lead Shielding Blocks are made to order and are non-returnable.

NCRP Report No. 102 states the thickness of lead required reduce the beam to 5% is as follows:

Energy

Thickness

4 MV

6.4 cm

6 MV

6.66 cm

10 MV

7.31 cm

15 MV

7.18 cm

20 MV

7.05 cm

25 MV

6.92 cm


Commonly Used Thicknesses
5 cm Thick
- Cobalt 60
6 cm Thick - 4 MV - 6 MV Linear Accelerators
8 cm Thick - 10 M& Higher Linear Accelerators
