Block Casting Station, 50" 120 VAC

Block Casting Station, 50" 120 VAC
Item Number :
878-352

Block Casting Station, 50" 120 VAC.

Details

Open Section A: Block Room Products & Accessories(PDF) to view related products. (Opens in a new tab)

Block Casting Station, 50" 120 VAC.

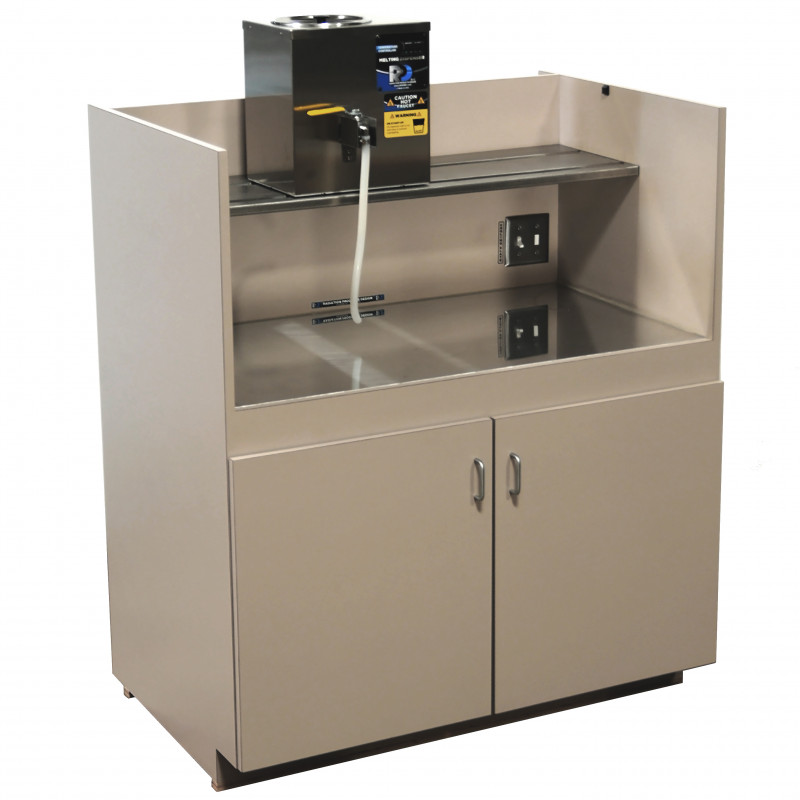

The Block Casting Station maximizes the size of your mold room and can improve labor and production efficiencies while improving block quality.  The complete station measures 43.5" W x 28" D x 50" H (110.5 x 71 x 127 cm).



Features:

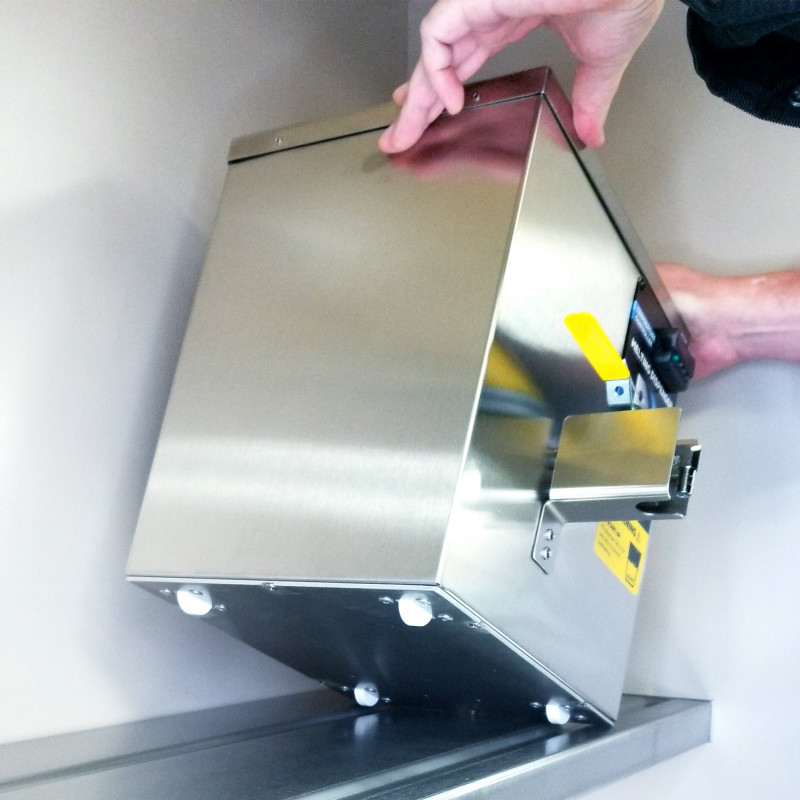

• A 1.5 gallon alloy dispenser with a digital readout, precise digital temperature control and a no-drip heated ball valve dispenser.  The alloy dispenser base plate is a roller carriage which allows for easy side-to-side movement over a range of 28” (71.37 cm) over the cold plate.

• A large capacity, precision surfaced refrigerated cold plate measuring 42.875" x 23.3125" (l09 x 59.3cm) that accommodates up to six photon blocks.  Cold water is recirculated by means of a closed loop system through a pump and refrigeration system. The anti-freeze in this unit does not to be refilled or replaced.

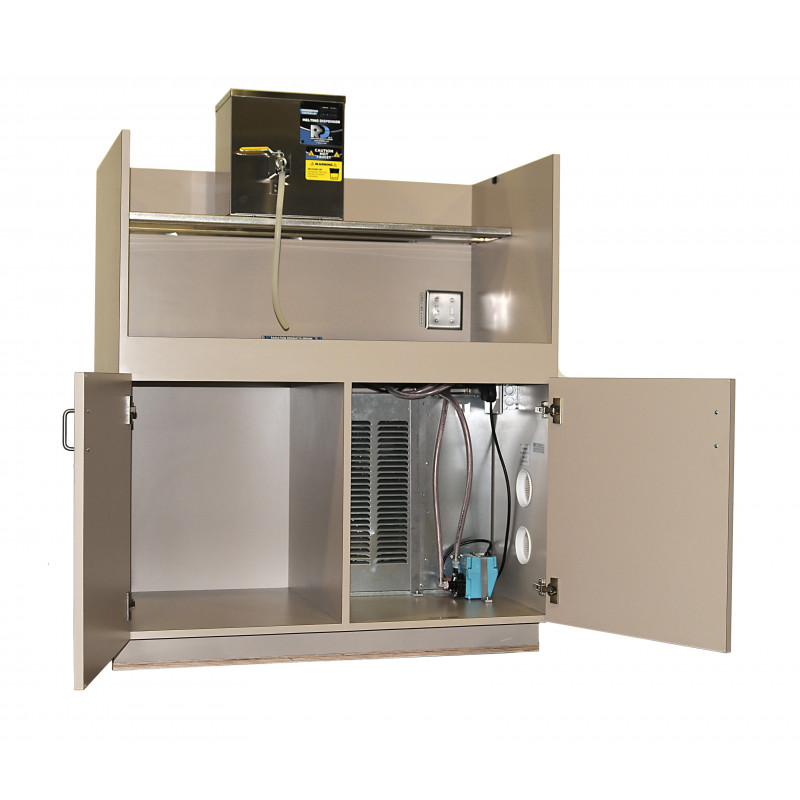

• The sturdy cabinet has a convenient storage space on the left side underneath the cold plate that measures 20.5" W x 23" D x 23" H (52 x 58.4 x 58.4 cm).  The right side underneath cabinet houses the refrigeration system and has two (2) air vents on the side of the cabinet.  These air vents need a 2” minimum clearance on the right side of the cabinet.  All front and sides of the cabinet are covered with Formica brand oyster gray laminate.  The back side is covered with a Formica brand phenolic resin backing sheet.

• Power Cord:  8’ (2.4m) 3 Wire, 14ga.

• No plumbing is required.



Included Refrigeration System (Item # 16-9061)
Power: 120 VAC, 60 Hz, 5.8 Amp, 696 Watt

Included Recirculation System (Item # 16-906)
Power: 115 VAC, 60Hz, 1.7 Amp, 100 Watt


Overall Dimensions:  43.5" W x 28" D x 50" H (110.5 x 71 x 127 cm)



For Full casting station with air cleaner click here.
