Block Casting Station, 85" 120 VAC

Block Casting Station, 85" 120 VAC
Item Number :

Block Casting Station, 85" 120 VAC.


Open Section A: Block Room Products & Accessories(PDF) to view related products. (Opens in a new tab)

Block Casting Station, 85" 120 VAC.

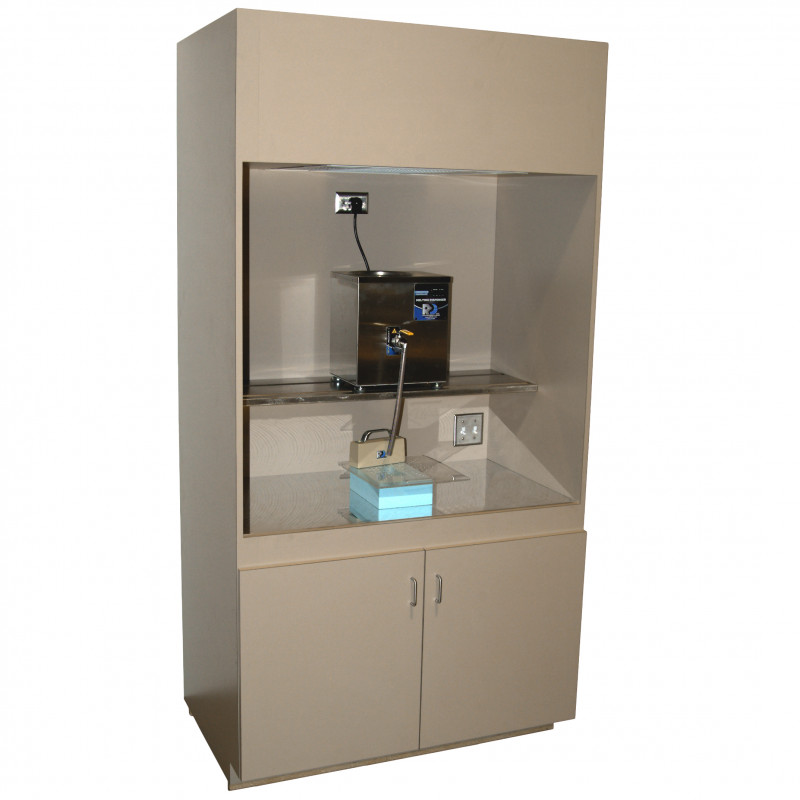

The Block Casting Station maximizes the size of your mold room and can improve labor and production efficiencies while improving block quality.  The complete station measures 43.5" W x 28" D x 85" H (110.5 x 71 x 216 cm).


• A 1.5 gallon alloy dispenser with a digital readout, precise digital temperature control and a no-drip heated ball valve dispenser.  The alloy dispenser base plate is a roller carriage which allows for easy side-to-side movement over a range of 28” over the cold plate.

• A large capacity, precision surfaced refrigerated cold plate measuring 42.875" x 23.3125" (l09 x 59.3cm) that accommodates up to six photon blocks.  Cold water is re-circulated by means of a closed loop system through a pump and refrigeration system. The anti-freeze in this unit does not to be refilled or replaced.

• The sturdy cabinet has a convenient storage space on the left side underneath the cold plate that measures 20.5" W x 23" D x 23" H (52 x 58.4 x 58.4 cm).  The right side underneath cabinet houses the refrigeration system and has two (2) air vents on the side of the cabinet.  These air vents need a 2” minimum clearance on the right side of the cabinet.  All front and sides of the cabinet are covered with Formica brand oyster gray laminate.  The back side is covered with a Formica brand phenolic resin backing sheet.

• An electronic air cleaner provides safer, cleaner air in your mold room – 98% efficient at .03 microns.  Run at low speed.

• Power Cord:  8’ (2.4m) 3 Wire

• Two Power Switches
A. Turns on electronic air cleaner
B. Turns on pump and compressor

• No plumbing is required.

Overall Dimension:  43.5" W x 28" D x 85" H (110.5 x 71 x 216 cm)


Power Requirements:

Alloy Dispenser: 120 VAC, 665 WATT

Pump: 120 VAC, 1.7 Amp, 100 WATT

Chiller: 120 VAC, 5.8 Amp, 490 WATT

Air Cleaner: 120 VAC, .4/.6 Amp, 36 WATT

This Air Cleaner is Not California Air Resources Board (CARB) Certified.

Included Refrigeration System (Item # 16-9061)
Power: 120 VAC, 60 Hz, 5.8 Amp, 696 Watt

Included Recirculation System (Item # 16-906)
Power: 115 VAC, 60Hz, 1.7 Amp, 100 Watt

For block casting station without air cleaner click here.
