Block Casting Station, 85" 220 VAC

Block Casting Station, 85" 220 VAC
Item Number :

Block Casting Station, 85" 220 VAC.


Open Section A: Block Room Products & Accessories(PDF) to view related products. (Opens in a new tab)

Block Casting Station, 85"220 VAC.

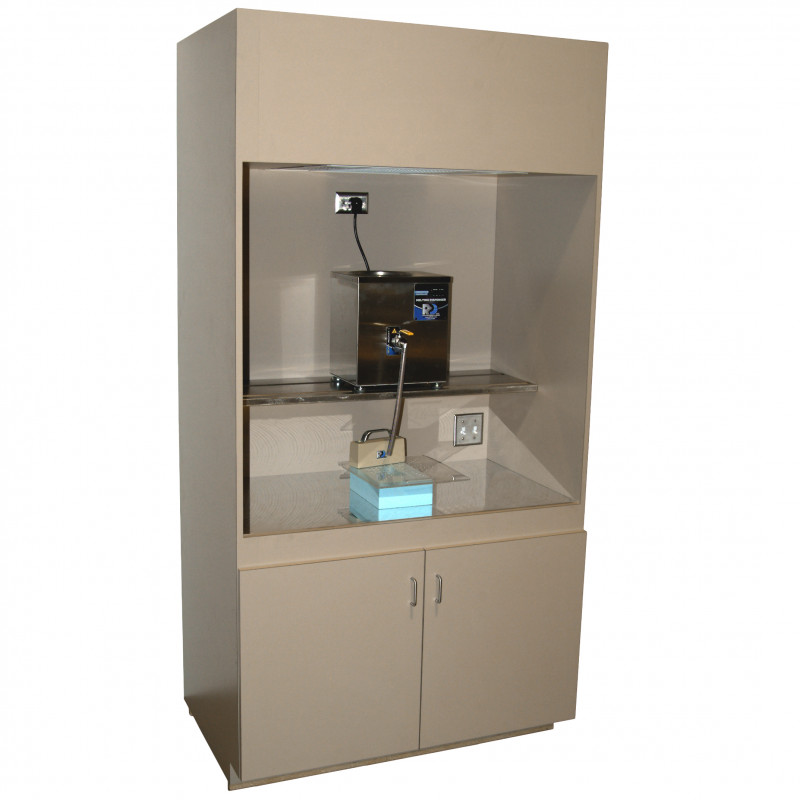

The Block Casting Station maximizes the size of your mold room and can improve labor and production efficiencies while improving block quality.  The complete station measures 43.5" W x 28" D x 85" H (110.5 x 71 x 216 cm).

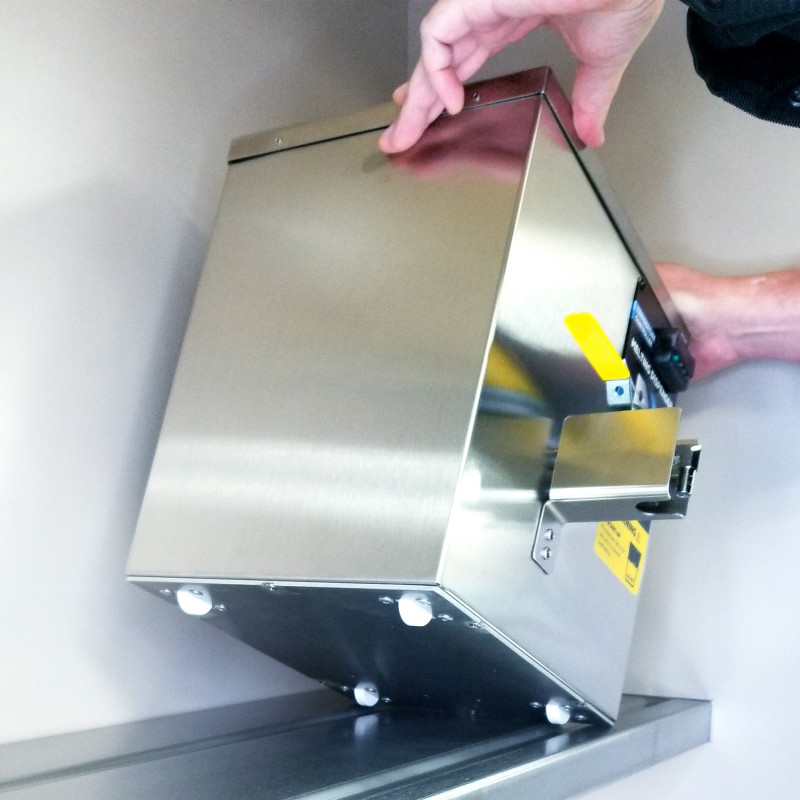

• A 1.5 gallon alloy dispenser with a digital readout, precise digital temperature control and a no-drip heated ball valve dispenser.  The alloy dispenser base plate is a roller carriage which allows for easy side-to-side movement over a range of 28” over the cold plate.

• A large capacity, precision surfaced refrigerated cold plate measuring 42.875" x 23.3125" (l09 x 59.3cm) that accommodates up to six photon blocks.  Cold water is re-circulated by means of a closed loop system through a pump and refrigeration system. The anti-freeze in this unit does not to be refilled or replaced.

• The sturdy cabinet has a convenient storage space on the left side underneath the cold plate that measures 20.5" W x 23" D x 23" H (52 x 58.4 x 58.4 cm).  The right side underneath cabinet houses the refrigeration system and has two (2) air vents on the side of the cabinet.  These air vents need a 2” minimum clearance on the right side of the cabinet.  All front and sides of the cabinet are covered with Formica brand oyster gray laminate.  The back side is covered with a Formica brand phenolic resin backing sheet.

• An electronic air cleaner provides safer, cleaner air in your mold room – 98% efficient at .03 microns.  Run at low speed.

• Power Cord:  8’ (2.4m) 3 Wire (See 878_BLOCKCAST_POWER_SUPPLY under the Documents Tab to determine the item number with the correct power cord needed)

• Two Power Switches
A. Turns on electronic air cleaner

     This Air Cleaner is Not California Air Resources Board (CARB) Certified.
B. Turns on pump and compressor

    • No plumbing is required.

Included Refrigeration System (Item # 16-9071)
Power: 220 VAC, 50 Hz, 3.5 Amp, 770 Watt


Included Recirculation System (Item # 16-907)
Power: 220 VAC, 50/60 Hz, .7/.9 Amp, 198 Watt

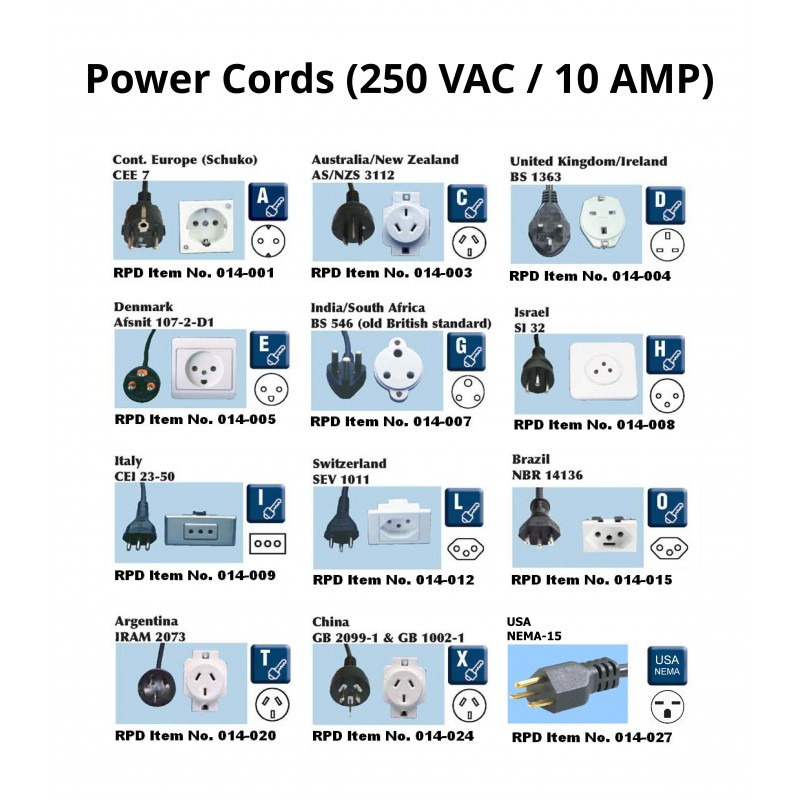

Item Number Power Cord
878-351A CEE 7
878-351C AS/NZS 3112
878-351D BS 1363
878-351E Afsnit 107-2-D1
878-351G BS 546
878-351H SI 32
878-351I CEI 23-50
878-351L SEV 1011
878-351O NBR 14136
878-351T IRAM 2073
878-351X GB 2099-1 & GB 1002-1
878-351U NEMA-15

Overall Dimension:  43.5" W x 28" D x 85" H (110.5 x 71 x 216 xm)

For block casting station without air cleaner click here.
