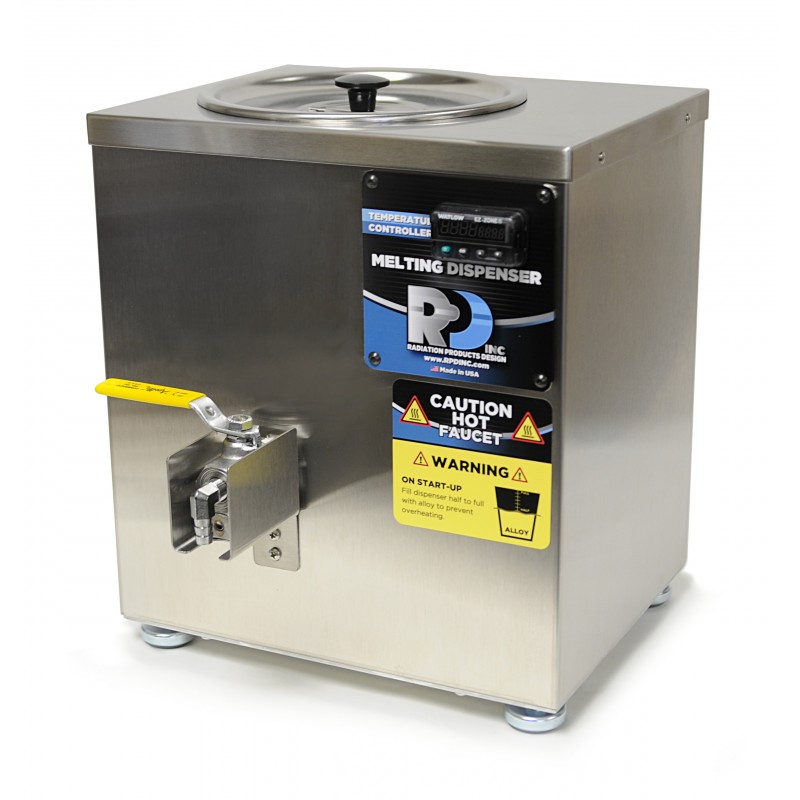

Digital Alloy Dispenser, 1.5 Gallon, 120 VAC

Digital Alloy Dispenser, 1.5 Gallon, 120 VAC
Digital Alloy Dispenser, 1.5 Gallon, 120 VAC
Item Number :
878-060

Digital Alloy Dispenser, 1.5 Gallon, 120 VAC, 665W.

Details

Open Section A: Block Room Products & Accessories(PDF) to view related products. (Opens in a new tab)

Digital Alloy Dispenser, 1.5 Gallon, 120 VAC, 665W.

The compact yet rugged design makes this alloy dispenser universally ideal for clinical use.  It features polished stainless steel corrosion-resistant interior and exterior housing, a stainless steel cover and a side mounted, easy to view temperature control.  Power switch, fuses and cord receptacle are mounted on the back side.

The EZ-Zone® Digital Proportional-Integral-Derivative (PID) Temperature Controller has two digital readouts, temperature and set point.  It can maintain alloy at a controlled temperature up to a maximum of 250°F (121°C).  The heating element provides even temperatures throughout the entire unit.

Controlling the power to the heater is done with a heavy duty Triac with Zero Crossover Switching to prevent noise from being induced into other equipment thru the AC Line.

The units are constructed with a ball valve faucet with hose barb connector for easy alloy removal.  An optional 3/8" ID x 18" long (0.96 x 45.88 cm) drain tube (Item 878-158) can be attached to the faucet hose barb fitting when the dispenser is set on a shelf over the alloy blocks.

The temperature displayed is set to Fahrenheit at the factory; however, this can be changed to Celsius by the end user.

A 6' (1.8 m) AC Cord with grounded hospital grade plug is standard.

All units are single phase.

This product is not ISO certified or UL listed.


Specifications
Alloy Capacity:
  120 lbs. (54 kg)
Alloy Dispenser Temperature Range:  0° to 250°F (-17° to 121°C)
Temperature Accuracy:  ± 4°F
Temperature Controller Type:  PID
Wattage: 665W
Voltage: 120 VAC
Thermocouple: J
Electronic Switching: Triac with Zero Crossover Switching
Over Temperature: 250°F Bi-Metal Disc Thermostat - Manual Reset
On/Off Switch: 10 Amp Rating
Fused:  Two Line Fuses for AC Lines
Power Cord:  6' (1.8 m) 3 Wire, 10 Amp, 300 Volt, SJT, with Hospital Grade Plug
Faucet:  Ball Valve with Hose Barb
Optional Drain Tubing (878-158):  3/8" ID x 18" (0.96 x 45.72 cm)
Interior Dimension:  7 1/8" Dia. x 8 5/8" Deep (18 x 21.9 cm)
Interior Material:  Stainless Steel
Exterior Dimensions:  9.75" D x 12" W x 14.5" High (25 x 30.5 x 37cm)
Exterior Material:  Stainless Steel
Weight:  17.5 lbs ( 8 kg )



Environmental Conditions
Altitude Limits:
  9843ft (3000 Meters)
Ambient Temperature Range:  32° - 104°F (0 - 40°C)
Relative Humidity Range:  0 to 75%
Pollution Degree:  2

FOR INDOOR USE ONLY
