Digital Alloy Dispenser, 1.5 Gallon, 208/240 VAC

Digital Alloy Dispenser, 1.5 Gallon, 208/240 VAC
Item Number :
878-065_

Digital Alloy Dispenser, 1.5 Gallon, 208/240 VAC, 576/665 W.

Details

Open Section A: Block Room Products & Accessories(PDF) to view related products. (Opens in a new tab)


Digital Alloy Dispenser, 1.5 Gallon, 208/240 VAC, 576/665 W.

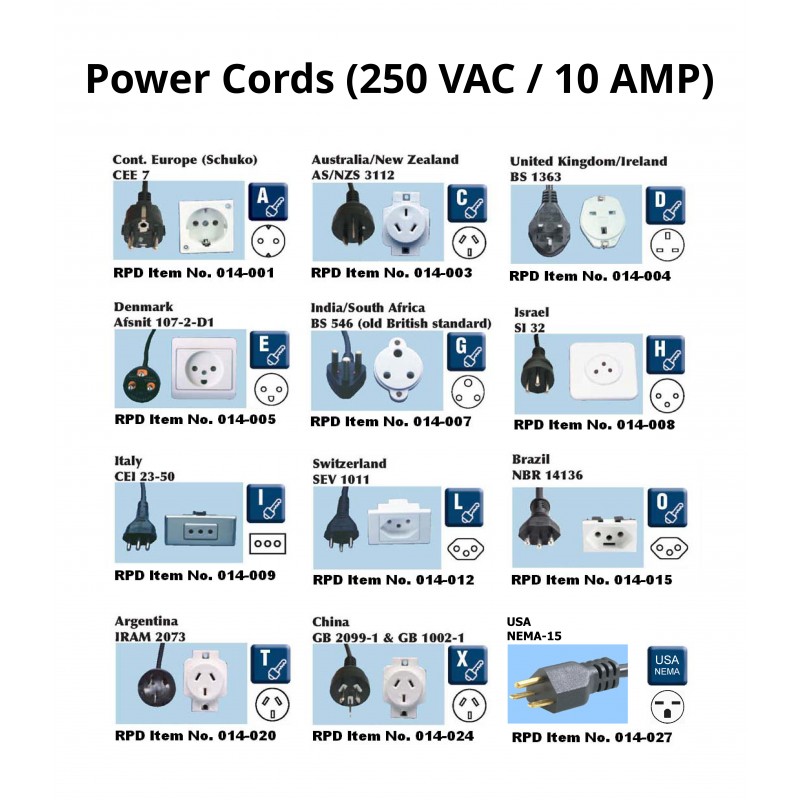

Customer MUST Specify the Power Cord Type. (See Image Above)

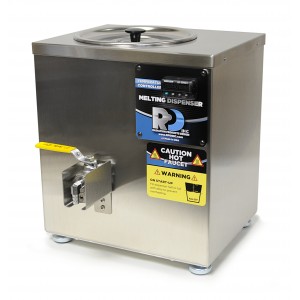

The compact yet rugged design makes this alloy dispenser universally ideal for clinical use.  It features polished stainless steel corrosion-resistant interior and exterior housing, a stainless steel cover and a side mounted, easy to view temperature control.  Power switch, fuses and cord receptacle are mounted on the back side.

The EZ-Zone® Digital Proportional-Integral-Derivative (PID) Temperature Controller has two digital readouts, temperature and set point.  It can maintain alloy at a controlled temperature up to a maximum of 250°F (121°C).  The heating element provides even temperatures throughout the entire unit.

Controlling the power to the heater is done with a heavy duty Triac with Zero Crossover Switching to prevent noise from being induced into other equipment thru the AC Line.

The units are constructed with a ball valve faucet with hose barb connector for easy alloy removal.  An optional 3/8" ID x 18" long (0.96 x 45.88 cm) drain tube (Item 878-158) can be attached to the faucet hose barb fitting when the dispenser is set on a shelf over the alloy blocks.

The temperature displayed is set to Fahrenheit at the factory; however, this can be changed to Celsius by the end user.

A 6' (1.8 m) AC Cord with grounded hospital grade plug is standard.

All units are single phase.

How to order:

Choose the item number that has the power cord that matches your power outlet.

Example: Choose item number 878-065A for a Digital Alloy Dispenser with a CEE 7 power cord.

Item Number Power Cord
878-065A CEE 7
878-065C AS/NZS 3112
878-065D BS 1363
878-065E Afsnit 107-2-D1
878-065G BS 546
878-065H SI 32
878-065I CEI 23-50
878-065L SEV 1011
878-065O NBR 14136
878-065T IRAM 2073
878-065X GB 2099-1 & GB 1002-1
878-065U NEMA-15




This product is not ISO certified or UL listed.

Specifications
Alloy Capacity:
 120 lbs. (54 kg)
Alloy Dispenser Temperature Range:  0° to 250°F (-17° to 121°C)
Temperature Accuracy:  ± 4°F
Temperature Controller Type:  PID
Wattage: 576/665W
Voltage: 208/240 VAC
Thermocouple:  J
Electronic Switching:  Triac with Zero Crossover Switching
Over Temperature: 250°F Bi-Metal Disc Thermostat - Manual Reset
On/Off Switch:  10 Amp Rating
Fused:  Two Line Fuses for AC Lines
Power Cord:  6' (1.8 m) 3 Wire, 10 Amp, 300 Volt, SJT, with Hospital Grade Plug
Faucet:  Ball Valve with Hose Barb
Optional Drain Tubing (878-158):  3/8" ID x 18" (0.96 x 45.72 cm)
Interior Dimension:  7 1/8" Dia. x 8 5/8" Deep (18 x 21.9 cm)
Interior Material:  Stainless Steel
Exterior Dimensions:  9.75" D x 12" W x 14.5" High (25 x 30.5 x 37cm)
Exterior Material:  Stainless Steel
Weight:  17.5 lbs (8 kg)


Environmental Conditions
Altitude Limits:
  9843ft (3000 Meters)
Ambient Temperature Range:  32° - 104°F (0 - 40°C)
Relative Humidity Range:  0 to 75%
Pollution Degree:  2

FOR INDOOR USE ONLY
