Digital Thermometer

Digital Thermometer
Digital Thermometer

Item Number :
470-320

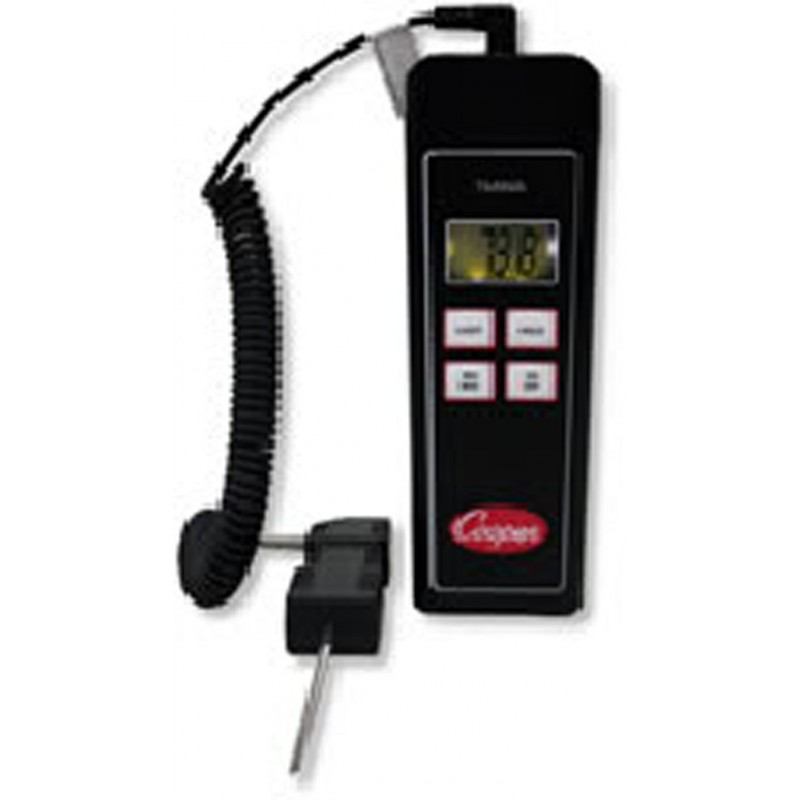

Digital Thermometer.

Details

Open section F-Measuring_Devices_Barometers_Thermometers(PDF) to view related products. (Opens in a new tab)

Digital Thermometer.

For those applications where only one temperature is read at a time, the Digital Thermometer is an industry standard.  It features Min/Max memory, hold, auto shut-off.  It is housed in a rugged polyethylene storage case with a sealed membrane and has a backlight for dark environments.  This hand-held thermometer is a battery powered unit with a detachable immersion probe. Temperature readings appear in Centigrade or Fahrenheit with ± 0.2 °C/0.3 °F or ± 0.5 % of reading, which ever is greater. The LED display eliminates problems that can result from the misreading of stem-type thermometers.

Detachable immersion probes are time savers for x-ray departments that have several film processors. The use of multiple probes, each remaining in a specific tank, also eliminates the possible cross-contamination of chemicals. You can quickly and easily display the lowest and highest temperatures measured by the probe since the unit was turned-on. Our digital thermometer also enables you to "freeze" the current temperature reading on the display. The thermometer display can be easily illuminated, making it perfect for use in the darkroom. You can also program the Digital Thermometer for auto or manual shut-off.

The Digital Thermometer is a shock resistant, solid-state unit that needs no adjustments to maintain accuracy. Calibration is traceable to the National Institute of Standards and Technology (NIST). The unit includes a high-impact plastic case with a recess for storing one probe, and is equipped with a power jack that will accept the optional AC power supply. The jack should be used when the unit will be in use for extended periods of time (in order to prevent battery failure).

Digital Thermometer includes:

• General purpose probe.

• Carry case.

Specifications

Instrument
Display:
  Four-digit LED, plus decimal point.
Auto Shut-Off:  After 5 minutes of non-use (can be disabled).
Switchable:
 °F/°C.
Temperature Range:  -40° to 302°F / -40° to 150°C.
Temperature Accuracy:  ±0.3°F/0.2°C or ±0.5% of Reading which ever is greater.
Resolution:  0.1°F/°C.
Battery Type:  9v (2) AAA.
Battery Life:  1800 hrs.
Housing Material:  ABS plastic.
Dimensions:  5" x 2" x 10" (12.75 x 5.1 x 25.5 cm).
Weight:  5oz (without probe).
Warranty:  5 year instrument warranty.
Certifications:  CE, Rohs, NIST, WEEE.

Probe
Temperature Accuracy:
  ± .4°F.
Max Tip Temperature:  300°F (149°C).
Max Cable Temperature:  200°F (93°C).
Response Time:  6 seconds in liquid.
Shaft Length:  3.75" (9.525cm).
Shaft Diameter:  0.140" (.356cm).
Cable Length:  6' (1.8 m) uncoiled.
Cable Material:  Polyurethane .
Dimensions:  7.1" x 1" x 0.7" (18.1 x 2.5 x 1.8 cm).
Weight:  1.764 oz (50 g).
Warranty:  1 year probe warranty.


Data Sheet
