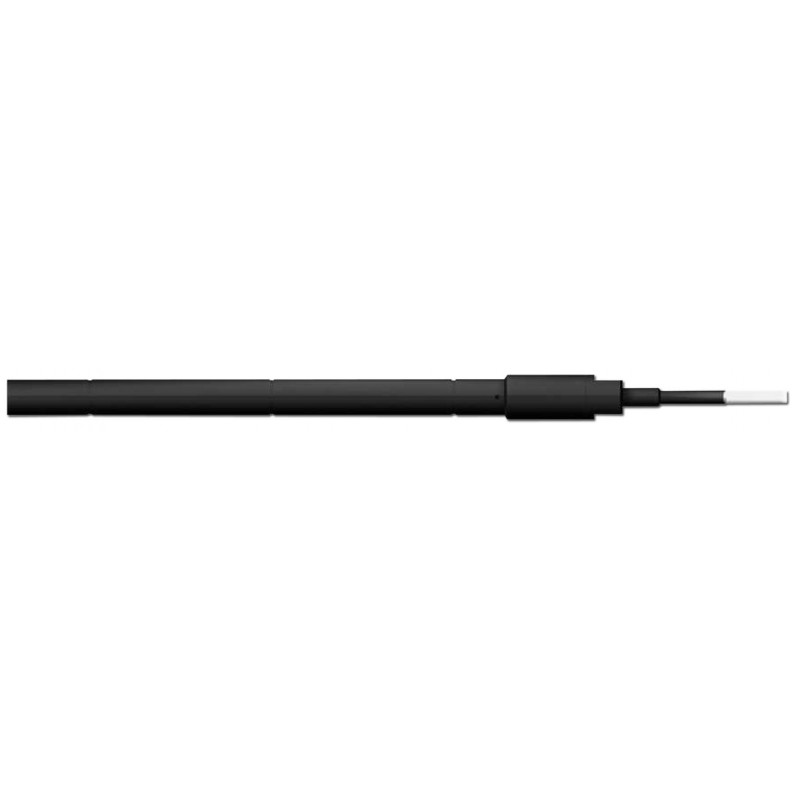

Exradin A101 CT Chamber

Exradin A101 CT Chamber
Item Number :

Exradin A101 CT Chamber.


Open Section G: CT Simulators, CT Products, Chambers, Lasers, Phantoms(PDF) to view related products. (Opens in a new tab)

Exradin A101 CT Chamber.

Uncompromising Quality
CT ion chambers combine robust design with uniform energy response for low energy kVCT applications.

For Performing Measurements Necessary For Calculating CTDI (CT Dose Index)
The Exradin Model A101 CT Ion Chamber is designed to perform the measurements necessary for calculating the CTDI (computed tomography dose index) as described in the AAPM TG 74, Quality Control in Diagnostic Radiology.  The chamber is 10 mm in diameter and comes with an acrylic sheath for use with phantoms that have the typical 13.1 mm cavity.  It has excellent response uniformity over the central 10 cm of the chamber length, with variation less than plus or minus 3%.

• Fiducial markers identify center and both ends of the collecting volume providing easy setup in relation to the beam

• Proven guard design yields stable, precise measurements and minimizes settling time by creating uniform field lines

• Shell and guard are made of durable, long lasting Shonka conductive plastic

• Use of homogeneous material throughout the chamber minimizes perturbation of the beam due to the presence of the chamber and optimizes measurements

• Axially symmetric design of the chamber provides a uniform, isotropic response

• Ionization collection efficiency is 99.9% or better

• Collecting volume is 4.54 cc

Fast, Precise Measurements
Model A101 is ideal for checking the consistency of beams at various jaw widths.  The chamber is vented to the ambient, ensuring the collecting volume is in pressure equilibrium with the surroundings.  The design assures there are no stem or voltage soakage effects, providing precise and reliable measurements.

Durable Construction, Built to Last
The Model A101 CT Chamber is constructed of rugged C552 Shonka air-equivalent plastic, providing excellent conductivity and years of reliable use.

Collecting Volume:  4.54 cm3
Collecting Volume Length:
  10.0 cm
Collector Diameter:
  2.4 mm
Body Tube Outside Diameter:
  10.0 mm
Wall Thickness:
  1.0 mm
Chamber Length:
  164.3 mm
Body Tube and Guard Material:
  Shonka air-equivalent plastic C552
Response Uniformity Over the Central 10 cm of Chamber Length:
Energy Response:
  80 kVp to 150 kVp ±4%
Collector Material:
  Carbon fiber
Electrical Power Requirements:
  Operates at ±300 VDC
Nominal Collection Efficiency:
Maximum Polarizing Potential:
  1000 V
Nominal Inherent Leakage Currents:
  10-15 A
