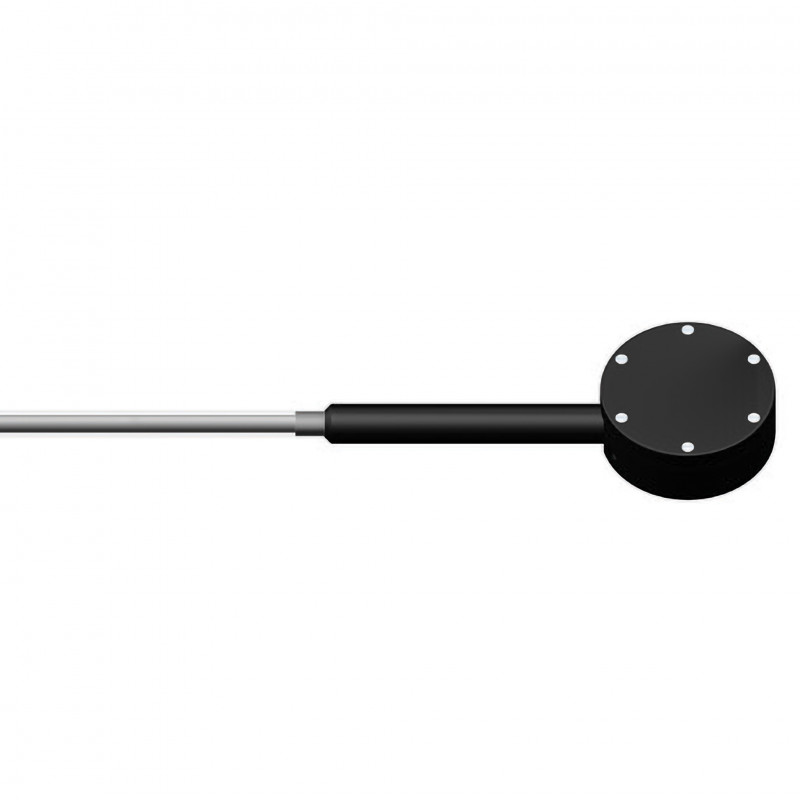

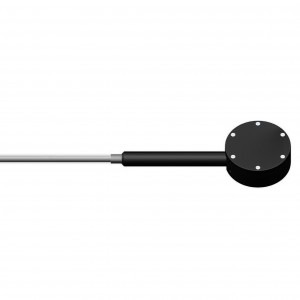

Exradin A11 Parallel Plate Chamber, 0.62 cc

Open Section E: Cables, Connectors, Chambers, Stands & Accessories(PDF) to view related products. (Opens in a new tab)

Exradin A11 Parallel Plate Chamber, 0.62cc.

Exradin Parallel Plate Chambers ensure precision in depth-dose measurements by providing uniform field lines even at low energies.

Waterproof A11 Roos-type chamber may be operated while fully submerged without any protective sheath; ideal for repeated TG-51/TRS-398 dose distribution measurements in a water phantom.

Specifications
Collecting Volume:  0.062cc
Centroid of Collecting Volume - from exterior surface of window:  2.0 mm
Window Collector Gap:  2.0 mm
Collector Diameter:  20.0 mm
Guard Ring Width (Radial):  4.4 mm
Window Material*:  1 mm A, P, T
Window Thickness:  1.0 mm
Shell/Entry Window, Collector and Guard Material*:  A
Nominal Air Kerma Calibration Factor:  4.6E + 7 Gy/C
Recommended Polarizing Voltage:  300 V
Nominal Leakage:  ±10 x 10^-15 amp
Maximum Polarizing Voltage:  1000 V
Waterproof:  Yes
Included Build-Up Cap:  None

* Material:  A – C552 Shonka air-equivalent plastic  P – D400 polystyrene-equivalent plastic  T – A150 Shonka tissue-equivalent plastic.
