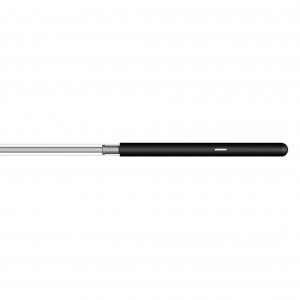

Exradin A14SL Slimline Microchamber, 0.015cc

Exradin A14SL Slimline Microchamber, 0.015cc
Exradin A14SL Slimline Microchamber, 0.015cc
Item Number :
300-250-A14SL

Exradin A14SL Slimline Microchamber, 0.015cc.

Details

Open Section E: Cables, Connectors, Chambers, Stands & Accessories(PDF) to view related products. (Opens in a new tab)

Exradin A14SL Slimline Microchamber, 0.015cc.

The Exradin micro ion chambers have a superior small-field dosimetry to assess pinpoint radiation in IMRT, stereotactic, orthovoltage, x-rays and superficial skin therapy.

The Model A14SL is capable of measuring extremely small field sizes of 4 mm by 6 mm, allowing for exceptional spatial resolution and exact pinpoint beam profile characterization.  This helps assess radiation fields during IMRT and stereotactic radiosurgery.

Specifications
Collecting Volume:  0.015cc
Centroid of Collecting Volume - from exterior tip of shell:  2.39 mm
Outside of Shell Collecting Diameter:  6.35 mm
Inside Diameter of Shell Collecting Volume:  4.0 mm
Shell Wall Thickness:  1.1 mm
Collector Diameter:  0.3 mm
Collector Length:  1.5 mm
Shell/Entry Window, Collector and Guard Material*:  Shell Only A
Nominal Air Kerma Calibration Factor:  1.9E + 9 Gy/C
Recommended Polarizing Voltage:  300 V
Nominal Leakage:  ±10 x 10-15 amp
Maximum Polarizing Voltage:  1000 V
Waterproof:  Yes
Included Build-Up Cap:  None

* Material:  A – C552 Shonka air-equivalent plastic  P – D400 polystyrene-equivalent plastic  T – A150 Shonka tissue-equivalent plastic.
† Nominal calibration factor for Co-60 at 22° C
