GAFChromic Film, Comparator Strip for XR-RV3

GAFChromic Film, Comparator Strip for XR-RV3
GAFChromic Film, Comparator Strip for XR-RV3

Item Number :
115-031

GAFChromic Film, Comparator Strip for XR-RV3

(XR-RV3 Film is not included with this test strip. See Item # 115-030)

Details

Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

GAFChromic Film, Comparator Strip for XR-RV3
(XR-RV3 Film is not included with this test strip. See Item # 115-030)

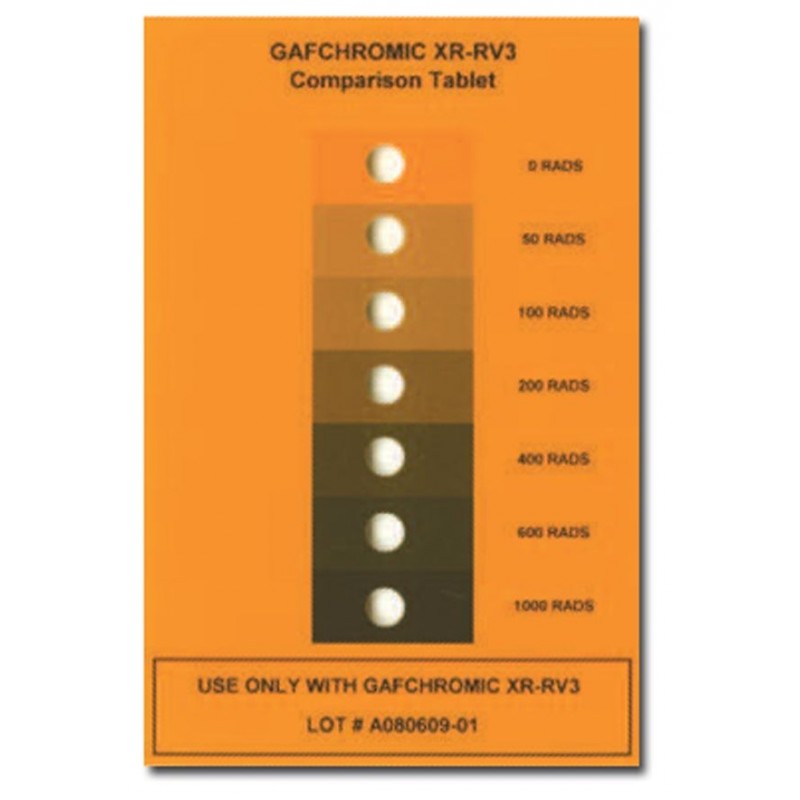

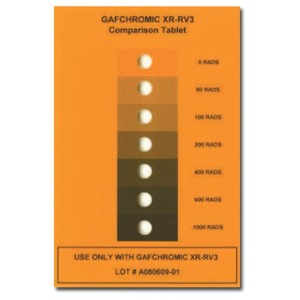

The Gafchromic® Film, Comparator Strip is used for quick visual estimation of dosage at a point, requiring no digitizing. This comparator strip must be ordered with the film if your facility is not using the FilmQA-XR™ software.



The GAFCHROMIC® XR-RV3 film is designed for surface-peak skin-dose measurement in interventional procedures guided by fluoroscopy.



GAFCHROMIC® XR-RV3 film (Item 115-030) Information

• An excellent tool for the processor-less environment

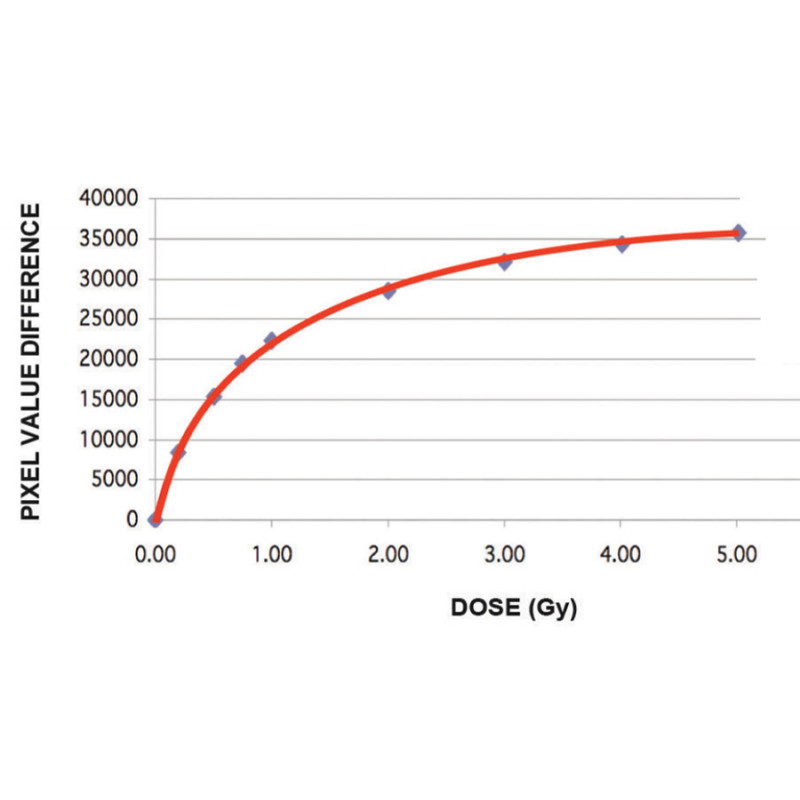

• Sensitive to wide dose range 0.05 Gy to 15 Gy

• An easy to use film with high data integrity

• Improved resistance to indoor lighting

• Shelf life: 18 month at room ambient temperature

Structure of GAFCHROMIC® film, type XR-RV3
Yellow Polyester:  97 microns
Pressure Sensitive Adhesive:  12 microns
Active Layer:  17 microns
White Polyester:  97 microns

Specifications
Energy range: 30 keV to 30 MeV.
Configuration:  3-layer laminate (substrate - active layer substrate)
Substrate:  White and yellow polyester
