GAFChromic Film, XR-RV3, 13.8" x 17" (25/Box)

GAFChromic Film, XR-RV3, 13.8" x 17" (25/Box)

Item Number :

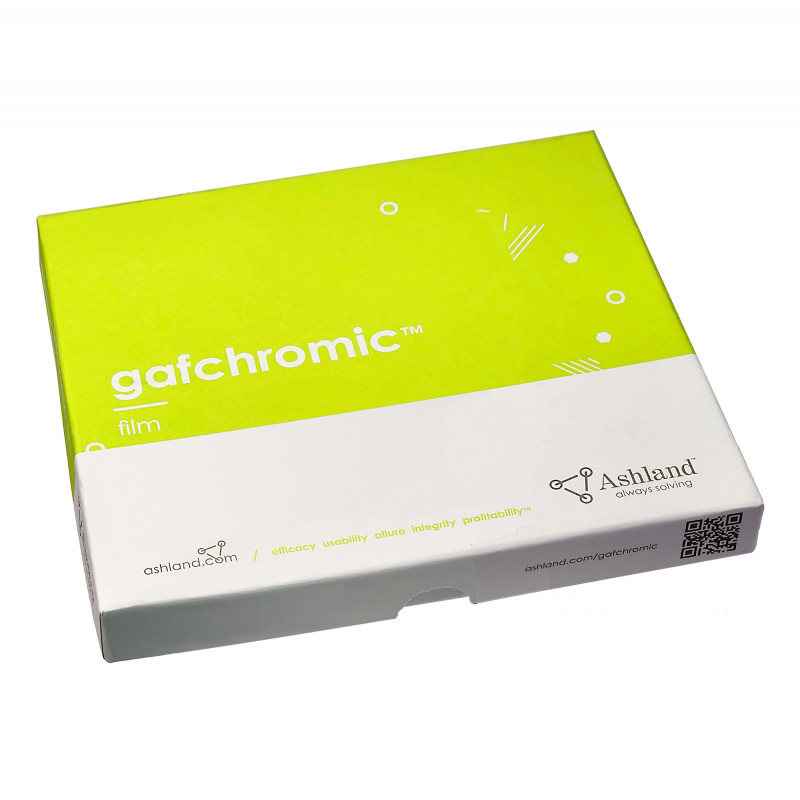

GAFChromic™ Film, XR-RV3, 13.8" x 17" (25/Box)


Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

GAFChromic Film, XR-RV3, 13.8" x 17" (25/Box)



• An excellent tool for the processor-less environment

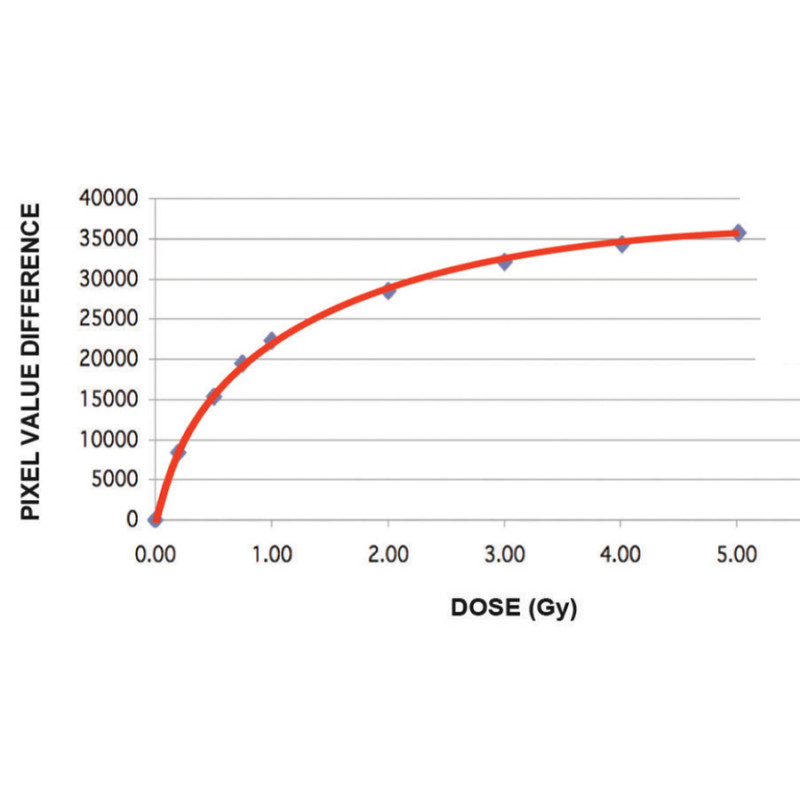

• Dose range: 50 cGy to 8cGy

• An easy to use film with high data integrity

• Improved resistance to indoor lighting


GAFCHROMIC XR-RV3 film is designed for surface-peak skin-dose measurement in interventional procedures guided by fluoroscopy.  A comparator strip is also available for quick visual estimation of dosage at a point, requiring no digitizing. The comparator strip must be ordered with the film if your facility is not using the FilmQA-XR™ software.

Structure of GAFCHROMIC film, type XR-RV3

A.  Yellow Polyester:  97 microns
B.  Adhesive Layer:  12 microns
C.  Active Layer:  17 microns
D.  White Polyester:  97 microns

Data Sheet

  • 115-XR-RV3PAPER
    Calibration of GafChromic XR-RV3 radiochromic film for skin dose measurement using standardized x-ray spectra and a commercial flatbed scanner.
