Huestis Flexi-Holder

Huestis Flexi-Holder

Item Number :
130-303-1

Huestis Flexi-Holder®

Details

Open Section M: Imaging, Film, Graticules, Densitometers, Anatomical Drawings(PDF) to view related products. (Opens in a new tab)

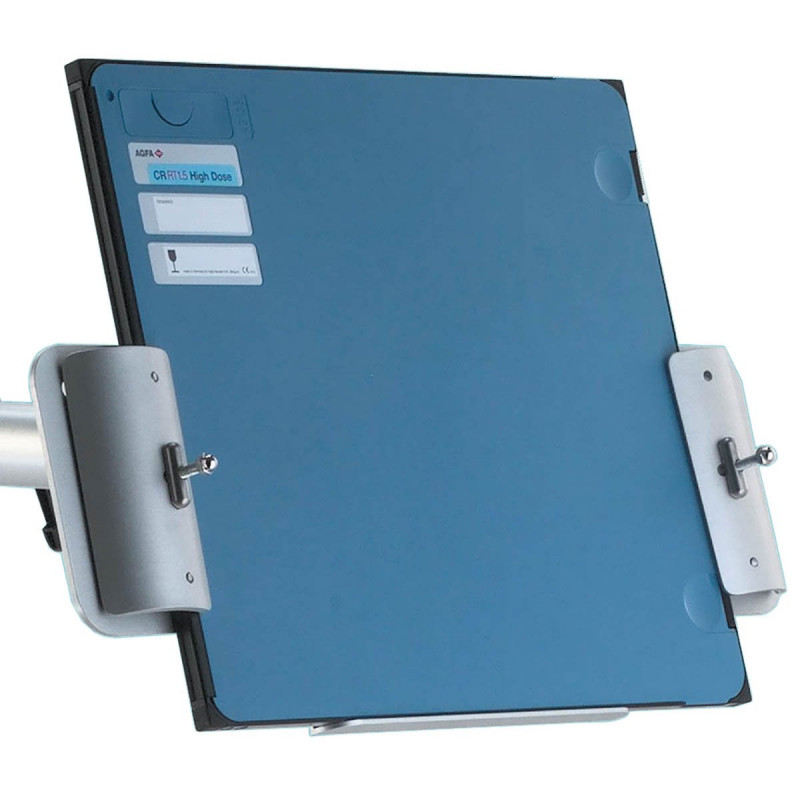

Huestis Flexi-Holder®


Huestis Flex-Holder® significantly reduces retakes caused by improper cassette positioning.  It permits smoother scheduling and superior radiographs saving film, time and labor for cost effective radiographic procedures.

The free-standing model features an extra wide base for maximum stability.  It allows accurate radiographs to be taken from virtually any angle from floor level to 71" + (180 cm) high.  It rolls into position on large, locking casters and tilts the cassette 180° facing straight up, down, or anywhere in between.  This free-standing model accepts virtually all cassettes.

Eliminates Retakes
•  Helps eliminate retakes caused by improper cassette positioning.
•  Replaces inefficient sandbags and other “make-shift”holders.

Versatile Savings
•  Saves time and labor for smoother scheduling and superior radiographs.
•  Saves film and reduces radiation exposure due to minimal retakes.
•  Minimizes patient assistance and discomfort in positioning.

Flexible Arm Movement
•  Radiographs can be taken from any angle from floor level to 71 in (180 cm).
•  Tilts cassette 180° facing straight up, straight down or anywhere in between
•  Rotates cassette 360° clockwise or counterclockwise
•  Arm rotates 360° on vertical column
•  Arm assembly is counter-weighted for easy raising or lowering
•  36" (91 cm) arm

Convenient Ratchet Handles
Ratchet handles can be repositioned easily to help eliminate interference problems when positioning cassettes.

One Hand Operation
A lip on the cassette holder enables the cassette to be inserted with one hand, if necessary.

Accurate Calibration Scales
Column and arm calibration scales provide exact, repeatable angulation.

Easy Operation
Drop cassette against stop and tighten grips.  Adjust visually or by calibration scales.  Roll into place and lock casters.

Diagnostic Applications
•  Three-way studies of acute abdomens
•  Myelograms
•  Fractures where patient is immobilized
•  Lateral decubitus fluid level studies of abdomen and chest
•  Operating room radiography

Therapeutic Applications
•  Radiation therapy verification films (portal films)
•  Localization for tangential breast, isocentric or oblique fields
•  Simulation without fluoroscopy
•  Implant source localization by orthogonal films

Specifications
Base:  19" x 22" (48.4 x 56.1 cm)
Overall Height:  75" (191.2 cm)
Weight:  110 lb (50 kg)
Ships by truck
