Huestis Styro-Former®.


Open Section A: Block Room Products & Accessories(PDF) to view related products. (Opens in a new tab)

Huestis Styro-Former®.

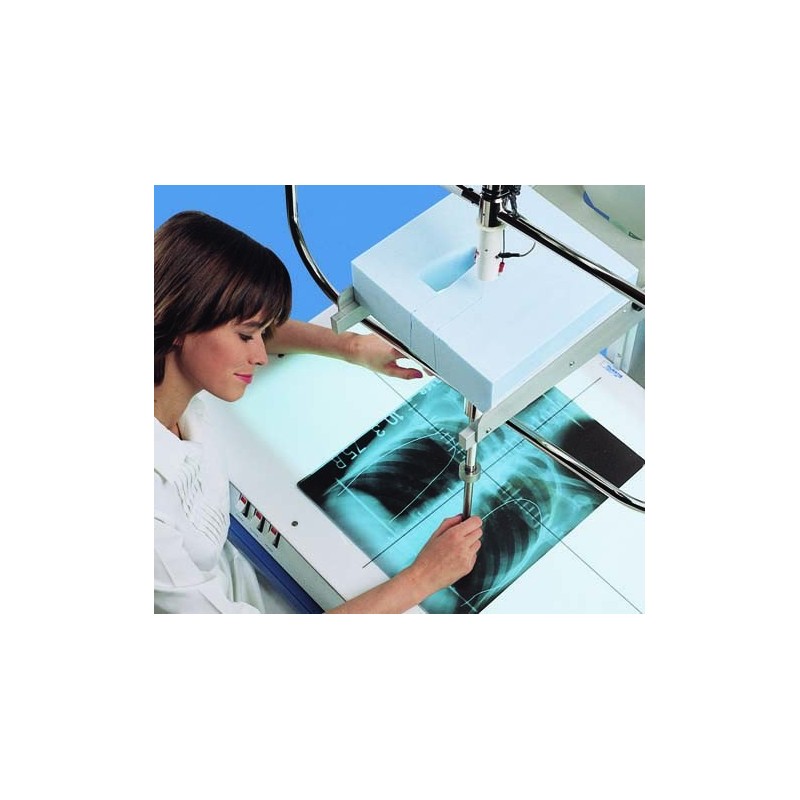

Renowned as the worldwide industry standard, more Styro-Formers® are in use than all other shielding block mold cutters combined.  Styro-Former® offers accurate, easy and fast cutting with minimal training.  A hand-held tracing stylus allows quick radiograph outlining to provide a smooth and efficient block cutting procedure.

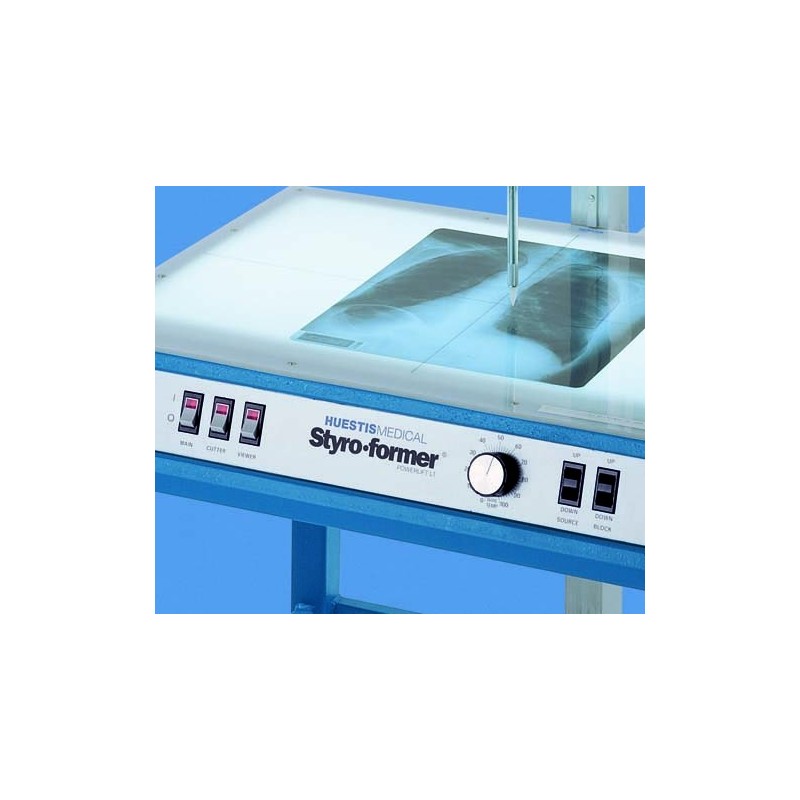

Styro-Former® Power Lift LT features panel-mounted drive controls for both source and block arm distances.  A quick change wire system uses unique thumb screws and a table-mounted measuring template for quick, easy wire changes.

Accurate Cutting
• Manual tracing produces smooth, accurate cuts with minimal training.

• Accurate cuts save time and material.

• Verification light included.

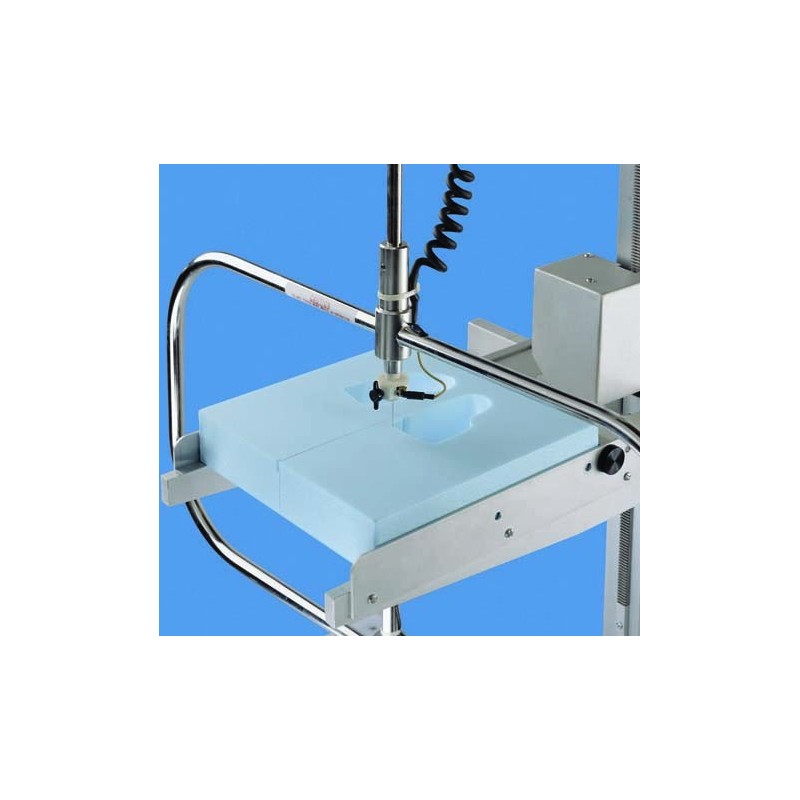

Rigid Box Frame
• Short cutting wire is kept tight in a rigid box frame to eliminate bowing.

• Never necessary to apply downward pressure to keep the wire tight.

• Rigid box frame ensures that cutting wire is precisely aligned between the source point and the block tray.

• Nichrome cutting wire fits into the frames unique electro-mechanical bushings.

• Bushings hold wire with a flat grip, for long wire life and easy wire changes.

• Free cutting wire for life of machine.

The manual lift is a rotating friction drive and calibrated tie-rod system to adjust the source point and block tray position.

Quick, Smooth Operation
• Spring-loaded, Teflon tracing stylus moves freely in every direction.

• Unhampered by limitations of an X or Y axis for complete maneuverability.

• Can be adjusted to any treatment machine for universal application.

• Work area remains stationary at a comfortable desktop working height.

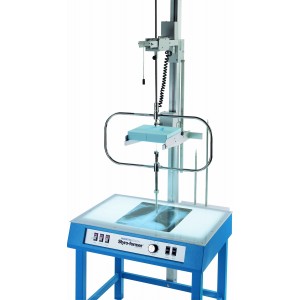

• Free-standing table and calibrated column can be placed in almost any small area without wall attachment.

Standard Foam Block Holders
Included holders position standard 8", 10", or 12" foam blocks.

  120 Vac, 60 Hz, 5 A.
Table Size:  33.5" W x 24" D x 29.5" H (85.1 x 60.9 x 74.9 cm).
Column Height:  8.75' (2.67 m).

The Styro-Former® is FDA registered and CE certified.

Replacement Ni-Chrome Cutting Wire: Item 875-026
