Isocentric Beam Checker 1

Isocentric Beam Checker 1
Item Number :

Isocentric Beam Checker 1.


Open Section U: Quality Assurance Devices, GARD, ISIS, Couch Cubes(PDF) to view related products. (Opens in a new tab)

Isocentric Beam Checker 1.

The Isocentric Beam Checker I (IBC I) is used to precisely find the Isocenter of any radiation therapy machine.  It checks the alignment of side lights or laser beams used for patient set-ups in radiation therapy, conventional tomography and CT scanning.

• Radiation and light-field congruence

• Collimator isocentricity

• Collimator field size accuracy

• Compact and easy to carry

• Laser alignments

• No assembly required

• Gantry isocentricity

• Rugged construction

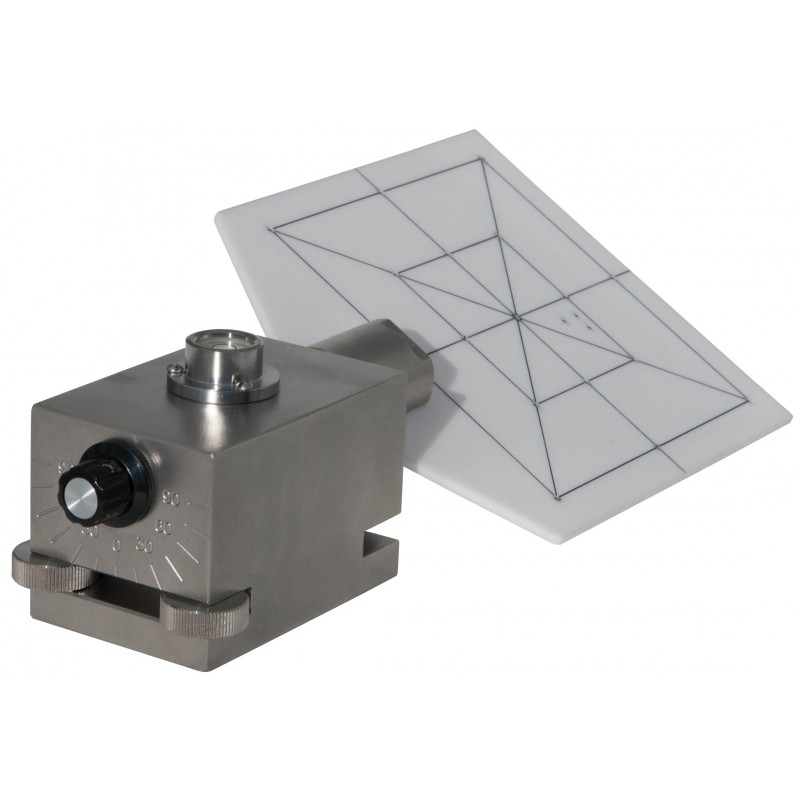

The Isocentric Beam Checker consists of stainless steel base containing three adjustable rubber-tipped legs and built-in bubble level.  Attached to the base is a translucent screen plate which can be rotated 360° in 15° steps.  Inscribed on the plate are 3 field sizes; 2 mm x 2 mm, 5 cm x 5 cm and 10 cm x 10 cm.  The field sizes are outlined with parallel and diagonal lines.  The center of the field and all corners are provided with tungsten markers to project a sharp image of the field on verification films.

  Stainless Steel and Lucite
Size:  9.5" L x 4.7" W x 2.5" H (24.13 x 11.94 x 6.35 cm)
Weight:  3 lb (1.4 kg)
