Large Belly Board

Large Belly Board
Item Number :

Large Belly Board


Open Section T: Positioning, Immobilization, Head Support, Masks, Chair(PDF) to view related products. (Opens in a new tab)

Large Belly Board

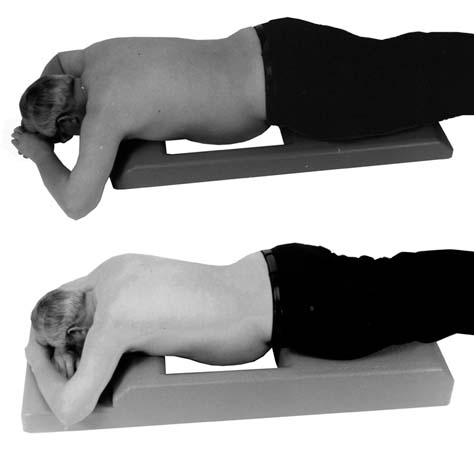

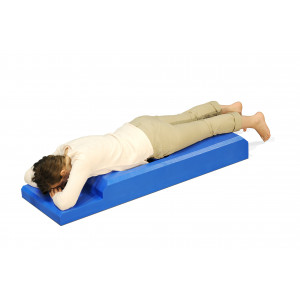

A Belly Board is used to allow the intestinal tract to drop out of the treatment field.  Treatment through the foam material has a low absorption of the beam.  This unit is made of lightweight, non-breakable high density foam and is coated with a durable blue finish for easy cleaning.  The light weight allows for easy handling of the Belly Board.  The soft flexible surface provides patient comfort and helps retain excellent body positioning.  The bottom surface is anti-skid on treatment and simulator couches.  The Belly Board includes one opening reducer that when placed in the opening makes the size of the opening smaller.

When the EXACT Enhance Bar is attached to the Belly Board with the Glue Dots, the belly board can then be indexed using a Lock-Bar or a similar bar.  This will allow positioning the belly board in the same position daily.

Cleaning Instructions:
Soap and Water, 50/50 Bleach / Water or an ammonia solution can be used.

Additional Specifications (for full specs click the data tab):

Opening:  12 1/4" W x 13 3/8" L (31 x 34 cm)
Blue Reducer:  11.8" W x 3.23" L x 7" T (30 x 8.2 x 17.8 cm)

Efficacy of a Belly Board device with CT-Simulation in Reducing Small Bowel Volume Within Pelvic Irradiation Fields.  By Indra J. Das, Ph.D., Int. J. Radiation Oncology Biol. Phys.., Vol. 39, No. 1, pp 67-76, 1977.


Allal AS, Bischof S, Nouet P. Impact of the "belly board" device on treatment reproducibility in preoperative radiotherapy for rectal cancer. Strahlenther Onkol. 2002 May;178(5):259-62. doi: 10.1007/s00066-002-0889-8. PMID: 12082685.

Data Sheet
  • Width: 20" (50.8 cm)
  • Weight: 14 lbs. (6.4 kg)
  • Length: 58" (147 cm)
  • Thickness: 7" (17.8 cm)
  • Material: foam
  • Density: 0.03 g/cm3
