mobileMOSFET XX Wireless Dosimetry System, 20 Dose Points, 4 Reader Modules

mobileMOSFET XX Wireless Dosimetry System, 20 Dose Points, 4 Reader Modules

Item Number :
322-352

mobileMOSFET XX Wireless Dosimetry System, 20 Dose Points, 4 Reader Modules.

Details

Open Section J: Electrometers, Dose Monitoring, MOSFET & Diodes(PDF) to view related products. (Opens in a new tab)

mobileMOSFET XX Wireless Dosimetry System, 20 Dose Points, 4 Reader Modules.

On-line Wireless Dosimetry

The mobileMOSFET Dose Verification System takes MOSFET Dosimetry to the next level.  The mobileMOSFET is a portable, easy to use, seamlessly integrated system that simplifies dosimetry and minimizes QA time.

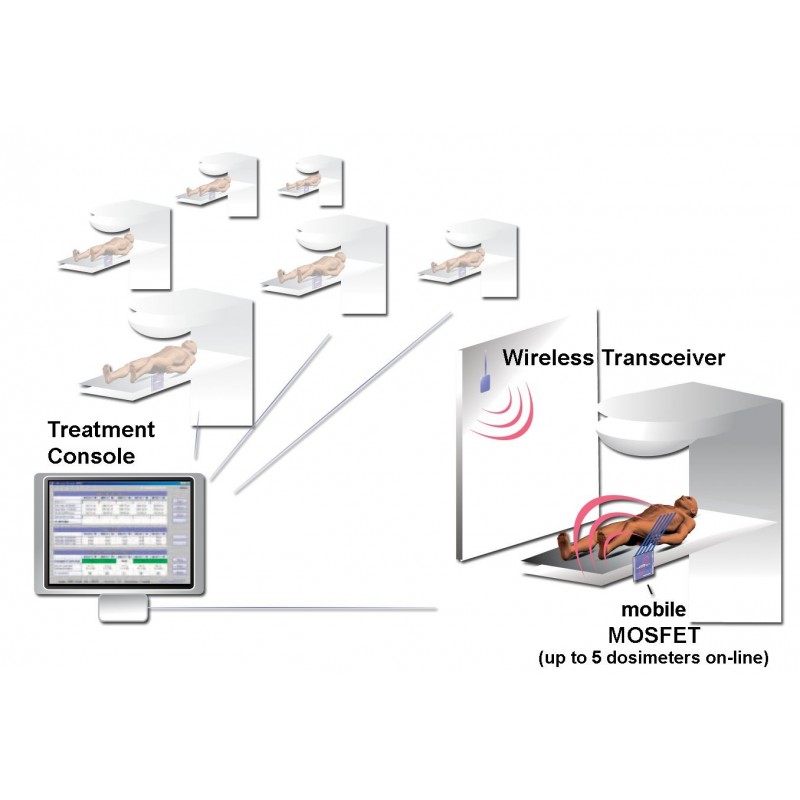

This wireless system is entirely software driven, allowing for remote control of one or more systems from a PC.  The system consists of Remote Monitoring Dose Verification Software, wall-mounted Bluetooth™ Wireless Transceiver and a small Reader Module acting as a channel between the MOSFET and software and provides a final dose report for patient records.  Up to five MOSFETs or one Linear 5ive Array can be plugged into one module.  This provides easy mobility within the treatment room.  The PC is on-line with the Reader Module and dose is obtained in real-time.

Applications
• Routine In-vivo Dosimetry

• One or multiple field measurements

• First Dose; Treatment Plan Verification

• IMRT invivo, QA and phantom work

• Brachytherapy

• IGRT / Tomotherapy

• Radiology

• Intracavitary Measurement

Dose Points

• 1 - 5 on-line, (Up to 40 on-line with additional Reader Modules and transceivers)

Software Features

• Interactive, 2-way on-line communication between a PC and the Reader Module

• Dose obtained in real-time

• Performs all dose data measurements with a few mouse clicks

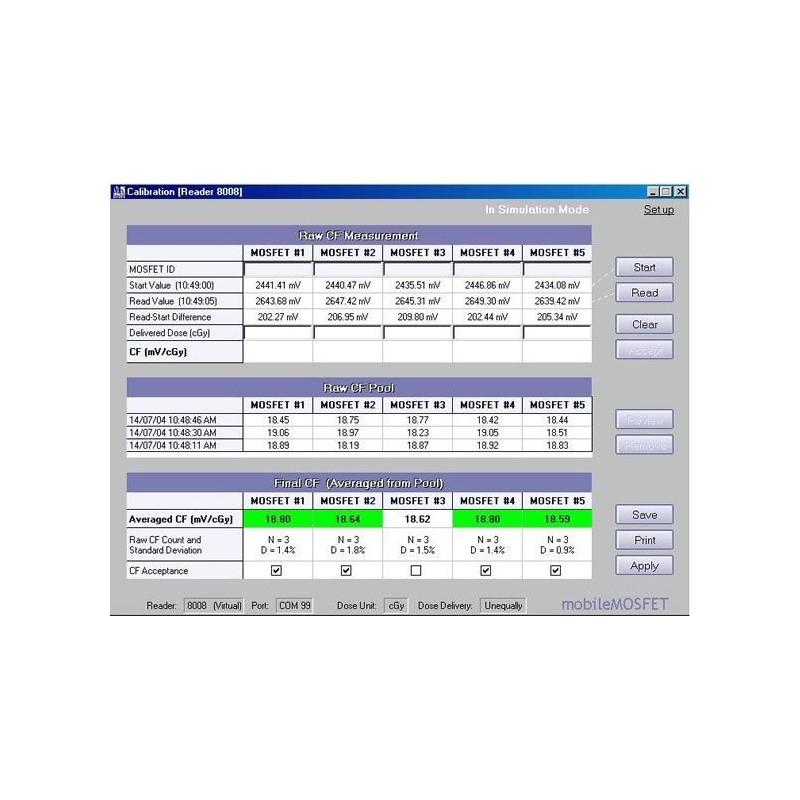

• Calibration feature enables quick and easy calibration of the MOSFETs

• Capability to assign Calibration Factors, Correction Factors and Target Dose to each MOSFET

• Final dose and percent deviation from target are automatically calculated

• Export to MS Excel, Word, PDF and/or text files

• Set interval read times to sample multiple doses during treatment (automatic or manual control)

• With multiple systems and transceivers, one PC can read MOSFETs in multiple treatment rooms simultaneously

• Patient records can be saved/imported, and/or printed and are password protected

• Final dose report provided

The MOSFET Dosimeter
• One dosimeter/calibration factor for all photon/electron modalities

• Isotropic (± 2% for 360°)

• Active region of 0.2 x 0.2 mm

• Permits pinpoint measurement without patient shielding

• Dose-rate and temperature independent

• Unobtrusive in procedures

• Lightweight and flexible

• Multiple dosimeter capability with one Reader

• Standard MOSFET is 2.5 mm wide

• MicroMOSFET is 1 mm wide

• Linear 5ive Array - 5 dose points on one flex

Hardware Features

• Bluetooth™ transceiver (wall mounted)

• Reader Module (17.8 cm x 15.9 cm x 4.2 cm)

• Wireless (up to 10 meters), portable and mobile

• Contains reader, Bluetooth™ transceiver, dual bias supply settings (high and standard), ports for 5 MOSFETs and a port for 1 Linear 5ive Array

• One Reader Module can be used for 1-5 MOSFETs or one Linear 5ive Array

• Battery Operated (Rechargeable; >20 hours of typical use)

• Built-in smart charger (<3 hours)

• Software supports up to 8 readers and 40 MOSFETs simultaneously

• Portability between multiple treatment rooms


Wireless Room Expansion Package

Your mobileMOSFET system with Bluetooth™ can easily be used in multiple rooms with the installation of Wireless Room Expansion Packages. The package is also compatible with previously installed mobileMOSFET wireless dosimetry systems.


MOSFET Sensitivity

Under Full Build-Up:
1 mV/cGy on standard bias
2.7 mV/cGy on high sensitivity bias

Under X-Ray Energies:
9 mV/R on high sensitivity bias



mobileMOSFET Component Details

The mobileMOSFET system is expanded to twenty dose points by the addition of more Reader Modules.  All four Readers are controlled from the same PC through a single Bluetooth™ transceiver.  The system can accommodate up to eight (8) Reader Modules simultaneously for a total of forty (40) dose points.

System Components Include:
• (4) Reader Module
• (20) Reinforced Standard Dosimeters
• Bluetooth Wireless Transceiver and 2 m/6’ Cable
• (2) Medical Universal Power Adapter
• 15m/50’ RS-232 Serial Cable (PC-to-Reader Connection)
• mobileMOSFET Software
• (1) Brass Build-up Cap (0.63cm) for Photons
• (1) 1 cm Tissue Equivalent Build-up Cap
• Calibration Jig (Acrylic, 30cm x 30cm x 1cm, MOSFET grooves)
• USB Serial Adapter

Note: 1 cm Tissue Equivalent Build-up Cap is no longer included or available for purchase
