Polycarbonate Beam Spoiler, 3/8" (1 cm) Thick, for Rotational Total Body Irradiation (TBI) Stands

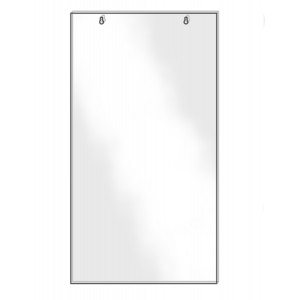

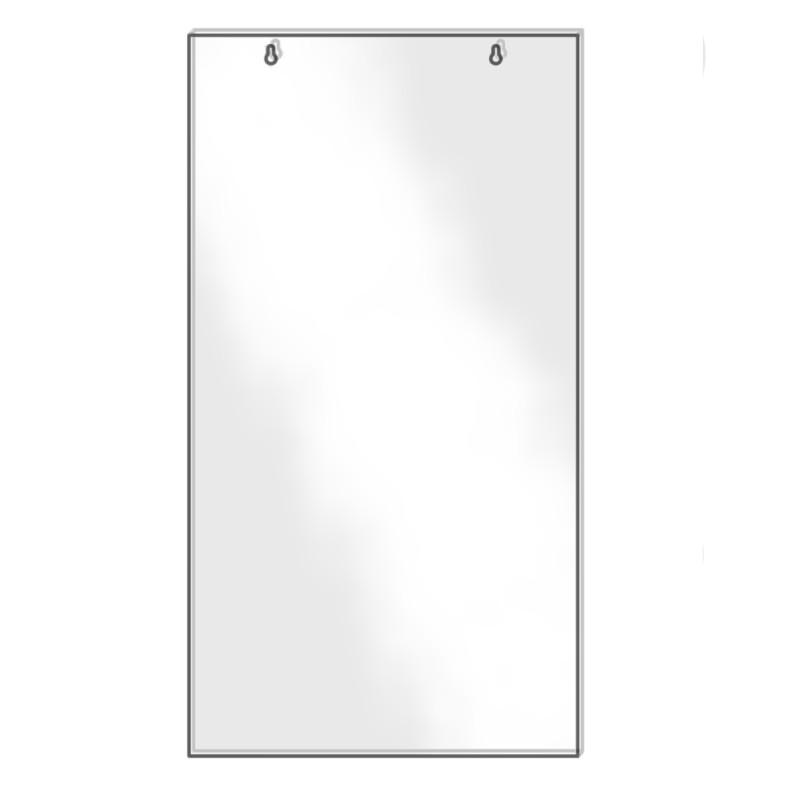

Polycarbonate Beam Spoiler, 42" W x 96" L x 3/8" (1 cm) Thick, for Rotational Total Body Irradiation (TBI) Stand
Beam spoilers are primarily used in radiation therapy to alter a high-energy radiation beam before it reaches the patient by increasing the surface dose by generating lower-energy secondary electrons in the beam path. This reduces the usual “skin-sparing” effect of high-energy photon beams, which is useful when the treatment target includes the skin or near-surface tissue, such as in total body irradiation or some head/neck and breast treatments.
This device is intended to work with RPD rotational position TBI stands. The beam spoiler is attached directly to the TBI with its integrated beam spoiler hangers.
Compatible with:
Specifications
Thickness: 3/8" (0.95cm)
Material: Polycarbonate
Acrylic Density: 1.19 g/cc
Size: 42" W x 96" L (106.7 x 243.8cm)
Weight: Approx. 64 Lbs (29kg)
All RPD Beam Spoilers
| Item # | Material | Width | Height | Thickness | Rotatable | Intended Use |
| 495-005 | Polycarbonate | 60" (152.4 cm) | 84" (213.4 cm) | 3/8" (0.95 cm) | Yes | Beam Spoiler Frame |
| 495-006 | Polycarbonate | 60" (152.4 cm) | 84" (213.4 cm) | 1/2" (1.27 cm) | Yes | Beam Spoiler Frame |
| 495-007 | Acrylic | 60" (152.4 cm) | 84" (213.4 cm) | 3/8" (0.95 cm) | Yes | Beam Spoiler Frame |
| 495-008 | Acrylic | 60" (152.4 cm) | 84" (213.4 cm) | 1/2" (1.27 cm) | Yes | Beam Spoiler Frame |
| 495-600-84 | Polycarbonate | 38" (96.5 cm) | 86" (218.4 cm) | 3/8" (0.95 cm) | No | Fixed TBI Stands |
| 495-600-86 | Polycarbonate | 38" (96.5 cm) | 86" (218.4 cm) | 1/2" (1.27 cm) | No | Fixed TBI Stands |
| 495-600-83 | Acrylic | 38" (96.5 cm) | 86" (218.4 cm) | 3/8" (0.95 cm) | No | Fixed TBI Stands |
| 495-600-85 | Acrylic | 38" (96.5 cm) | 86" (218.4 cm) | 1/2" (1.27 cm) | No | Fixed TBI Stands |
| 495-605-84 | Polycarbonate | 42" (106.7 cm) | 96" (243.8 cm) | 3/8" (0.95 cm) | No | Rotational TBI Stands |
| 495-605-86 | Polycarbonate | 42" (106.7 cm) | 96" (243.8 cm) | 1/2" (1.27 cm) | No | Rotational TBI Stands |
| 495-605-83 | Acrylic | 42" (106.7 cm) | 96" (243.8 cm) | 3/8" (0.95 cm) | No | Rotational TBI Stands |
| 495-605-85 | Acrylic | 42" (106.7 cm) | 96" (243.8 cm) | 1/2" (1.27 cm) | No | Rotational TBI Stands |
