Remote Alarm Unit with 20 Foot Cable for Radiation Area Monitor, Model 375/2

Remote Alarm Unit with 20 Foot Cable for Radiation Area Monitor, Model 375/2
Remote Alarm Unit with 20 Foot Cable for Radiation Area Monitor, Model 375/2
Item Number :
337-105

Remote Alarm Unit with 20 Foot Cable for Radiation Area Monitor, Model 375/2

Details

Open section N-Dosimeters_Monitors_Meters(PDF) to view related products. (Opens in a new tab)

Remote Alarm Unit with 20 Foot Cable for Radiation Area Monitor, Model 375/2

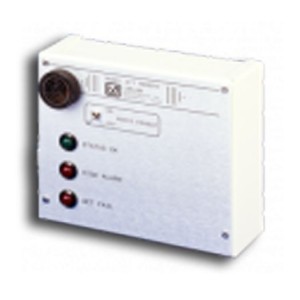

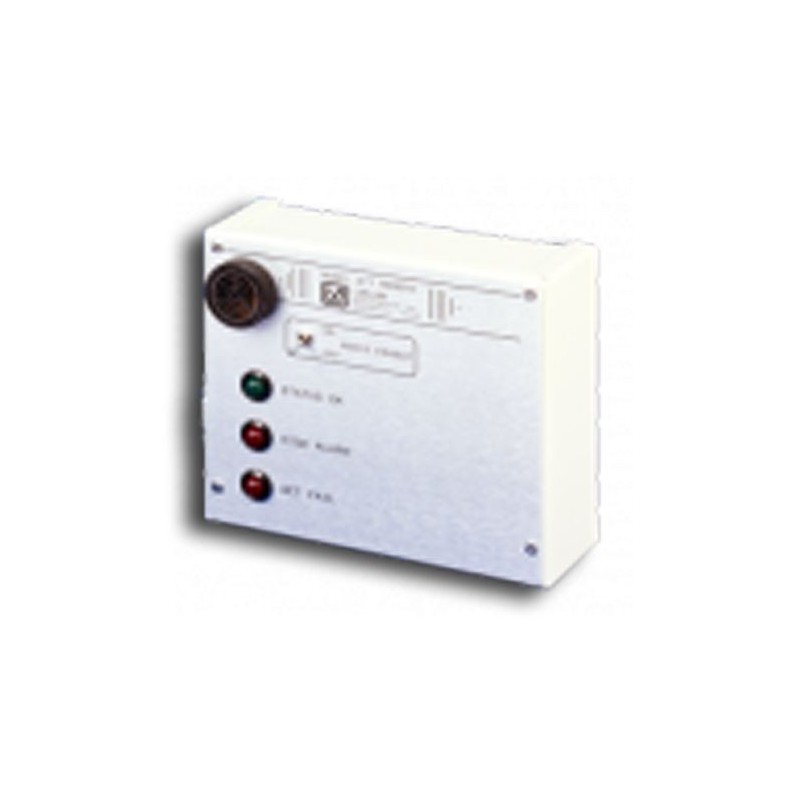

This optional Remote Display/Annunciator unit duplicates the alarm indication functions of the main unit at a remote location up to 1000 feet. It features a green status light, a red light for high alarm, and Sonalert for audible alarm with a disable switch. The remote unit is powered by the monitor and available with either a 20 ft or 50 ft cable.


Indicated Use: Remote display/annunciator for the Model 375 Area Monitors

Audio: Sonalert-type speaker with enable/disable switch (greater than 68 dB at 0.61 m [2 ft])

Radiation Readout Display: None

Status Indicators:

Status OK: Green LED

High Alarm: Red LED

Det Fail: Red LED

Controls:

Audio: ON/OFF

Remote Alarm Relay: Enable/Disable

Power Supplied By: Model 375/2 instrument, 20 ft. (6.1 m) or 50 ft. (15.2 m) cable provided

Connector: 9-pin “D” connector

Construction: Aluminum with ivory powder coat finish

Temperature Range: -4 to 122°F (-20 to 50°C), may be certified to operate from -40 to 150°F (-40 to 65°C)

Size: 7" H x 6" W x 2"D (17.8 x 15.1 x 5.1 cm)

Weight: 1.5 lb (0.7 kg)
