Total Body Irradiation (TBI) Stand for Photons or Electrons

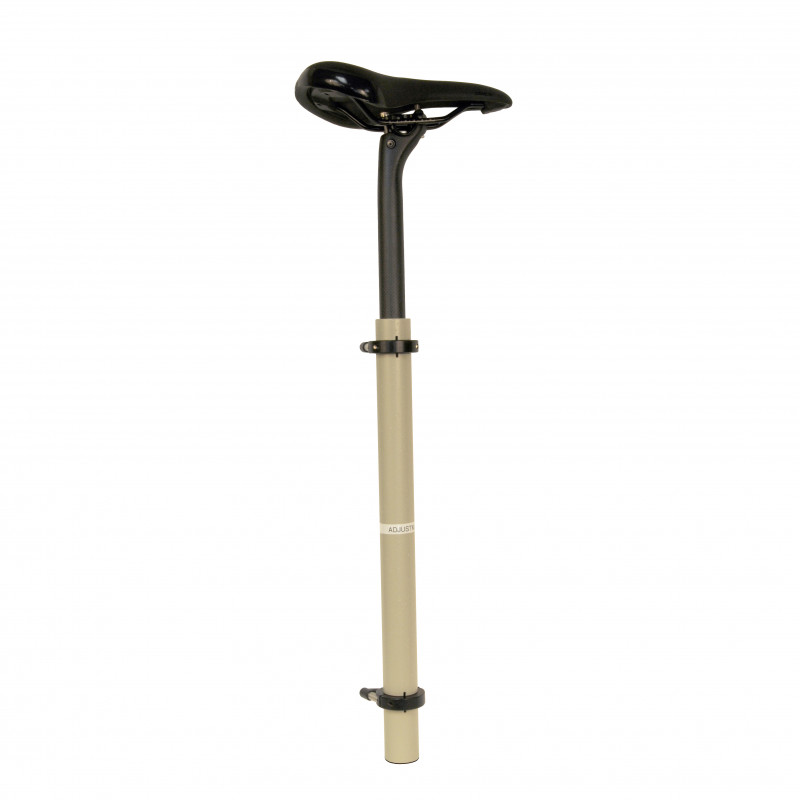

The platform of the Total Body Stand is in the lowest position at 3" (7.6 cm) from the floor and is adjustable upward in 1" (2.5 cm) increments.  This will allow centering the patient to the central axis of the beam.  The platform is made of Gray PVC covered with non-slip vinyl material that is marked in 60° increments and has a mounting hole for the seat post.  Long and short seat posts are included to provide maximum adjustment, in 1/4" (0.64 cm) increments, of the seat height.  The seat height is determined and the seat is locked to the seat post.  The seat angle is set by rotating seat post and locking when position is selected.

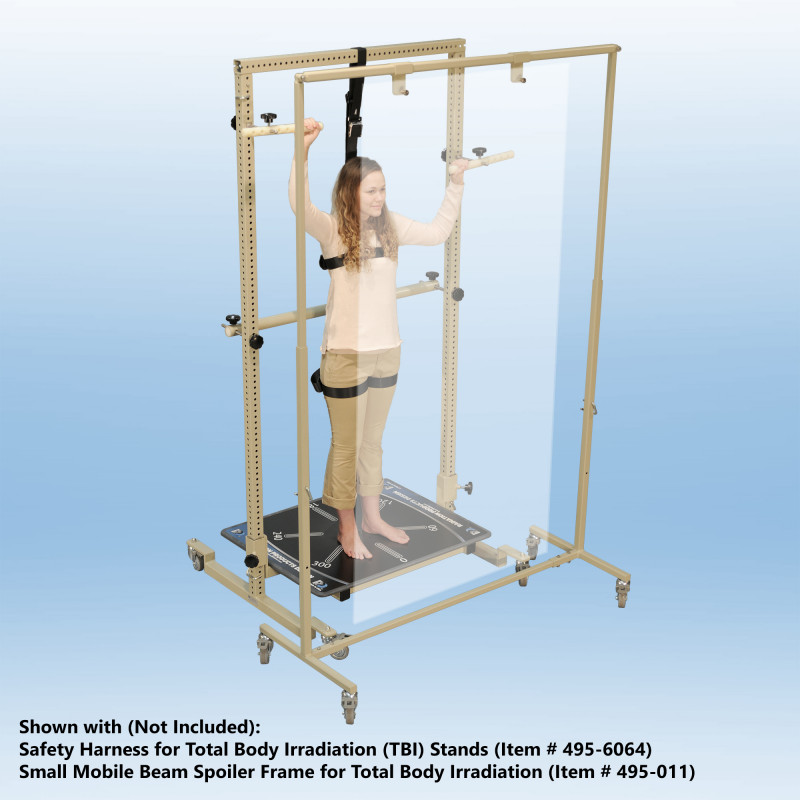

The Total Body Stand frame is made of 2" (5 cm) steel tubing.  The frame consists of 2 “T” vertical posts and a top stabilizer bar.  Holes spaced 1" (2.5 cm) apart on the vertical posts allow easy adjustment of all attachments.  The top stabilizer bar and vertical “T” posts are removable for easy breakdown and storage. Two (2) beam spoiler hanger assemblies attach to the top stabilization bar. The stand has 4 swivel locking casters which allow easy movement and positioning.

A polycarbonate block holder can be mounted on the front of the vertical posts to support lung blocks or other shields.  A stainless steel cassette holder can be mounted on the rear of the vertical posts. The back rest and hand grips can be used at any location on the vertical posts.

The polycarbonate block holder and the block tray for the block room have the exact same hole pattern.  Tungsten pins can be inserted into the block holder as alignment markers.

The Total Body Irradiation Stand for Photons or Electrons Includes:
Frame and platform.
2 adjustable seat posts.
Seat.
2 hand grips.
Back rest.
Cassette holder.
Polycarbonate block holder.
Tungsten pins.
A block tray for the block room.
2 beam spoiler hanger assemblies.

Specifications
Overall Size:  45" W x 43 1/4" L x 93" H (114 x 110 x 236 cm)
Overall Weight:  202 Pounds

Platform Size:  38" W x 31" L (97 x 79 cm)

Adjustment from Floor:  3" (7.6 cm) and up in 1" (2.5 cm) increments

Optional Accessories:

Item 495-6004:

TBI Chin Rest Assembly

Item 495-6005:

TBI Lung & Kidney Adjustable X-Y Blocking System

Item 495-6064:

Safety Harness, attaches to the top stabilizer bar and prevents a patient from falling.

Item 495-011:

Small Mobile Beam Spoiler Frame for TBI Stands

Item 495-600-83 through 495-600-86:

Beam Spoiler (beam degrader) is available in 3/8" (1 cm) or 1/2" thick (1.3 cm) acrylic or polycarbonate.  The beam spoiler measures 38" W x 96" L.

Acrylic Density:  1.185 g/cc
Polycarbonate Density:  1.2 g/cc

Item 936-583 through 936-627:

Tungsten Eye Shields with Aluminum Caps

Item 935-5831 through 935-6272:

CT/MR Dummy Eye Shields

Item 495-603:

Wedge Tray Flattening Filter for TBI, 6 MeV, Varian III

Item 495-604:

Wedge Tray Scale for TBI Isodose Curve, Varian III
