Tungsten Eye Shield, MEDIUM, 3mm Thick with Aluminum Caps

Open Section X: Shielding, Eye, Ear, Testicle, Moldable Matrix, Grid, Sheets, Blocks(PDF) to view related products. (Opens in a new tab)

Tungsten Eye Shield, MEDIUM, 3 mm Thick with Aluminum Caps.

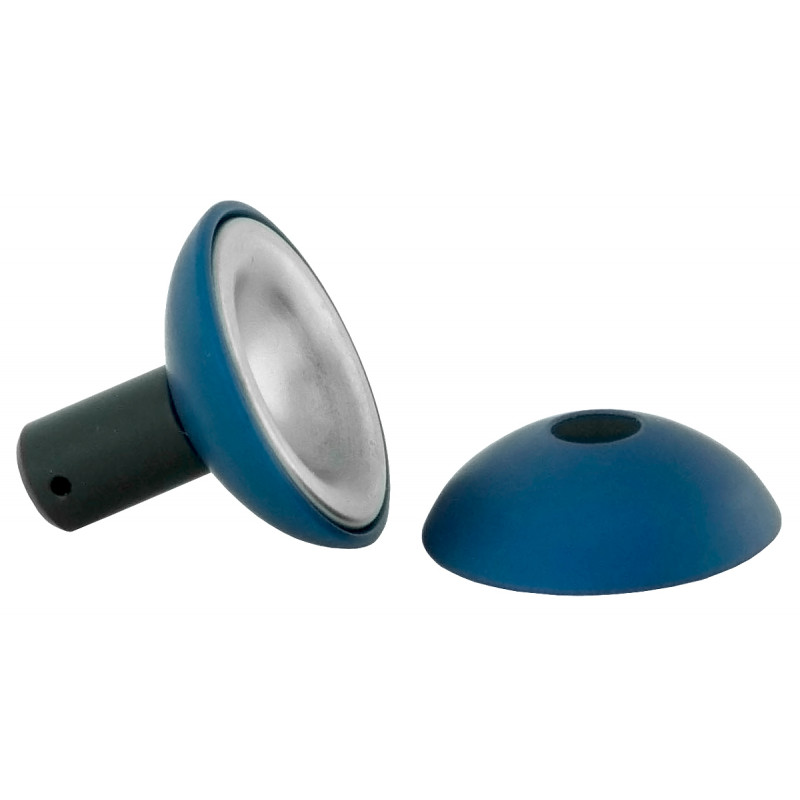

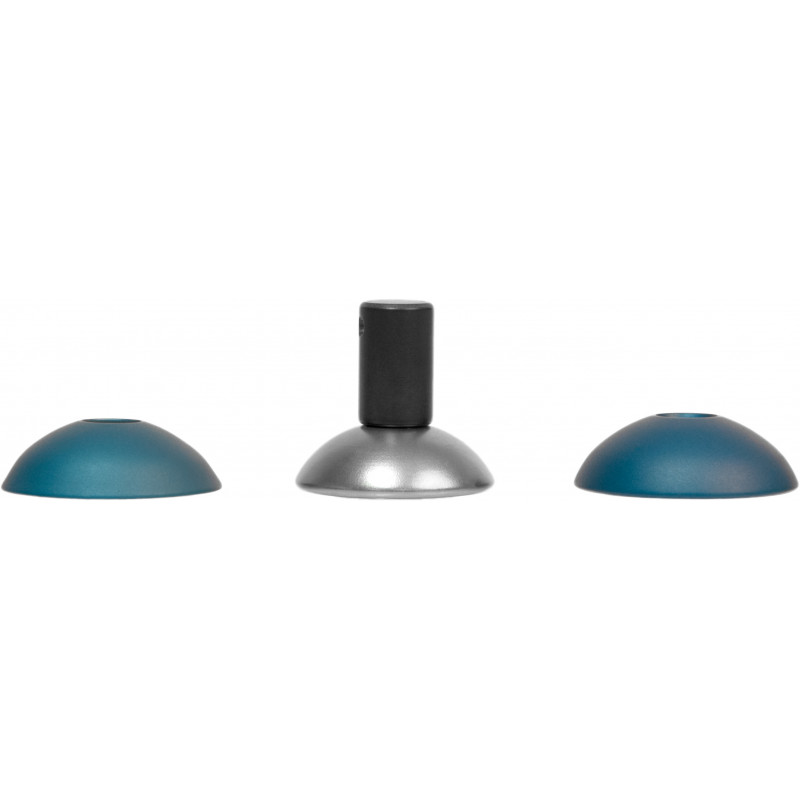

The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid.  The eye shield can be used without the aluminum cap when placed superficially.  They have less transmission than other eye shields

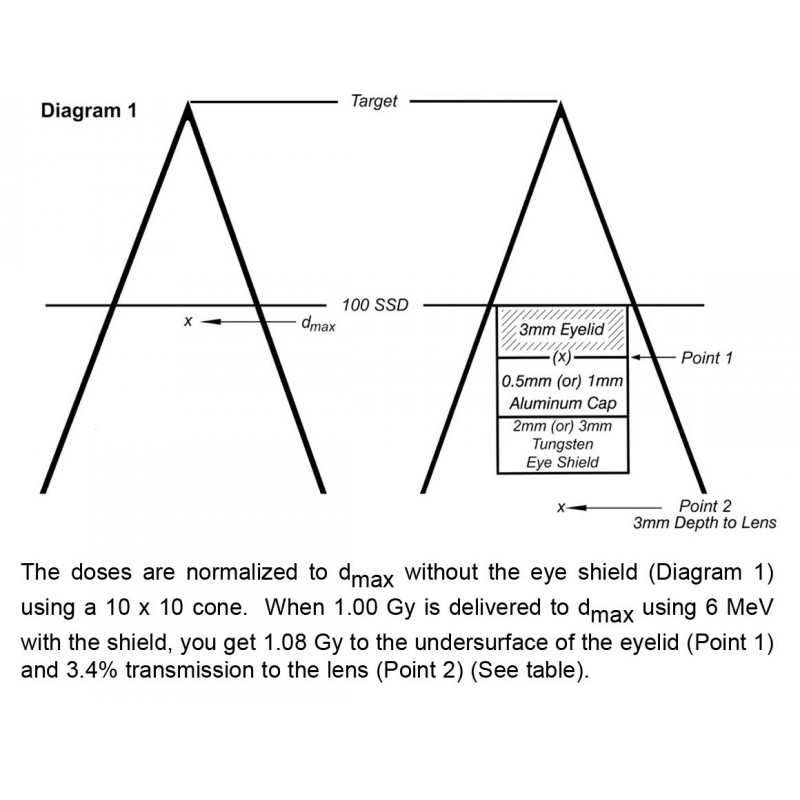

Recommendations Based on Transmission Values:

The 2 mm tungsten eye shield should be used for 6 MeV, and the 3 mm tungsten eye shield should be used for 9 MeV.  These tungsten eye shields are not recommended for use above 9 MeV.

The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.

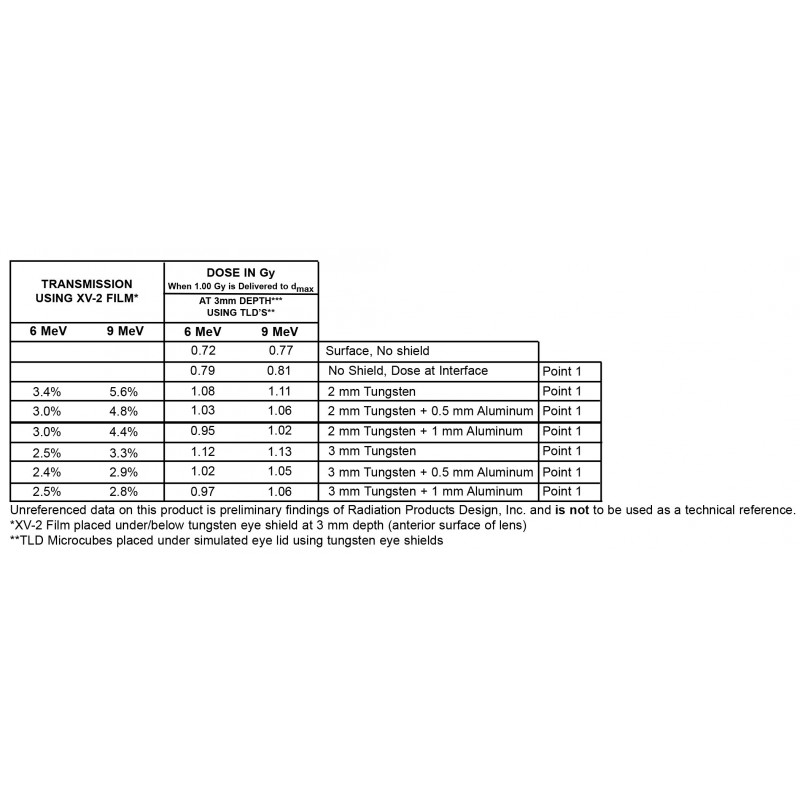

See 936Chart in the Documents Tab.

Specifications
Tungsten Density:  17 g/cm³
Aluminum Density:  2.718 g/cm³
Thickness: 3 mm

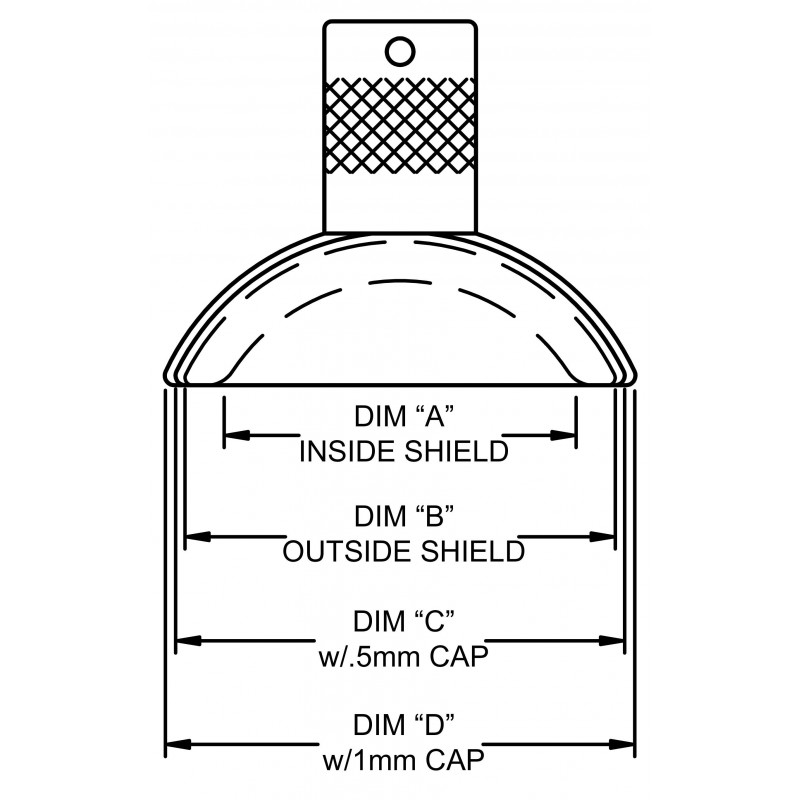

Dimension (A) Inside Shield:  14.4 mm
Dimension (B) O.D. Shield:  20.8 mm
Dimension (C) O.D. with 0.5mm Cap:  22.7 mm
Dimension (D) O.D. with 1.0mm Cap:  23.5 mm

Sterilization:  Click Documents tab

Related Readings:

Weaver RD, Gerbi BJ, Dusenbery KE. Evaluation of eye shields made of tungsten and aluminum in high-energy electron beams. Int J Radiat Oncol Biol Phys. 1998;41(1):233-237. doi:10.1016/s0360-3016(97)00905-x

Wang D, Sobolewski M, Hill R. The dosimetry of eye shields for kilovoltage X-ray beams. Australas Phys Eng Sci Med. 2012;35(4):491-495. doi:10.1007/s13246-012-0166-9
