Water Transfer Tank with Electric Pump - 60 Gallon

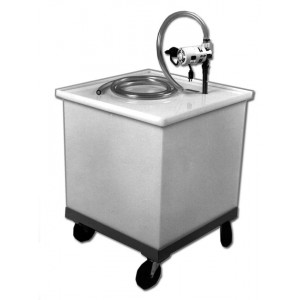

The 60 gallon Water Transfer Tank is molded of polyethylene in one piece to eliminate seams and stress areas.  The 1/4" (0.64 cm) wall thickness will bow slightly when filled with water.  The water level will show through the tank wall.  A mark can be made on the outside of the tank for the fill capacity of your Water Phantom.  A steel frame supports the transfer tank with four 5" (12.7 cm) diameter swivel casters to allow easy movement.

The removable top is made of 1/2" thick (1.27 cm) polyethylene with two holes.  A copper pipe inserted through the stand-off hole touches the bottom of tank.  This pipe is attached to one end of a 45 gallon/8 minute pump and the other end is attached to 10' (3 m) of clear vinyl tubing.  The tubing is put into the Water Transfer Tank from the top for filling.  To pump the water from the water phantom back into the Water Transfer Tank, simply reverse the water connections on the pump.  A faucet adapter is included for initial filling of the transfer tank, using the vinyl tubing.

Specifications
Tank Dimension:  24" x 24" x 24" (61 x 61 x 61 cm)
Overall Dimension:  26" x 26" x 43" (66 x 66 x 109 cm)
Pump:  115V VAC, 1.6 Amps, thermal protection
Shipping Weight:  83 lb (38 kg)
