Delclos Mini-Ovoid Long Handle Stainless Steel Pivot Applicator Set with Sterilization Tray.
Delclos Mini-Ovoid Long Handle Stainless Steel Pivot Applicator Set with Sterilization Tray.

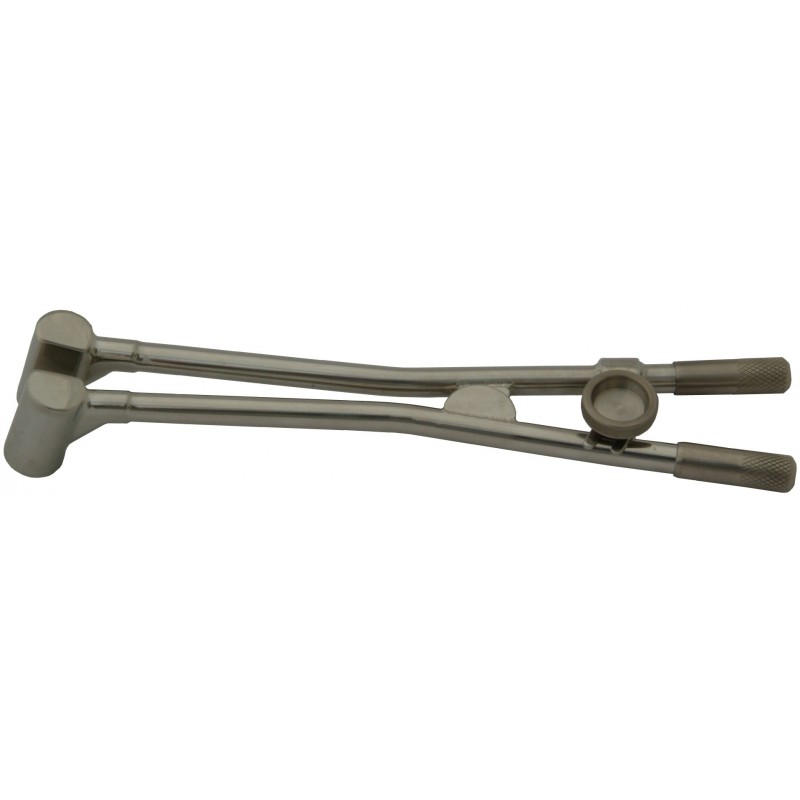

The Delclos Mini-Ovoid Long Handle Afterloading Applicator Set with Stainless Steel Pivot was designed for the patient with a narrow or tortuous vault that will not accommodate the round ovoid of the standard Fletcher-Suit Applicator. The ovoid is flattened medially to accommodate a very small anatomy. The flattened area results in an increased dose to the cervix. The handle is 19 cm long to the ovoid center. The ovoids are 12.8 mm in width, 30 mm high, have a 15° angle and do not have shielding. The handle is stainless steel for durability with a lightweight titanium knob and lightweight titanium ovoid handle caps. The handle is completely Heli-Arc welded at all joints including pivot and locking for unbreakable joints. The applicator bucket carriers accommodate Cesium137 sources up to 3.2 mm diameter x 20 mm long. A hole in the bucket carrier allows the user to push the source out, if the source gets stuck inside the bucket carrier. The stainless steel tandems are marked every 2 cm over a 12 cm range. Optional items available include Stainless Steel Tandem Support Bracket with 1/16" Allen Wrench (Item 970-229), 2.0 cm, 2.5 cm and 3.0 cm diameter Tungsten Shielded High Temperature Plastic Ovoid Caps (Items 970-650-40 to 970-650-45), Cesium137 Tube Sources (Items 067-6510 to 067-6540) and Tungsten Dummy Sources (Item 985-030).
The Delclos Mini-Ovoid Long Handle Stainless Steel Pivot Applicator Set Includes:
(1) Applicator with Stainless Steel Pivot and Two Bucket Carriers
(4) Stainless Steel Tandems and Caps (15°, 30°, 45°, and 60°)
(1) Cervical Stops
(2) Flagged Cervical Stops
(1) 3/32" Allen Wrench
(4) Plastic Tandems and Pushers for Sources

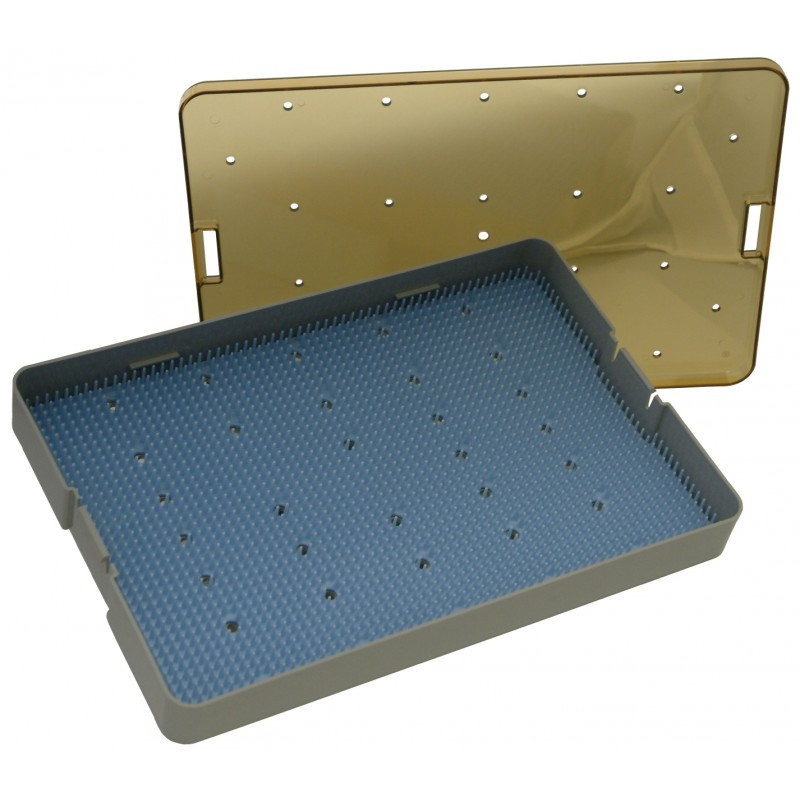

(1) Sterilization Tray
