Digital Level - Dual/Single Axis Protractor with Magnetic Base

Digital Level - Dual/Single Axis Protractor with Magnetic Base
Item Number :
352-245

Digital Level - Dual/Single Axis Protractor with Magnetic Base

Details

Open Section P: Measuring, Levels, Barometers, Thermometers & Rulers(PDF) to view related products. (Opens in a new tab)

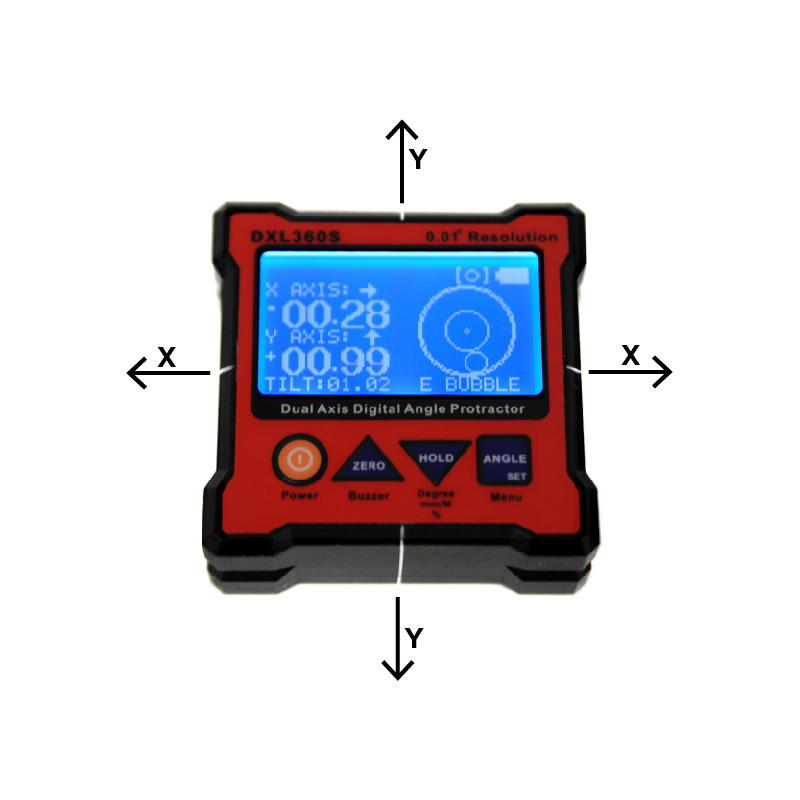

Digital Level - Dual/Single Axis Protractor with Magnetic Base

Reads X and Y Axis Simultaneously



• X and Y White engraved lines for set-up
• Radiation Therapy 3 axis table tilt
• High accuracy 0° ±20° (±0.05°), high resolution 0.01°
• Dual and Single axis with LCD back lighted angle display
• V Shape case to fit on pipe.
• 5 Side Magnetic base
• Audible alarming at settable angle range, any angle measurement
• Rechargeable by connecting the USB cable to level and a computer's USB port

The level is used in Radiation therapy on the 3 axis treatment table tilt, gantry rotation and collimator rotation. The level provides a digital readout of angle in the X and Y axis simultaneously.
Gyro technique are used for measurements of any angle. The level has X and Y white engraved lines on each side which are used to set-up squareness of level with table and laser cross hairs.

Includes: Digital Protractor and USB cable for charging battery.



Specifications

Accuracy:
0° ±20°: ± 0.05°
20° to 70°: ± 0.1°
90° ±20°: ± 0.05°
Measuring range: Single axis: 360° , Dual axis: ±40°
Resolution: 0.01°

Response time: <0.4 second,
Audio sound: 60db @ 30cm
Zero offset drift angle per °C: 0.0058° (typical)
Operating temperature: 0 to 50°C
Storage temperature: -10 to 60°C
LCD with backlight
Supply Power: Rechargeable Li-Polymer 3.7V
Charger port: 5V 500mA Mini type-B USB port
Power Consumption: Standby: 200uA, Operation: 20mA
Standby Battery Life: 4000 hours
Operating Battery Life: 40 hours
Dimensions: 2.8 x 2.8 x 0.9” (70 L x 70 W x 23mm H )
Magnetic Base: affix at 4 corner
Magnetic Force: N48
Weight: 4.2 oz. (120gram )
