Digital Thermoplastic Water Bath, 200/240 VAC, 1250/1800 Watt, 6.25/7.5 Amps

Digital Thermoplastic Water Bath, 200/240 VAC, 1250/1800 Watt, 6.25/7.5 Amps
Item Number :
278-240

Digital Thermoplastic Water Bath, 200/240 VAC, 1250/1800 Watt, 6.25/7.5 Amps.

Details



Open section D-Positioning_Immobilization_Products(PDF) to view related products. (Opens in a new tab)

Digital Thermoplastic Water Bath, 200/240 VAC, 1250/1800 Watt, 6.25/7.5 Amps.
Customer MUST Specify the Power Cord Type. (See Image Above)

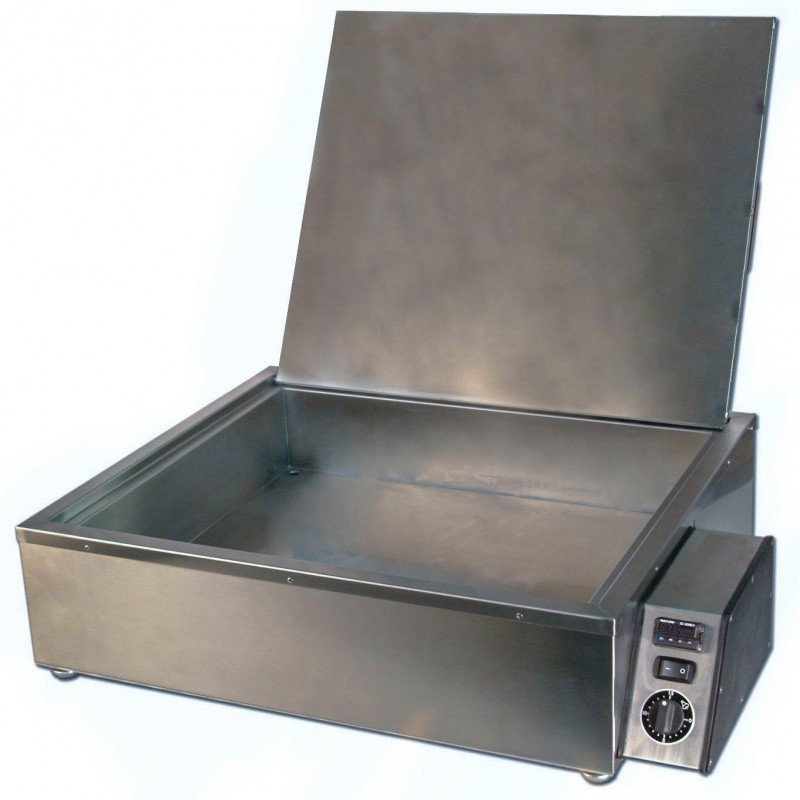

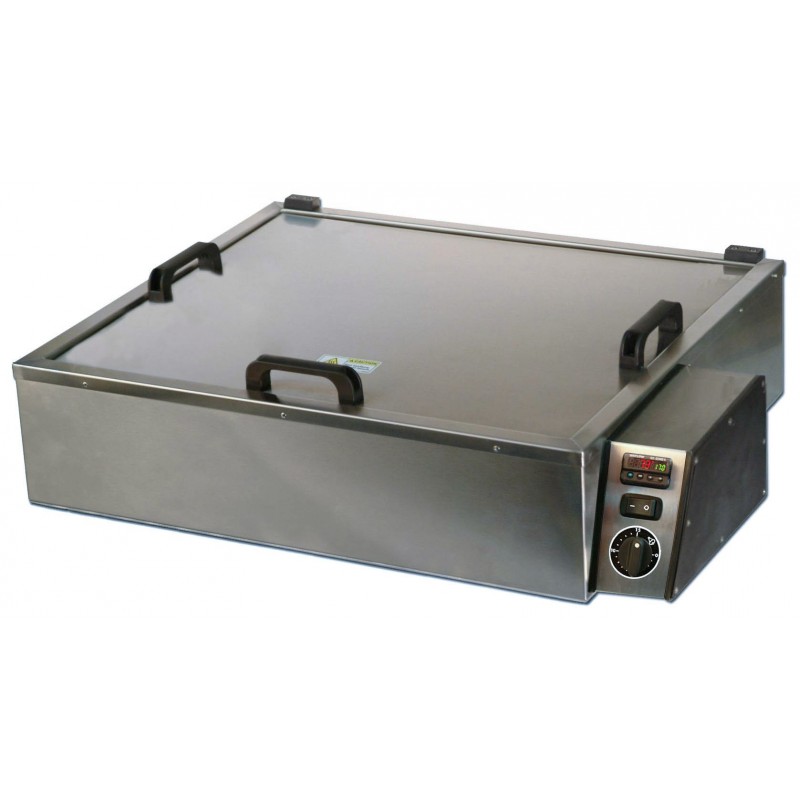

The Digital Thermoplastic Water Bath has a spacious interior to accommodate radiation therapy thermoplastic masks, hip molds and splinting sheets up to 21" x 25" (53 cm x 63 cm).  The insulated stainless steel lid is functionally designed to open completely with just one hand, leaving the other hand free.  Or, the rod hinge can be removed so the cover can be completely removed and placed on a shelf under the unit.  This will allow the unit to sit on a counter with over the counter cabinets.  The rugged design makes it universally ideal for clinical use.  It features polished stainless steel housing, an insulated stainless steel cover and a side mounted, easy to view control panel.

The EZ-Zone® Digital PID Temperature Controller has two digital readouts, temperature and set point. It can maintain water at controlled temperatures between 100°F to 190°F (38°C to 88°C).  The heating element provides even water temperatures throughout the entire unit.

An 6' AC Cord with grounded hospital grade plug is standard.  The units are constructed with a bottom drain for easy water removal and cleaning.  Included is a 5' (1.5 m) vinyl drain hose that attaches to the side drain hose barb fitting and ball valve.

All units need special plugs and receptacles depending on the country.  The temperature displayed is set to Fahrenheit at the factory; however, this can be changed to Celsius by the end user.  All units are single phase, 50/60 Hz.

•  Lift Up Drain Tray for Easy Removal of Thermoplastic.

•  Water Temperature Stability ± 2°.

•  Microprocessor Proportional-Integral-Derivative (PID) Temperature Control.

•  "J" Thermocouple.

•  Open Thermocouple Sensor Will Shut Unit Down.

•  Temperature Displayed in Fahrenheit or Celsius.

•  Easy View Side Panel Controls.

•  Control Panel is Customer Removable.

•  Timer with Three Second Bell Ring.

•  Cover is Cool to the Touch.

•  Hinged or Removable Cover.

•  Exterior Stays Cool Even After Hours of Operation.

•  Heating Elements will not Burn Out if Thermoplastic Water Bath Accidentally Runs Dry.

•  Over Temperature Bi-Metal Disc Thermostat.

•  Large Drain and Hose.

•  Easy to Clean.

•  Stainless Steel Corrosion-Resistant Interior and Exterior.



Item Number Power Cord
278-240A CEE 7
278-240C AS/NZS 3112
278-240D BS 1363
278-240E Afsnit 107-2-D1
278-240G BS 546
278-240H SI 32
278-240I CEI 23-50
278-240L SEV 1011
278-240O NBR 14136
278-240T IRAM 2073
278-240X GB 2099-1 & GB 1002-1
278-240U NEMA-15



Item 278-240 also includes:

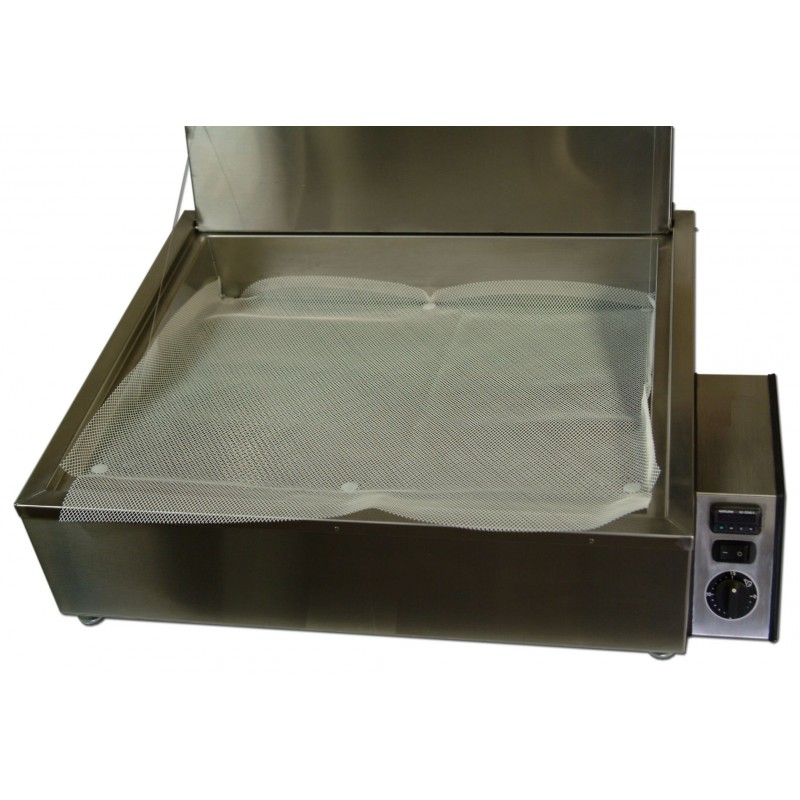

• Perforated Stainless Steel Lift Tray
• Tray Lift Cable
• Netting, Plastic Liner for Perforated Stainless Steel Tray Mesh
Liner Nylon
• Push-in Pins, Ribbed Push-in Pin


Specifications
Water Temperature Range:
  100 to 190°F (37° to 88°C)
Temperature Accuracy:  ± 2°.
High Limit Temperature:  190°F or 88°C.
Temperature Controller Type:  PID.
Thermocouple:  J.
Mechanical Timer:  Up to15 Minutes with a 3 Second Bell Ring.
Power Source:  200/240 VAC 10.5 Amps, 2081/2518 Watts.
Line Frequency:  50-60 HZ.
Electronic Switching:  Triac with Zero Crossover Switching.
On/Off Switch:  20 Amp, Waterproof.
Fused:  Two Fuses for AC Lines.
Power Cord:  6'  3 Wire, 300 Volt, SJT, with Hospital Grade Plug.  See 278_WATERBATH_POWER_SUPPLY under documents to determine the item number with the correct power cord needed.
Over Temperature:  212°F Bi-Metal Disc Thermostats.
Drain:  Ball Valve with Hose Barb.
Drain Hose:  3/8" ID x 5' (1 cm x 1.5 m).

Thermoplastic Water Bath
Insulated Cover:
  Lift Up or Removable, Stainless Steel.
Cover Clearance:  35" W x 32" D x 32" H (89 x 81 x 81 cm).
Interior Dimension:  25" L x 21" W x 5" D (63 x 53 x 12 cm).
Interior Material:  Stainless Steel.
Depth Markings Inside: 2", 3" and 4" (5, 7.6, and 10 cm) Indentations.
Exterior Dimensions:  35" L x 25" W x 8.5" D (89 x 64 x 22 cm).
Exterior Material:  Stainless Steel.
Water:  Use Distilled or Filtered to Prevent Mineral Deposits from Forming In Thermoplastic Water Bath.
