Electric Lift Table, 220VAC, 50/60 Hz.

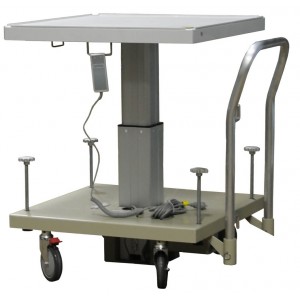

The Electric Lift Table is ideally suited to hold any water tank currently on the market.  A white platform top allows for easy viewing of the crosshairs through a water phantom with a clear bottom.

• Large Platform size accommodates all Water Tanks on the market

• Instantaneous start and stop movement - no drift

• Removable handle with cord wrap hooks

• Hanger on all four (4) sides for control pendant

• Raised Lip around top edge of table

The table platform has a vertical travel distance of 15.75" (40.0 cm).  In the lowest position the top of the platform is 24.75" (62.8 cm) from the floor.  In the highest position the top of the platform is at 40.5" (102.8 cm) from the floor.  The telescoping pillar provides a smooth up and down movement of the platform.  The control pendant has push buttons for up and down movement with instantaneous starting and stopping without any drift.  The table platform has a 0.25" (0.64 cm) high raised lip on all four sides to prevent a water tank or an adjustable base from sliding off the platform.

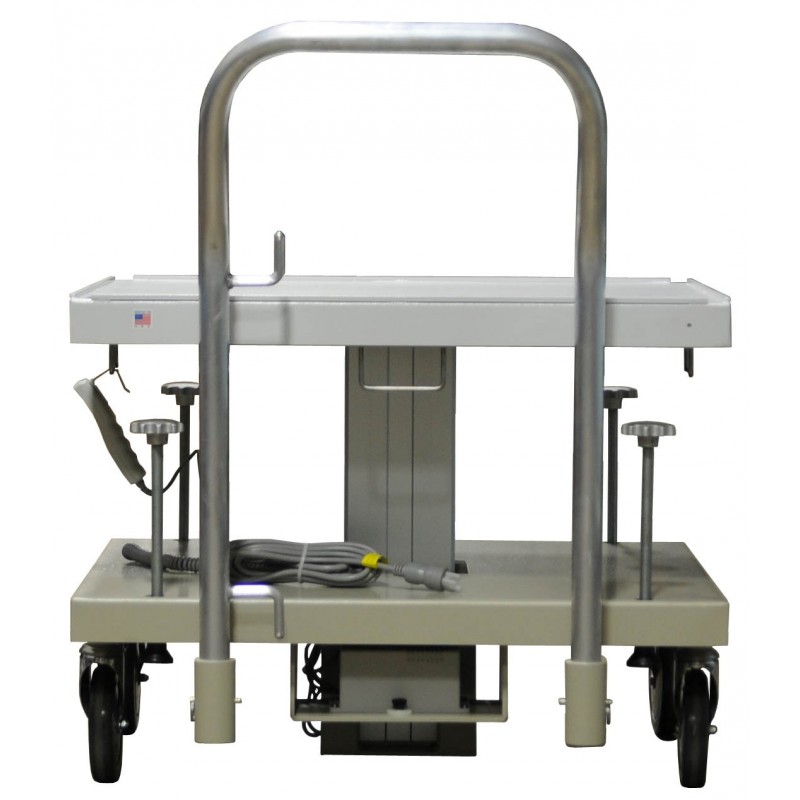

For user convenience there is a control pendant hanger on each of the four sides of the platform.  The handle of the lift table has cord wrap hooks for easy storage of the power cord.  The handle is also removable with a quick release pin on each side of the handle.

The electric lift table has four (4) 6" (15.2 cm) diameter swivel locking casters for ease of moving and locking in position.  Four (4) heavy duty screw leveling legs are used to make sure the platform is level when being used.

Specifications
Capacity:  900 lb (408 kg)
Platform Size:  31.75" x 31.75" (80.65 x 80.65 cm)

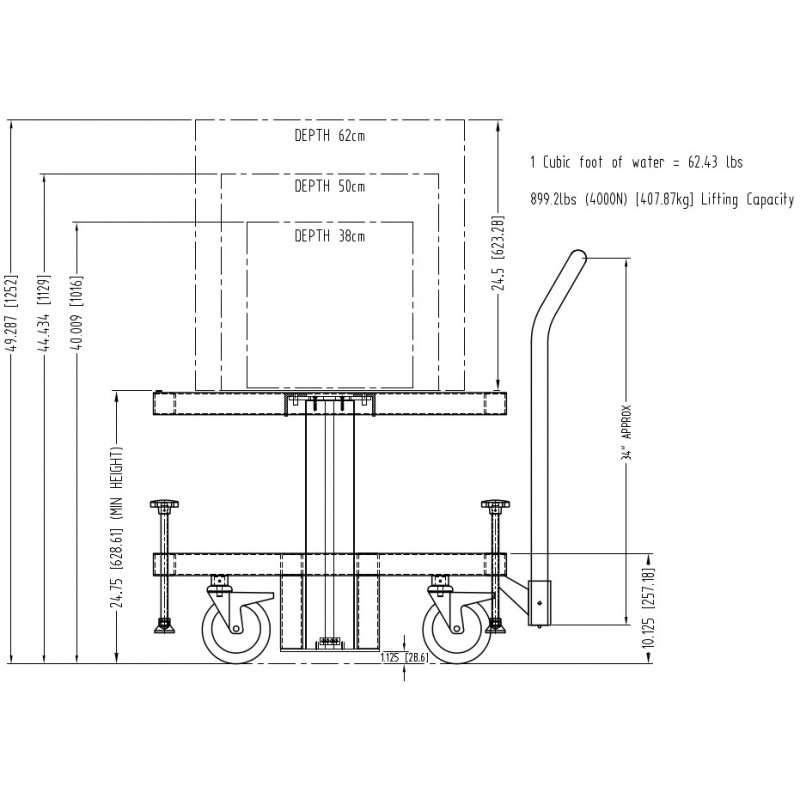

Platform Lowered Height:  24.75" (62.8 cm)

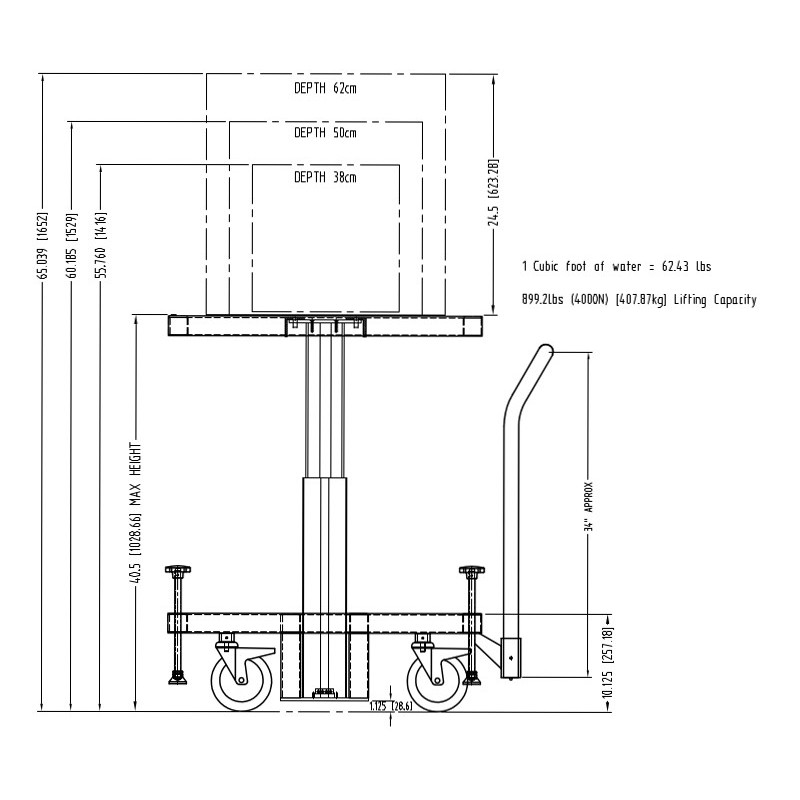

Platform Raised Height:  40.5" (102.8 cm)
Vertical Travel:  15.75" (40.0 cm)
Handle Height:  34" (86.3 cm)

Base Size: 32" x 32"
Casters:  Four (4) - 6" (15.2 cm) swivel locking, rubber
Material:  Steel and Aluminum
Platform Color: Bright White
Frame Color:  Precision Tan
Power:  220 VAC, 156 Watts, 50/60 Hz CEE7
