Electron Mini-Cone, 5.7cm Inside Diameter, 0 Degree

Electron Mini-Cone, 5.7 cm Inside Diameter, 0°.

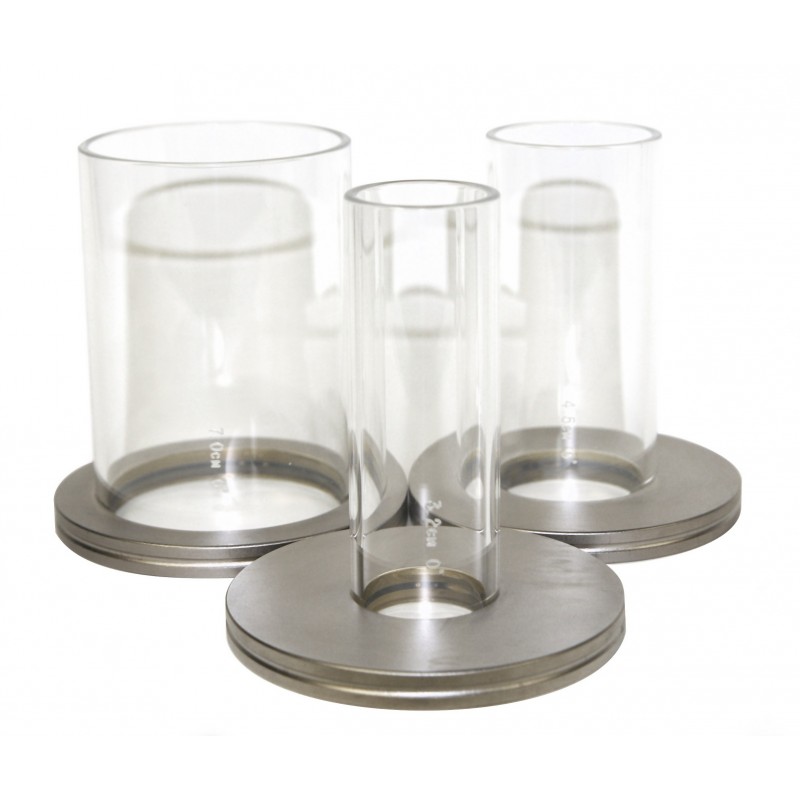

The Electron Mini-Cones are made of 1/8" clear acrylic tubing and affixed to a 3/8" thick x 4" diameter nickel chrome brass ring base.  The Electron Mini-Cones are available in diameters of 1.9 cm, 3.2 cm, 4.5 cm, 5.7 cm and 7.0 cm and can have angles of 15°, 30°, 45°, and 0° on the bottom of the Electron Mini-Cone.

Specifications
Energy Range:  6 MeV to 12 MeV, Transmission at 12 MeV is less than 5% outside of cone
Brass Density:  8.515 g/cm³
Acrylic Density:  1.18 g/cm³

Electron Mini-Cone
Base:  3/8" Thick x 4" Diameter Brass Ring
Material:  1/8" Clear Acrylic
Sterilization:  Gas - Sterrad NX-100
