FSD Shielded Round Ovoid Long Handle, Bracket Pivot Applicator Set, No Sterilization Tray

FSD Shielded Round Ovoid Long Handle, Bracket Pivot Applicator Set, No Sterilization Tray
Item Number :
970-543-1

FSD Shielded Round Ovoid Long Handle, Bracket Pivot Applicator Set, No Sterilization Tray.

Details

Open Section L: GYN / HDR / LDR Applicators & Accessories(PDF) to view related products. (Opens in a new tab)

FSD Shielded Round Ovoid Long Handle, Bracket Pivot Applicator Set, No Sterilization Tray.

FSD Shielded Round Ovoid Long Handle Applicator with Bracket Pivot employs the same features as the Rectangular Handle Fletcher-Suit Afterloading Applicator but is less bulky, lighter, and has an easier source loading procedure.  The lead (density 11.35 g/cm3) shields were replaced with high density 19.3 g/cm3 tungsten.  The handle is 19 cm long to the ovoid center.  The ovoid’s are 20 mm in diameter, 30 mm high, have a 15° angle.  The ovoid's have immovable tungsten shielding for bladder and rectal protection.  The applicator uses a two piece adjustable handle pivot bracket with a tandem support hook.  The applicator is completely Heli-Arc welded at all joints for unbreakable joints.  The applicator bucket carriers accommodate Cesium137 sources up to 3.2 mm diameter x 20 mm long.  A hole in the bucket carrier allows the user to push the source out, if the source gets stuck inside the bucket carrier.  Ovoid caps increase the diameter of the ovoid.  Four ovoid caps, (2) 2.5 cm and (2) 3.0 cm diameter are furnished with the applicator.  The stainless steel tandems are marked every 2 cm over a 12 cm range.  Optional items available include Tungsten Dummy Sources (Item 985-030) and Cesium137 Tube Sources (Items 067-6510 to 067-6540).

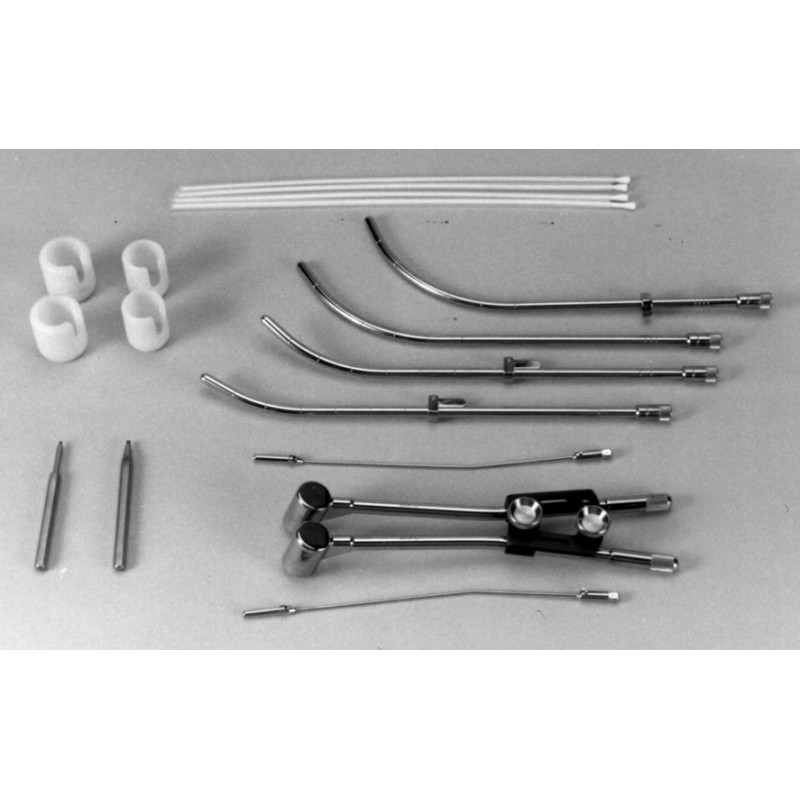

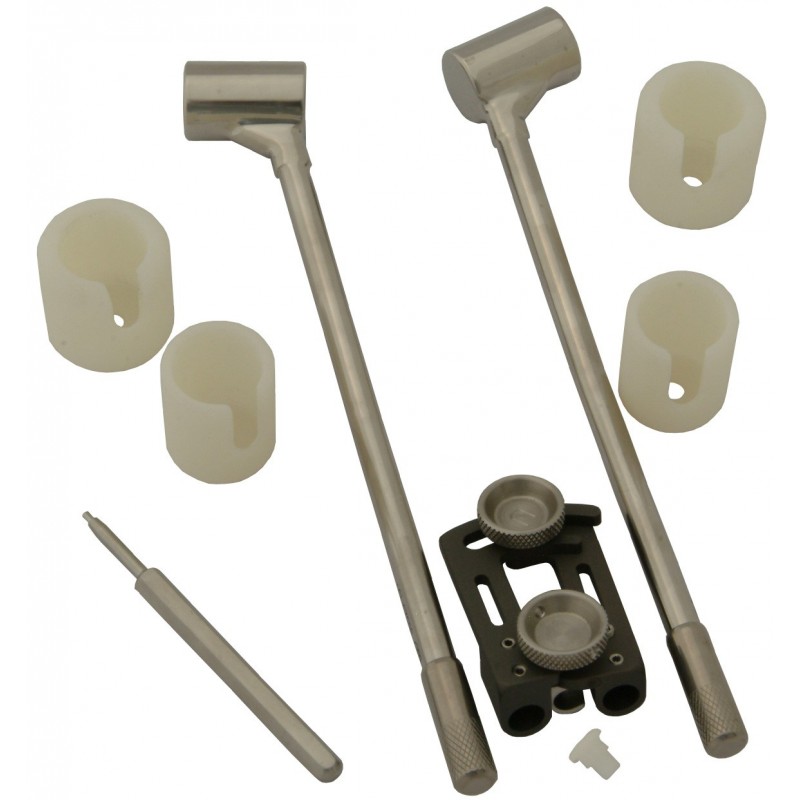

FSD Shielded Round Ovoid Long Handle Applicator Includes:

(1)  Applicator with Bracket Pivot and Two Bucket Carriers

(2)  2.5 cm Diameter Nylon Ovoid Cap

(2)  3.0 cm Diameter Nylon Ovoid Cap

(4)  Stainless Steel Tandems and Caps (15°, 30°, 45°, and 60°)

(1)  Cervical Stop

(2)  Flagged Cervical Stops

(1)  3/32" Allen Wrench

(1)  1/16" Allen Wrench

(4)  Plastic Tandems and Pushers for Sources


Documents
  • 970-FSDBracketPivot
    FSD Shielded Round Ovoid Long Handle Applicator with Bracket Pivot and Tandem Support Hook Set
